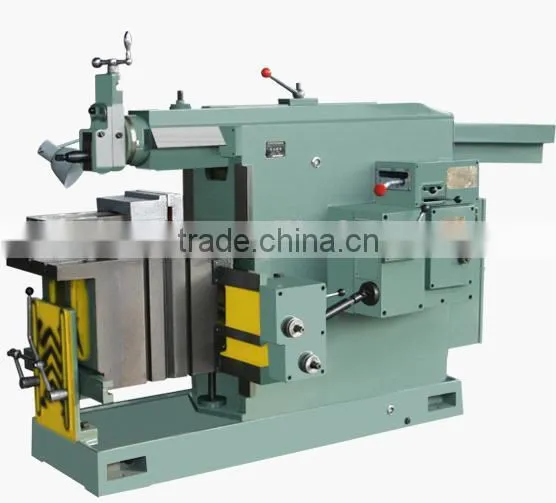

Help CenterSHAPING MACHINE
Related Products
With smooth transmission, short over run and less consume of power, the machine is easy to start and stop.
If being provided with a tool lifter, the machine table can obtain rapid motion in vertical and horizontal direction.
The machine, with pleasing appearance and stable accuracy, can be operated and maintained conveniently.
Specification | Unit | SM-630 | |
Max. planing length | mm | 630 | |
Max. distance between ram bottom and worktable surface | mm | 385 | |
Max. horizontal travel distance of worktable | mm | 630 | |
Max. vertical travel distance of worktable | mm | 360 | |
Worktable size | mm | 630x400 | |
Travel of tool head | mm | 120 | |
Number of ram strokes/min | mm | 14, 20, 28, 40, 56, 80 | |
Max. swivel angle of the toolhead | ° | ±60° | |
Max. section of tool(WxT) | mm | 20x30 | |
Range of table power speed | Horizontal | mm | 0.2-2.5 12steps |
Vertical | mm | 0.08-1.00 12steps | |
T-slot width | mm | 18 | |
Main motor power | kw | 3 | |
Overall dimension(LxWxH) | mm | 2342x1225x1480 | |
N.W/G.W | kg | 1750/1800 | |
