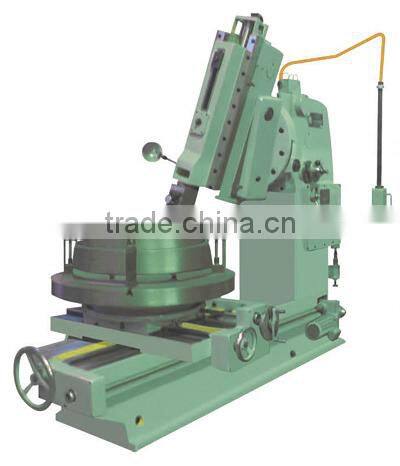

Universal Hydraulic Slotting Machine

Universakl Hydraulic Slotting Machine

C-BHW320

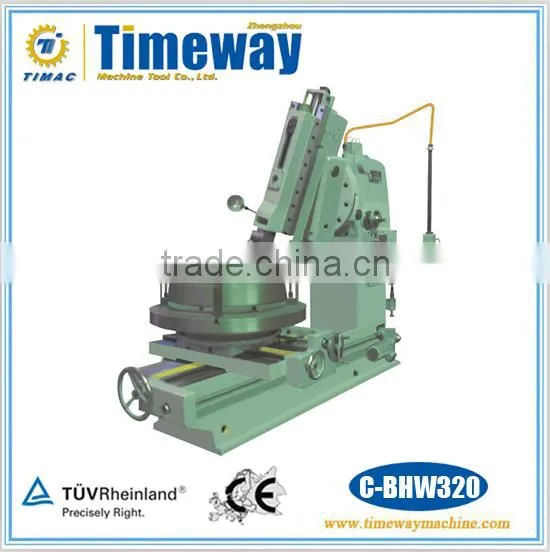

Machine Summary

• C-BHW320 hydraulic slotting machine is a universal hydraulic slotting machine that is designed and improved on the basis of my factory production C-BH320 hydraulic slotter. It has all processing performances of ordinary slotting machine, and can process some special workpieces through adjusting the ram and making slide block left-right to swing 0-15°in the rotary carriage, so more widely expand the range of slotting machine machining. Such as slotting internal cone, external cone, the inner cone helical and outer cone helical. To meet some special technical requirements of parts processing.

Applications and Features

• The machine is used for slotting flat surface, formed surface(including cambered surface) and keyway of various parts, and slotting inclination in the range 0deg. to 11deg. mould etc. suitable for single piece or small batch production.
• The worktable has three different directions feed(longitudinal, transverse and rotary direction), so can process continously multi surfaces on the machine after a clamping of workpiece.
• Equipped with hydraulic transmission mechanism for ram reciprocating movement and worktable hydraulic feeding device. The speed of ram is constant in pre-reciprocating movement, the ram speed and feeding speed can adjust steplessly.
• Hydraulic control console has changement for ram reversing, the worktable not only can hydraulic and manual feeding, but also can longitudinal, transverse and rotary moving fast by a separate motor driving.
• The slotting machine with hydraulic feeding is instantaneous feed when the work end turn back in a reciprocating movement, so it is superior to mechanical slotting machine with drum feeding.

Technical Parameter
