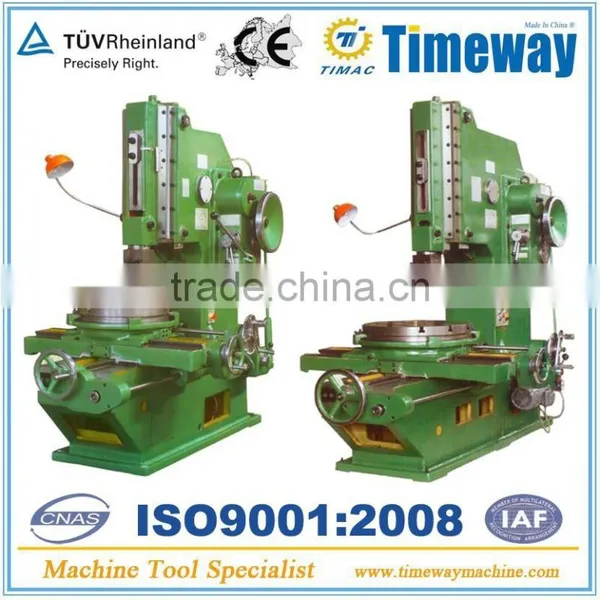

Popular Vertical Planing Machine 200mm 320mm Slotter
- 300 Set / Sets per Month
- China Port
- T/T Credit Card
- vertical metal slotting machine BC5063 with CE standard factory direct sell
- factory direct sell vertical metal slotting machine BK5032 with CE standard
- factory direct sell vertical metal slotting machine BK5035 with CE standard
- vertical metal slotting machine BC50100 factory direct sell
- Heavy Duty BC50125 Metal Slotting Machine with CE from China Factory
- factory direct sell vertical metal slotting machine BK5030 with CE standard
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | TIMAC |
Model Number: | B-200 B-200D B-320 B-320D | Voltage: | As Buyer's Request | Power(W): | 3/4KW |
Certification: | ISO, CE | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Slotting Machine / Vertical Planing Machine
Features:
1. This machine tool is used process planes, surfaces, key seating, etc, and it is suitable for the single-piece or small-batch production workshop.
2. The main transmission mechanism is to transmit the throw-over motion of the rocker arm into the to-and-fro motion of the ram the operating plant form can move vertically and horizontally and revolve it is able to achieve automatic feed and hand operating feed Also it can move fast in case of breakdown, the platform will automatically stop feeding and achieve limit safety.
3. When the machine tool is started, stop using electromagnetic clutch so as to achieve concentration operation of the machine tool.
4. This machine is carefully designed and it is characteristic of standardization, generalization, serialization, high degree automation, also it is of reasonable distribution, compact structure, well-balanced proportion, good outer looks and convenient maintenance.
5. The lubrication of the machine tool is brought by the oil pump, and lubrication oil is transmitted to various points by the oil-transmitting rubes with convenient adjustment.
6. The electric equipment of the machine tool is fixed in the bed at the back part of the lower bed it is safe and reliable because there are concentrated push buttons in the upper bed.
7. As for other power source conditions raised by the customer. Special orders of goods supply can be affected through negotiation.
Specification | Unit | B-200 | B-200D | B-320 | B-320D |
Max. slotting length | mm | 200 | 200 | 320 | 320 |
Max. dimensions of workpiece(L×H) | mm | 485×200 | 485×200 | 600×320 | 600×320 |
Max. weight of workpiece | kg | 400 | 400 | 500 | 500 |
Max. cutting force | N | 5500 | 5500 | 7500 | 7500 |
No. of strokes per minutem | mm | 32,50,80,125 | 32,50,80,125 | 20.32.50.80 | 20.32.50.80 |
Vertical ajustment of ram | mm | 230 | 230 | 315 | 315 |
Inclination of ram | 0-8deg | 0-8deg | 0-8deg | 0-8deg | |
Distance between tool holdingsurface and column front | mm | 485 | 485 | 600 | 600 |
Max.tool shank size (W×H) | mm | 25×40 | 25×40 | 25×40 | 25×40 |
Table diameter | mm | 500 | 500 | 630 | 630 |
Distance between table surface and low end of ram | mm | 320 | 320 | 490 | 490 |
Max.longitudinal travel of table | mm | 500 | 400/450 | 620 | 480/620 |
Max. cross travel of table | mm | 500 | 450/500 | 560 | 480/560 |
Max. rotary angle of table | 360deg | 360deg | 360deg | 360deg | |
Range of table longitudinal and cross power feeds | mm | 0.08-1.12 | 0.08-1.21 | 0.08-1.12 | 0.08-1.21 |
Range of table power feeds | 0.052-0.783deg | 0.052-0.783deg | 0.052-0.7893deg | 0.052-0.783deg | |
Power of main drive motor | kw | 3 | 3 | 4 | 4 |
Rotating speed of rapid main drive motor | rpm | 1430 | 1430 | 960 | 960 |
Power of rapid feed drive motor | kw | - | 0.75 | - | 0.75 |
Rotating speed of rapid feed drive motor | r.p.m | - | 910 | - | 910 |
Overall dimensions (L*W*H) | mm | 1945x1325 x1980 | 18355x1305 x1980 | 2290x1525 x2285 | 2180x1505 x2285 |
Weight(approx) | kg | 2400 | 2400 | 3500 | 3500 |
