DB-800A Heavy Duty Deep Hole Boring Machine for Hydraulic Cylinder
US$ 50,000 - 300,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Production Capacity:
100Sets/year
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Deep Hole Knee-type Drilling Machine (CNC Gun Drill)US$ 10,000 - 100,000MOQ: 1 Set -
CNC Horizontal Drilling and Grinding Machine For Quartz-GlassUS$ 10,000 - 150,000MOQ: 1 Set
-
Economical CNC Horizontal Quartz Glass Deep Hole Driller and GrinderUS$ 10,000 - 150,000MOQ: 1 Set
-
Horizontal Deep Hole Boring MachineUS$ 20,000 - 200,000MOQ: 1 Set
-
DB-2000A Super Large Deep Hole Boring Machine for Large CylinderUS$ 100,000 - 500,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Production Capacity
100Sets/year
Brand Name
TIMAC
Model Number
DB-800 DB-800A
Voltage
380V/50HZ
Power(W)
As actual situation
Dimension(L*W*H)
As actual situation
Weight
As actual situation
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Heavy Duty Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
DB-800 DB-800A
Main Outlook
Summary
Machine Summary
- DB-800A machine is mainly for processing of heavy duty cylindrical parts, such as drilling, boring, expanding, roller burnishing and trepanning, etc.
- The workpiece is kept slowly rotating, the tool is rapidly rotary while feeding. Besides machining through-hole, it can also process step hole and blind hole.
- This machine is used in a wide range, the process type can be chosen based on the actual demand.
Main Performances
Performance and Features
- When drilling, the machine adopts BTA internal chip removal type, the oil feeder supplies the cutting liquid to remove the chips out of the end of drill bar. When push-boring, the cutting liquid reaches cutting area through small hole of oil feeder or big hole at the end of boring bar.
- The chip is flushed out of headstock end. When trepanning, the special tool, tool bar and clamping device should be equipped, the chip is discharged by the external removal type.
- This machine is assembled with drill box, which achieves double rotation of workpiece and tool, the single action is also available based on the actual demand. When the workpiece needs a lower rotary speed, the process efficiency and quality can be assured.

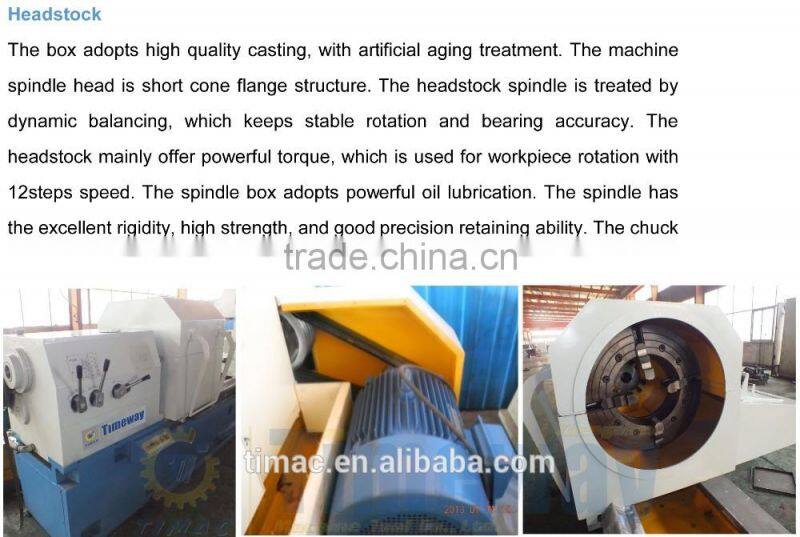

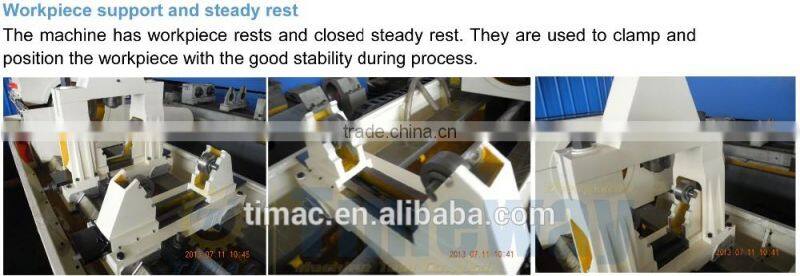

- The headstock adopts heavy duty four-jaw chuck to lock the workpiece, the steady rest is for supporting and the oil feeder is for clamping by hydraulic pressure. The oil feeder adopts the principal axis structure which improves the load-capacity and rotation accuracy. The bed body has an excellent rigidity, good wear-resistance and high precision retaining ability. The tool feeding adopts AC servo motor to realize stepless speed regulation. The headstock uses DC motor with stepless speed regulation. The drill box is driven by large power motor, with speed regulating by gear shift.
- The hydraulic system has an accurate control when clamping and fixing the workpiece, which has a high stability and precision. All the operation parameters are shown by meter display, the workpiece clamping and the operation is very safe, rapid and stable. The machine adopts PLC control with human-machine interface, it is easy to be operated.
- DB-800 is equipped with workhead box, but isn't equipped with boring box or drilling box; DB-800A add to boring box or drilling box on the basis of the DB-800, so higher efficiency machining deep hole for cylindrical workpieces.
Specifications List
Technical Parameters
| Technical specification | Unit | DB-800 | DB-800A |
| Drilling diameter range | mm | / | Φ60-Φ150 |
| Boring diameter range | mm | 800 | 800 |
| Boring depth range | mm | 1000-15000 | 1000-15000 |
| Workpiece clamping dia. range | mm | 320-1250 | 320-1250 |
| Spindle center height | mm | 1000 | 1000 |
| Rotation speed range of headstock spindle | r/min | 3-120 | 3-120 |
| Spindle front taper hole dia. | Φ130 | Φ130 | |
| Spindle taper | Metric 140# | Metric 140# | |
| Drill box motor power | kw | / | 30 |
| Drill box spindle hole | mm | / | 130 |
| Drill box front taper hole | mm | / | Φ85 1:20 |
| Drill box speed range | r/min | / | 16-270 |
| Feed speed range (stepless) | mm/min | 5-2000 | 5-2000 |
| Feed carriage rapid speed | m/min | 2 | 2 |
| Feed motor power | kw | 11 | 11 |
| Feed carriage rapid motor power | Nm | 36 | 36 |
| Hydraulic pump motor power | kw | 1.5 | 1.5 |
| Hydraulic system rated pressure | MPa | 6.3 | 6.3 |
| Cooling pump motor power | kw | 7.5 (2groups); 5.5(1 group) | 7.5 (2groups); 5.5(1 group) |
| Cooling system rated pressure | MPa | 2.5 | 2.5 |
| Cooling system flow | L/min | 300, 600, 900 | 300, 600, 900 |

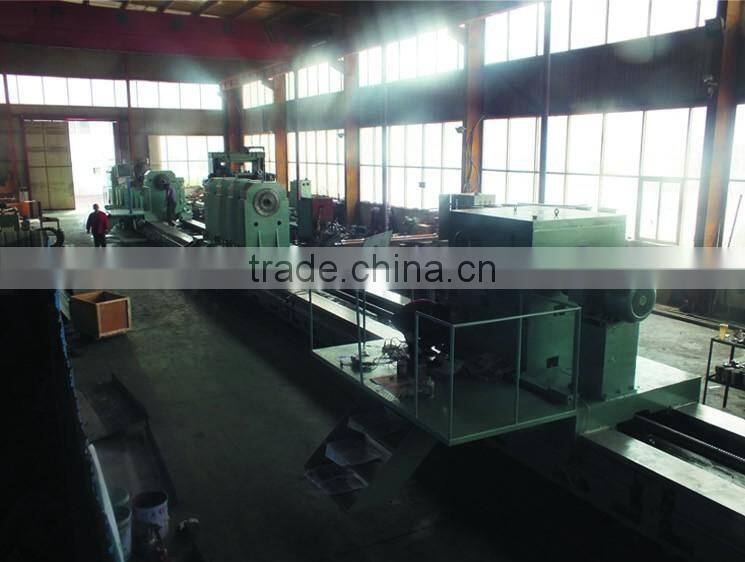

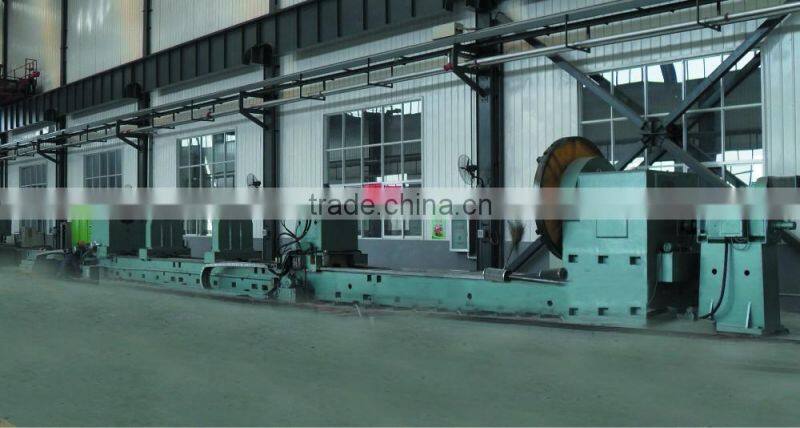

Main Images

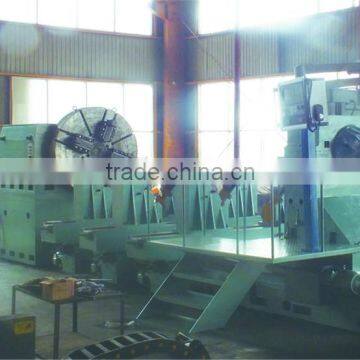

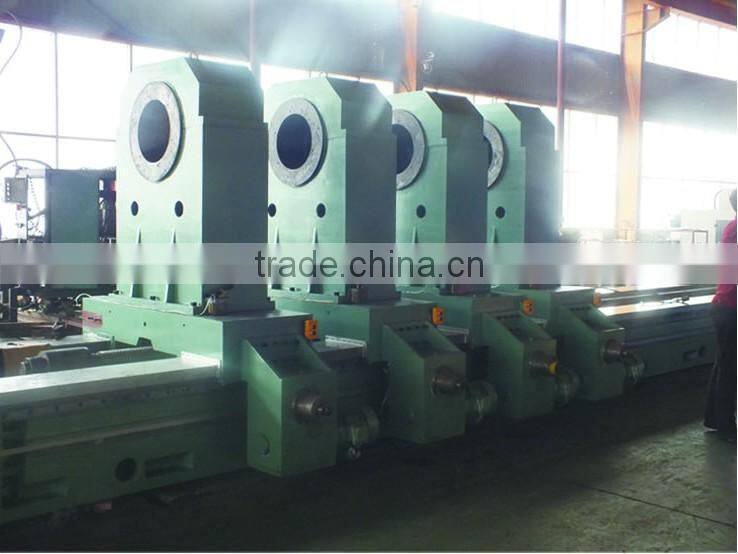

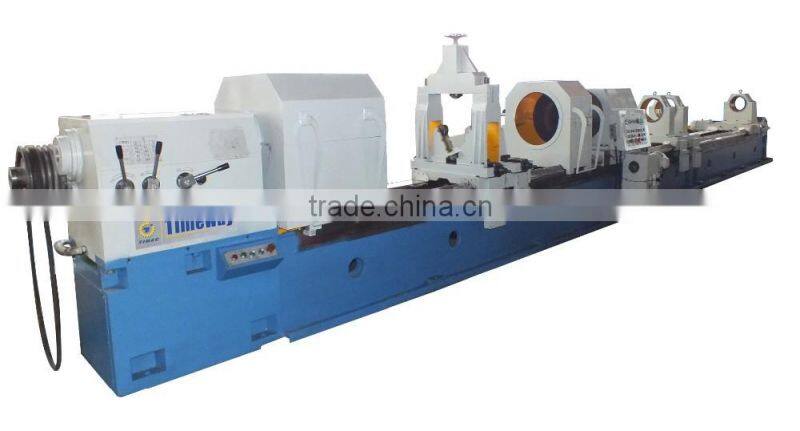

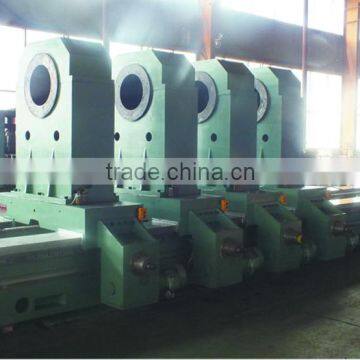

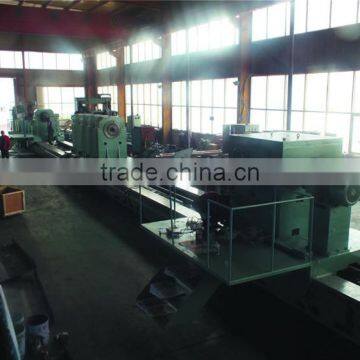

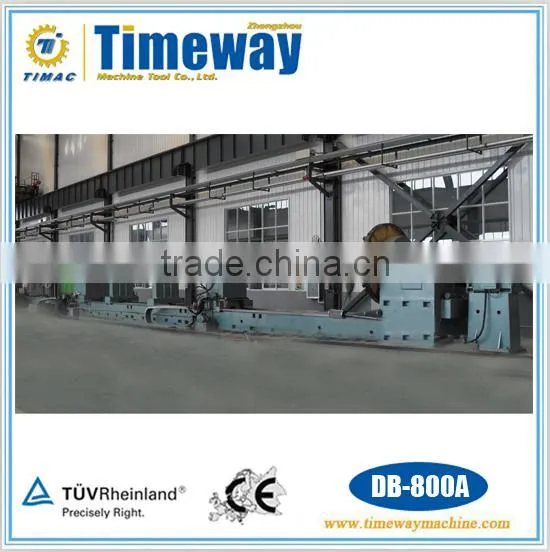

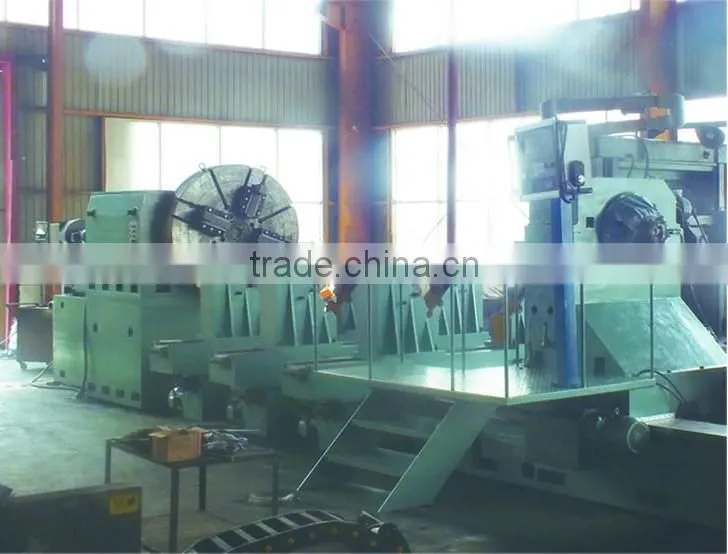

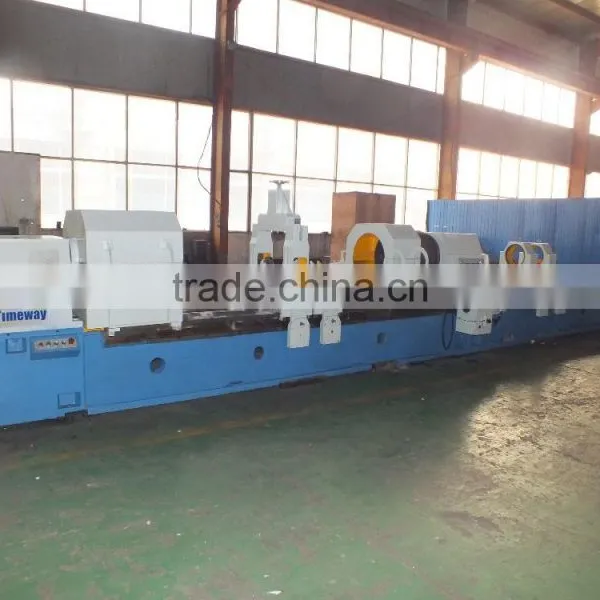

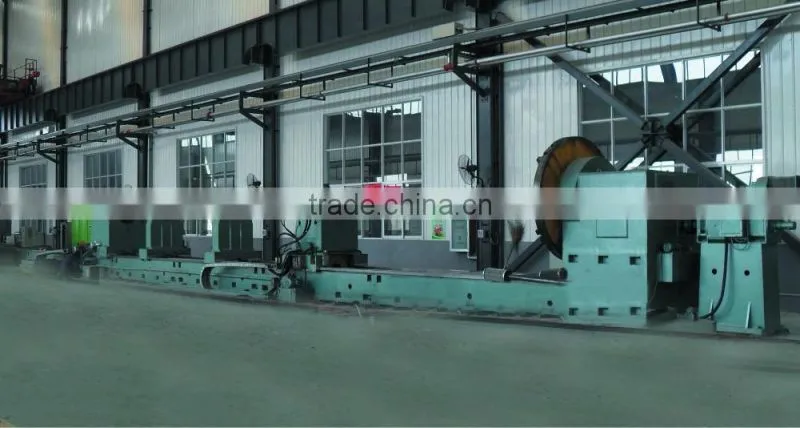

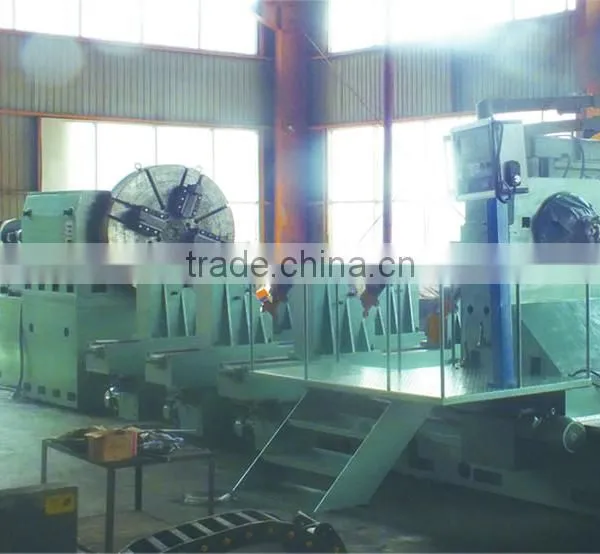

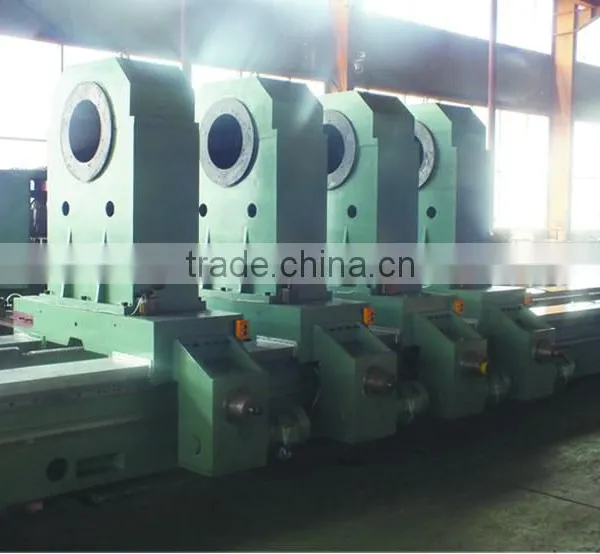

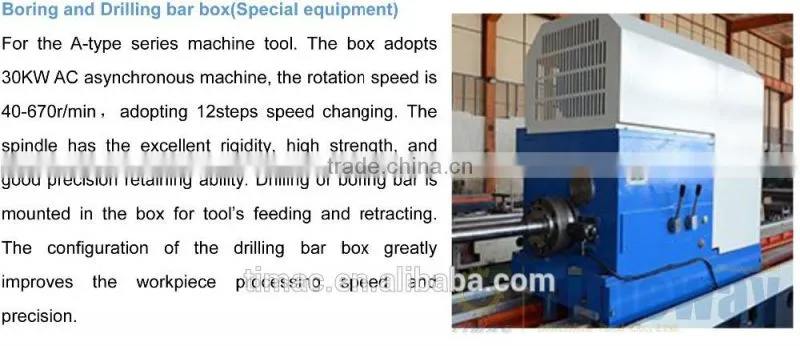

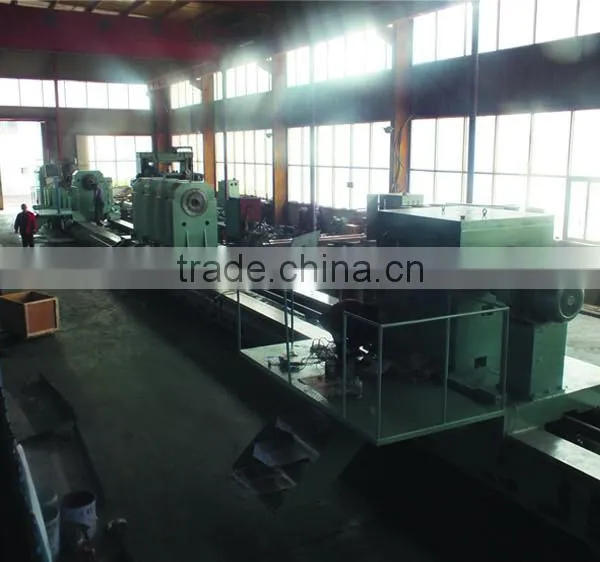

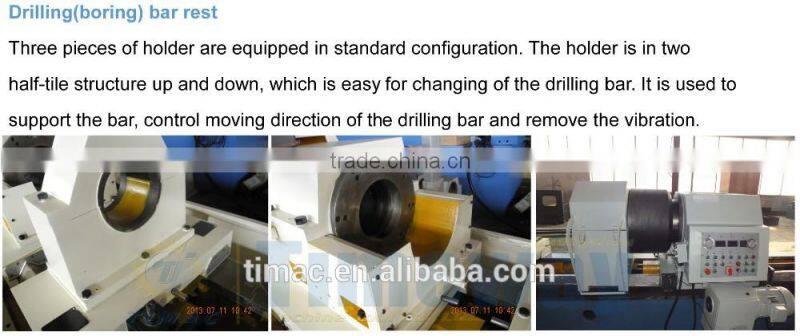

The similar machine consists of bed body, headstock, drilling and boring box (optional), chuck body, feed carriage, oil feeder, cooling system, chip removal device, steady rest, hydraulic system, boring bar support, motor and electrical system, etc.
Packaging & Shipping
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
- About some heavy-duty and super large machine tools, we can need disconnect the machine, then separate packing.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
