CNC Horizontal Drilling and Grinding Machine For Quartz-Glass

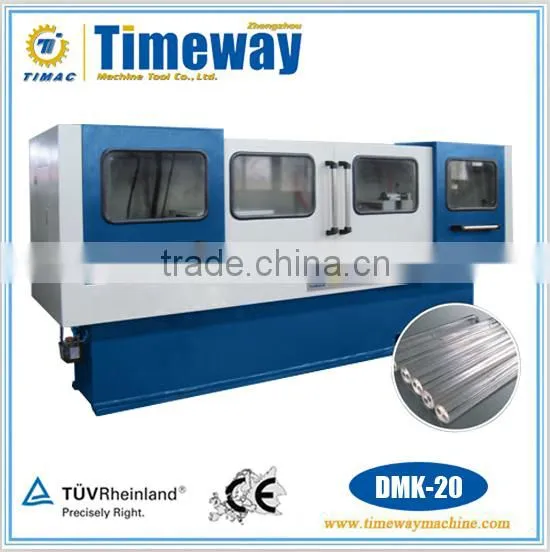

DMK-20 DMK-80E
Application
The machine is suitable for optical fibre abd cable, it can cutting certain-size deep hole according to the requirements of a specific location on certain diameter of high purity quartz glass rod.
Technical Parameter
Specification | Unit | DMK-20 |
Drilling diameter range | mm | Φ10-20 |
Max. drilling depth | mm | 1050 |
Spindle center height | mm | 175 |
X-axis travel | mm | 100 |
Drilling-bar box spindle speed | rpm | 4000-12000 |
Feed speed range | mm/min | 0-500 |
Rapid feed speed | mm/min | 2000 |
Z-axis feed motor torque | N.m | 6.36 |
Z-axis feed motor power | kw | 2 |
X-axis feed motor torque | N.m | 7.5 |
X-axis feed motor power | kw | 1.5 |
Drilling-bar box motor power | kw | 3.5 |
Oil pump motor power | kw | 4 |
Total power | kw | 15 |
CNC system | - | KND 100Ti |
Max. cooling system pressure | Mpa | 1.5 |
Coolant flow | L/h | 1500 |
Coolant filtration precision | um | 20 |
Machine dimension(LxWxH) | mm | 3710x2700x1700 |
Machine weight | kg | 6000 |
Specification | Unit | DMK-80E |
Drilling diameter range | mm | 83 |
Max. drilling depth | mm | 1500 |
Max. diameter of workpiece | mm | 200 |
Drilling-bar box spindle speed | rpm | 3000 |
Workpiece speed range | rpm | 0-20 |
Max. cooling system pressure | Mpa | 1.5 |
Coolant flow | L/h | 1500 |
Hydraulic system pressure | Mpa | 6 |
Hydraulic system power | kw | 2.2 |
Feed motor power | kw | 4.2 |
Main motor power | kw | 5.5 |
Coolant power | kw | 4 |
CNC system | - | KND 1000Ti |
Machine dimension(LxWxH) | mm | 5000x1400x1600 |
Machine weight | kg | 8000 |
