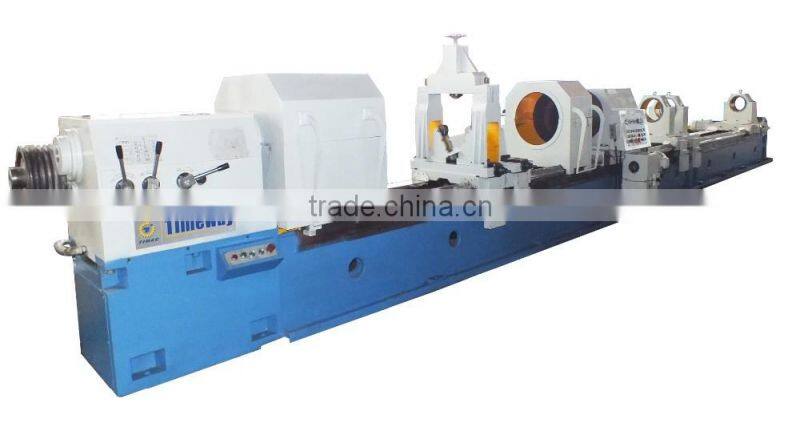

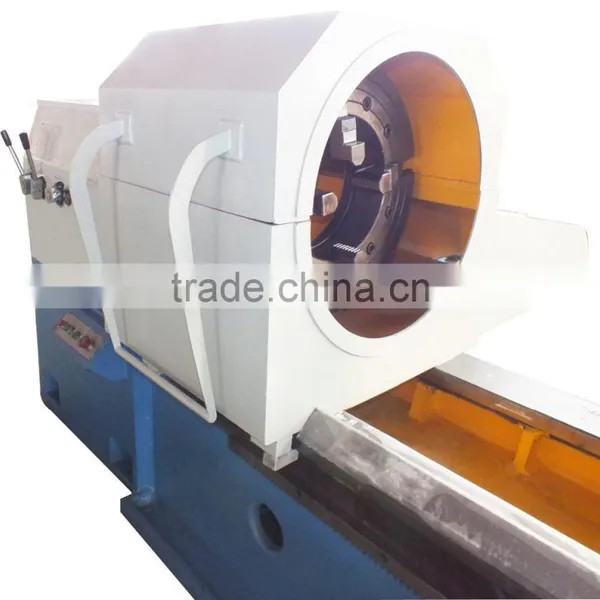

HORIZONTAL DEEP HOLE BORING MACHINE

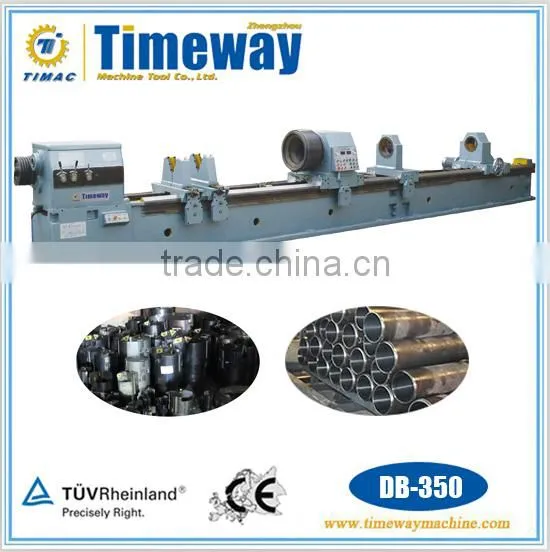

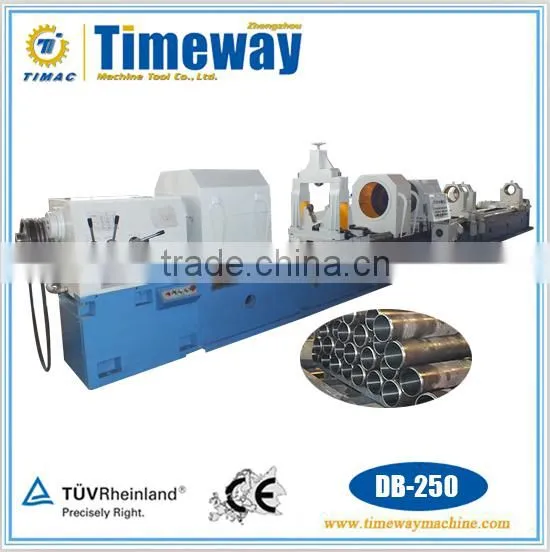

DB-250 DB-350
FEATURES:
1. The machine is special equipment for machining deep cylindrical hole of workpieces.
2. It can be perfectly suited for drilling and boring through holes, blind and step holes in workpieces, Such as, spindle of various kinds of machines, many kinds of hydraulic oil cylinders and cylinders.
3. It can perform not only boring but also rolling pressing.
4. The method of the forward-removal chip is adopted in boring, forward is adopted during boring.
5. The machine is strong in rigidity of the bed, high in precision, and wide in spindle speed range.
6. Feed system is driven by Japan YASKAWA AC Servo feeding motor.
7. It is suitable for various processing methods of machining deep holes.

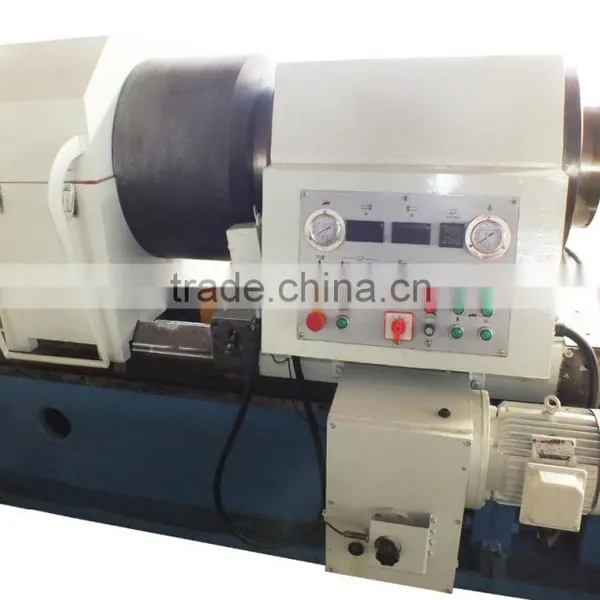

8. Fixture of the guide carriage and clamping force of the workpiece are performed by hydraulic device and indicated by meter.
9. Deep hole boring machine model DB-250/DB-350 are a kind of special machine for boring cylindrical workpiece.
10. It can be perfectly suited for boring through holes and step holes in workpiece.
11. The method of the forward-removal chip is adopted in boring and they are suited for mass production individualized production and small-lot production.
12. Various change-model products of the series can be supplied according to user’s requirement.
MAIN SPECIFICATION:
Specification | DB-250 | DB-350 |
Max. boring dia. | 250mm | 350mm |
Max. boring depth | 1000-8000mm | |
Workpiece clamped dia. range | 60-330mm | 220-450mm |
Height from spindle center to bed | 350mm | 450mm |
Spindle bore diameter | 75mm | |
Taper of spindle bore | 85mm 1:20 | |
Range of spindle speed | 40-500r/min 11kinds | |
Feed speed range (infinte) | 5-1000mm/min (stepless) | |
Carriage rapid-moving speed | 2m/min | |
Main motor power | 30kW | |
Hydraulic pump motor power | 1.5kW | |
Carriage rapid motor power | 3kW | |
Feed motor power | 4.4kW | |
Cool pump motor power | 5.5kW 4group | 5.5kW 3group |
Rated pressure for cooling system | 2.5MPa | 0.36MPa |
Flow of cooling system | 100 200 300 400L/min | 300 600 900L/min |
Rated working pressure for hydraulic system | 6.3MPa | |
OVERALL DIMENSIONS AND WEIGHTS:
Length (mm) | DB-250 | DB-350 | ||||
Floor space(L×W×H) (mm) | Net weight (t) | Gross weight (t) | Floor space (L×W×H) (mm) | Net weight (t) | Gross weight (t) | |
1000 | 7948×3150×1550 | 12 | 13 | 7980×3500×1850 | 12.7 | 13.6 |
2000 | 9948×3150×1550 | 14.5 | 15 | 9980×3500×1850 | 15.1 | 16.4 |
3000 | 11948×3150×1550 | 16.3 | 17 | 11980×3500×1850 | 16.8 | 18.2 |
4000 | 13948×3150×1550 | 18.8 | 20 | 13980×3500×1850 | 19.1 | 20.7 |
5000 | 15948×3150×1550 | 20.6 | 22 | 15980×3500×1850 | 21.1 | 22.5 |
6000 | 17948×3150×1550 | 22.5 | 23 | 17980×3500×1850 | 22.5 | 24.4 |
7000 | 19948×3150×1550 | 24.5 | 25 | 19980×3500×1850 | 24.2 | 26.2 |
8000 | 21948×3150×1550 | 26.2 | 28 | 21980×3500×1850 | 26.4 | 29.6 |
The machine consists of bed body, headstock, drilling and boring box (optional), chuck body, feed carriage, oil feeder, cooling system, chip removal device, steady rest, hydraulic system, boring bar support, motor and electrical system, etc.
Packaging and Shipping:
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
