Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Economical CNC Horizontal Quartz Glass Deep Hole Driller and Grinder

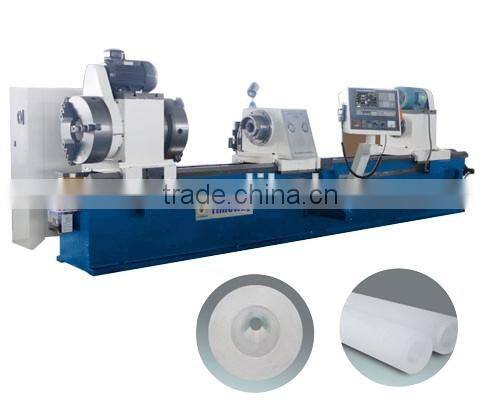

Economical CNC Horizontal Quartz Glass Deep Hole Driller and Grinder

Name: Economical CNC Horizontal Quartz Glass Deep Hole Driller and Grinder
Brand: TIMAC
SKU: 140796830
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Economical CNC Horizontal Quartz Glass Deep Hole Driller and Grinder thumbnail-1

Economical CNC Horizontal Quartz Glass Deep Hole Driller and Grinder photo-1

US$ 10,000 - 150,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Drilling Speed:

8-12mm/min

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Drilling Speed 8-12mm/min

Brand Name TIMAC

Model Number DMK-80E

Voltage 380V/50Hz

Power(W) 16kw

Dimension(L*W*H) 5000x1400x1600mm

Weight as actual situation

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

CNC Economical Horizontal Quartz Glass Deep Hole Driller and Grinders

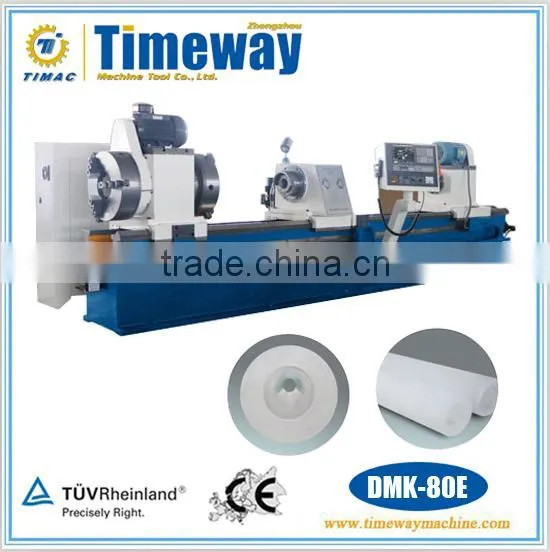

DMK-20 DMK-80E

Main Outlook

Product Description

Application

The machine is suitable for optical fibre abd cable, it can cutting certain-size deep hole according to the requirements of a specific location on certain diameter of high purity quartz glass rod.

Technical Parameter

Specification	Unit	DMK-20
Drilling diameter range	mm	Φ10-20
Max. drilling depth	mm	1050
Spindle center height	mm	175
X-axis travel	mm	100
Drilling-bar box spindle speed	rpm	4000-12000
Feed speed range	mm/min	0-500
Rapid feed speed	mm/min	2000
Z-axis feed motor torque	N.m	6.36
Z-axis feed motor power	kw	2
X-axis feed motor torque	N.m	7.5
X-axis feed motor power	kw	1.5
Drilling-bar box motor power	kw	3.5
Oil pump motor power	kw	4
Total power	kw	15
CNC system	-	KND 100Ti
Max. cooling system pressure	Mpa	1.5
Coolant flow	L/h	1500
Coolant filtration precision	um	20
Machine dimension(LxWxH)	mm	3710x2700x1700
Machine weight	kg	6000

Specification	Unit	DMK-80E
Drilling diameter range	mm	83
Max. drilling depth	mm	1500
Max. diameter of workpiece	mm	200
Drilling-bar box spindle speed	rpm	3000
Workpiece speed range	rpm	0-20
Max. cooling system pressure	Mpa	1.5
Coolant flow	L/h	1500
Hydraulic system pressure	Mpa	6
Hydraulic system power	kw	2.2
Feed motor power	kw	4.2
Main motor power	kw	5.5
Coolant power	kw	4
CNC system	-	KND 1000Ti
Machine dimension(LxWxH)	mm	5000x1400x1600
Machine weight	kg	8000
