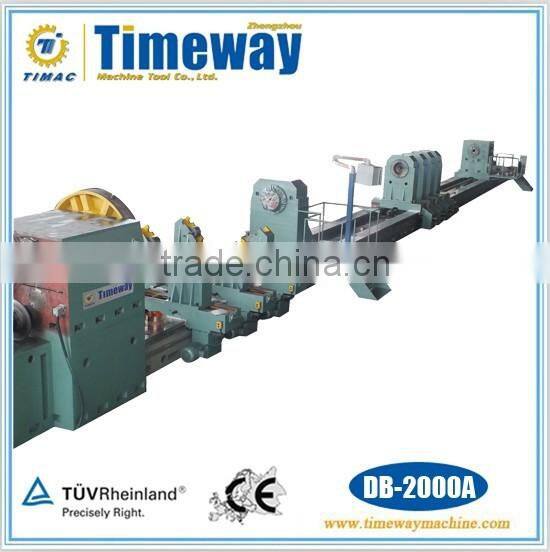

DB-2000A Super Large Deep Hole Boring Machine for Large Cylinder
US$ 100,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Production Capacity:
50Sets/year
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Deep Hole Honing MachineUS$ 10,000 - 100,000MOQ: 1 Set -
DDK-30C Universal CNC Bed-type Gun Drilling Machine For Deep HoleUS$ 10,000 - 150,000MOQ: 1 Set
-
DHK-800 Strong CNC Deep Hole Honing MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
CNC Hole Honing Machine For Inner CylinderUS$ 10,000 - 90,000MOQ: 1 Set
-
DHK-350 Automatic High Efficiency Deep Hole Pipe Honing MachineUS$ 10,000 - 150,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Production Capacity
50Sets/year
Brand Name
TIMAC
Model Number
DB-2000A
Voltage
380V/50HZ
Power(W)
As actual situation
Dimension(L*W*H)
As actual situation
Weight
As actual situation
Certification
CE ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Super Large Deep Hole Boring Machine For Hydraulic Cylinder
DB-2000A
Main Outlook
Main Performances
Performance and Features:
- DB-2000A heavy duty deep hole boring machine is specially for processing of large and heavy duty cylindrical workpiece.
- The machine body has the strong rigidity and good precision retaining ability. The spindle adopts three shifts with stepless speed regulation (high, neutral, low) in a wide range.
- Feed system is driven by large power AC servo motor, which meets the different processing demands.
- The oil feeder clamps the workpiece by mechanical device, which is very safe and reliable.
- The machine can perform boring of heavy duty components in a large diameter. When boring, the cutting liquid is supplied to cutting area through boring bar, and the chip is discharged forward to headstock end. When trepanning, the external chip removal mode is used, and the special tool, tool bar and clamping device should be equipped.
- The machine consists of bed body, headstock, oil feeder, feed system, steady rest, workpiece support, boring bar support, feed carriage, cooling system, hydraulic system and electric system, etc.
Technical Parameters:
| Specifications | Unit | DB-2000A |
| Boring diameter range | mm | Φ320-Φ2000 |
| Boring max. depth | mm | 1000-20000 |
| Workpiece clamping diameter range | mm | 500-2100 |
| Guideway span width | mm | 1600 |
| Machine spindle center height | mm | 1300 |
| Rotation speed range of headstock spindle | r/min | 0.8-80 (three gear shifts, stepless) |
| Spindle hole diameter | mm | Φ130 |
| Spindle front taper hole | Metric 140# | |
| Headstock motor power | kw | 118 DC |
| Feeding speed range | mm/min | 0.5-450 (stepless) |
| Feeding carriage rapid speed | mm/min | 500 |
| Feed motor torque | Nm | 98 |
| Feed carriage rapid motor power | kw | 7.5 |
| Hydraulic pump motor power | kw | 1.5 |
| Hydraulic system rated pressure | MPa | 6.3 |
| Cooling pump motor power | kw | 11 (3 groups) |
| Cooling system rated work pressure | Mpa | 2.5 |
| Cooling system flow | L/min | 100, 400, 700 |
Main Images
The similar machine consists of bed body, headstock, drilling and boring box (optional), chuck body, feed carriage, oil feeder, cooling system, chip removal device, steady rest, hydraulic system, boring bar support, motor and electrical system, etc.
Packaging and Shipping:
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
- About some heavy-duty and super large machine tools, we can need disconnect the machine, then separate packing.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
