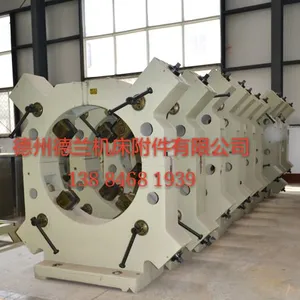

Deep hole drilling and boring machine annular center frame

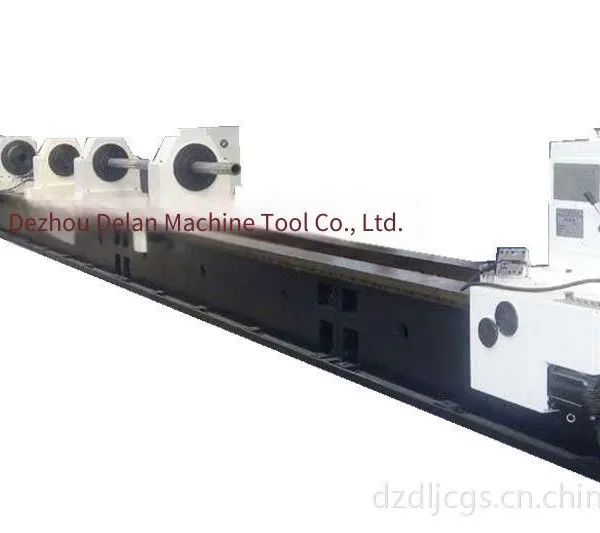

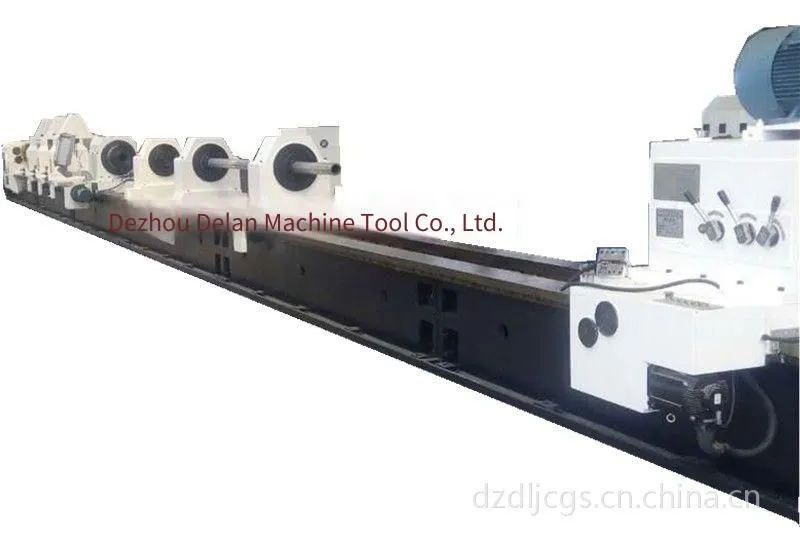

Machine tool purpose: This machine tool is a special machine tool for machining cylindrical deep hole parts. It is suitable for the boring of cylindrical deep hole workpieces. When boring, the oil feeder supplies oil, and the chips are discharged to the chip hopper at the headstock through the cutting area.
The machine tool is controlled by PLC. The reciprocating motion of the oil feeder and the feed carriage are both controlled by servo motors. The transmission adopts the rack transmission in the middle of the two guide rails, which ensures the accuracy and rigidity requirements of the feed transmission during the ultra - long motion. Protections are installed on both sides of the bed body, and the above - ground oil tank structure is adopted, which improves the machine tool environment. The machine tool can be equipped with two sets of automatic or manual expanding and contracting high - efficiency tools, which greatly improves the machining efficiency of the machine tool.
This machine tool is a deep hole boring machine with convenient operation and control, high efficiency and environmental protection.
Main technical parameters
Item name T2225G T2225G/1 T2236G T2236G/1 Boring diameter range Φ40mm～Φ250mm Φ80mm～Φ360mm Center height 400mm 500mm Boring depth range 1000～10000mm 1000～12000mm Chuck diameter 400mm 500mm Center frame clamping diameter range 50～400mm 100～500mm Spindle speed range and number of stages 50～800r/Min, three gears with 12 levels 50～800r/Min, three gears with 12 levels Main motor N=30kW N=30kW Feed speed range 5～2000mm/Min (stepless) 5～2000mm/Min (stepless) Feed motor N=4.5kW servo motor N=4.5kW servo motor Oil feeder motor N=4.5kW servo motor N=4.5kW servo motor Cooling pump motor 5.5KW; N=1440r/Min (4 groups) 7.5KW; N=1440r/Min (2 groups) Rated pressure of the cooling system 2.5MPa 0.5MPa Flow rate of the cooling system 100 200 300 400L/Min 800L/Min (0.5MPa) Standard accessories
If equipped with a variable frequency motor Spindle rotation range and levels 40～800r/Min, three gears stepless 40～800r/Min, three gears stepless Main motor N=37Kw variable frequency motor N=37Kw variable frequency motor T2225G/1 is equipped with a boring bar box of 15Kw and a rotation speed of 40-500r/Min T2236G/1 is equipped with a boring bar box of 15Kw and a rotation speed of 40-500r/Min
