Vertical and Horizontal Spindle Universal Turret Type Miller With Slotting

Name: Vertical and Horizontal Spindle Universal Turret Type Miller With Slotting
Brand: TIMAC
SKU: 140796642
Availability: InStock

US$ 6,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

TM500

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number TM500

Voltage 380V/50HZ

Power(W) 2.2kw(V/H)

Dimension(L*W*H) 1700*1500*2150mm

Weight 1550/1700kgs

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

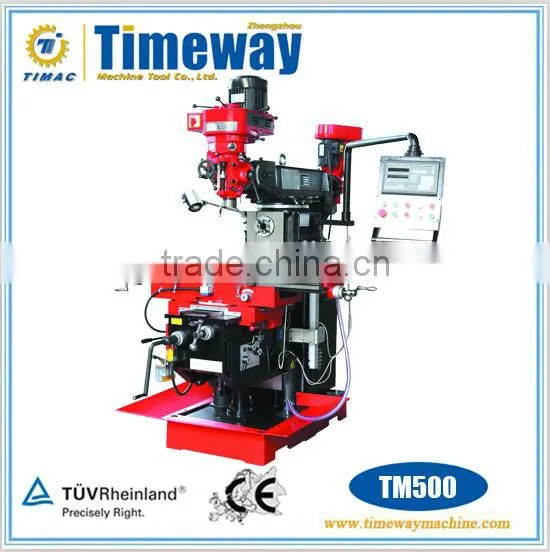

Vertical and Horizontal Spindle Uniersal Turret Type Miller with Slotting

TM500

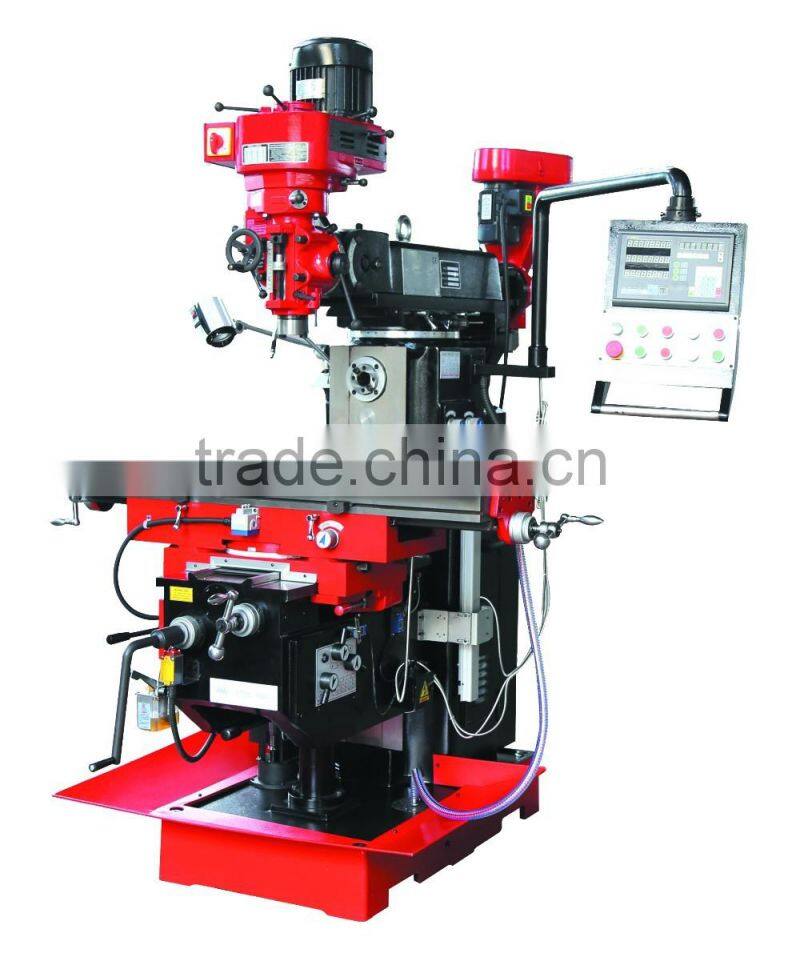

Main Outlook

Product Description

Features:

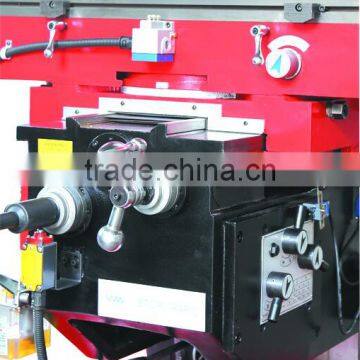

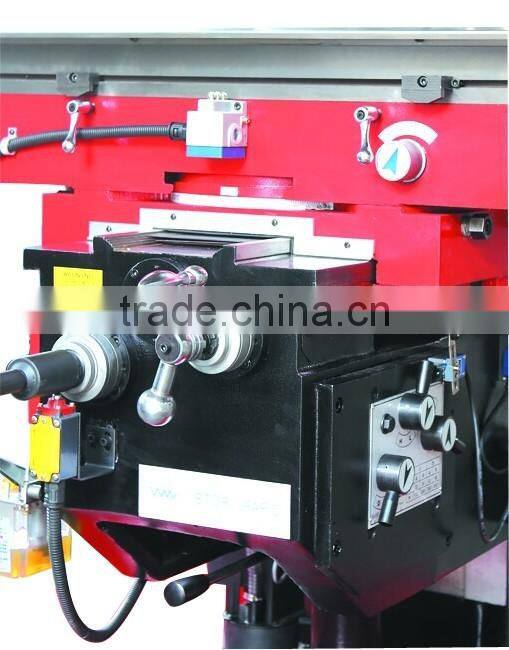

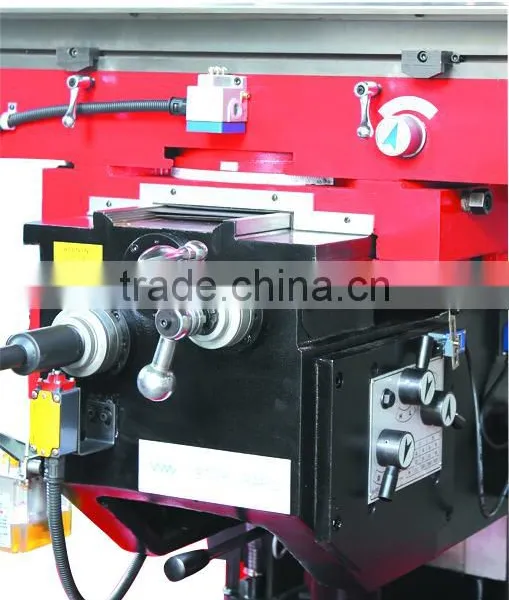

All 3-axes with automatic and rapid feeds.

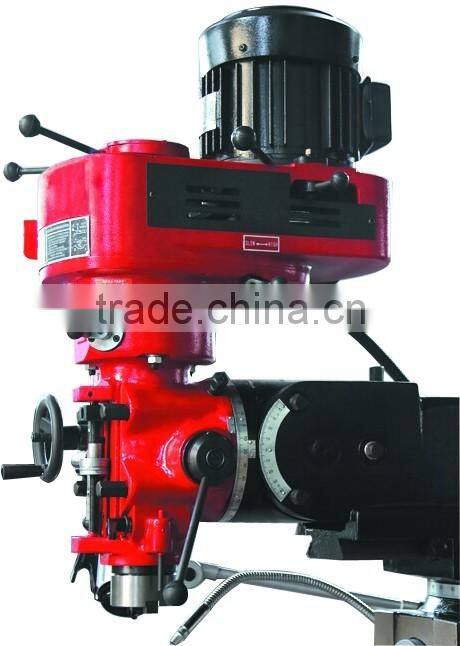

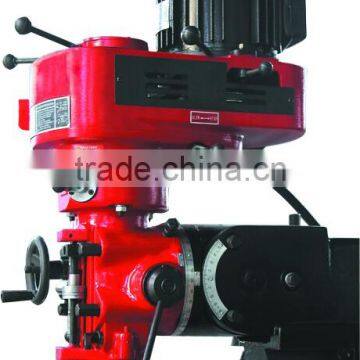

Vertical head swivels ±45°.
Spindle speeds for horizontal and vertical spindle controlled by separate switch, gears with oil-bath lubrication.
Automatic and manual vertical spindle quill feeds.
For horizontal spindle operations and slotting operations, the top beam can be completely rotated on the stand.
Adjustable ground dovetail guideways on the X-axis and Z-axis, and wide square guideways on Y-axis.
Worktable swivel ±45°.

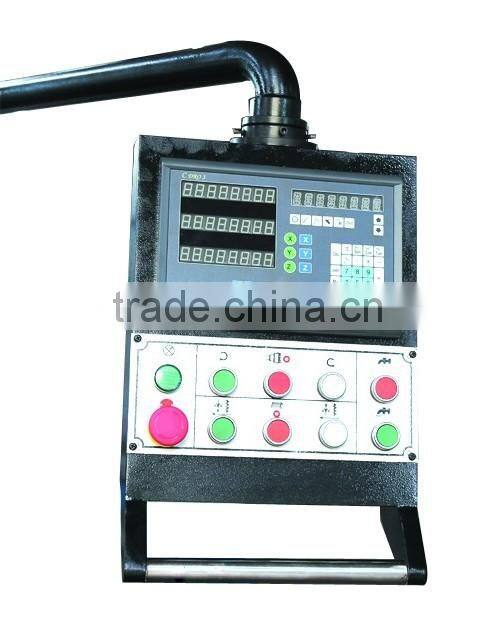

Equipped with DRO to convenient to observe and centralized operation panel.

This miller is a multi-purpose universal milling machine(vertical cutting and horizontal cutting and slotting function etc.)

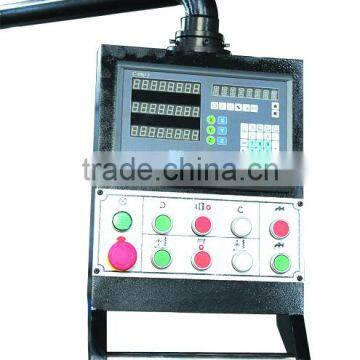

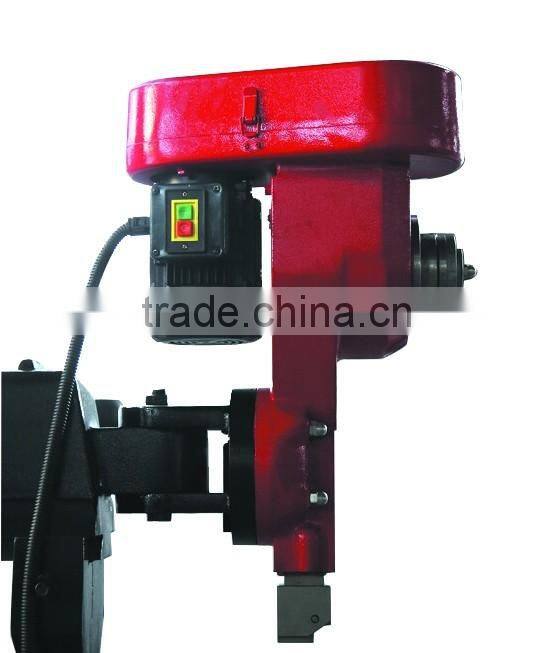

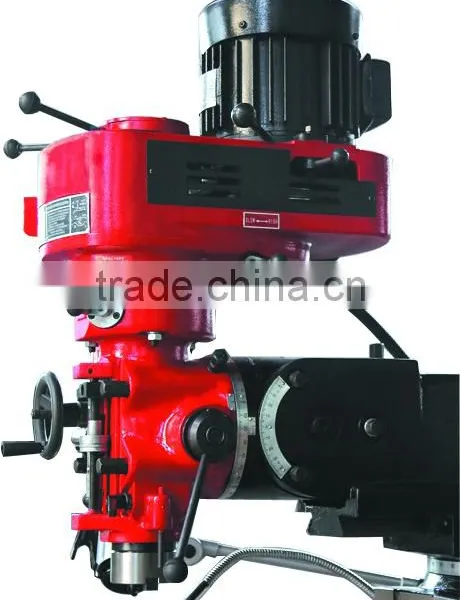

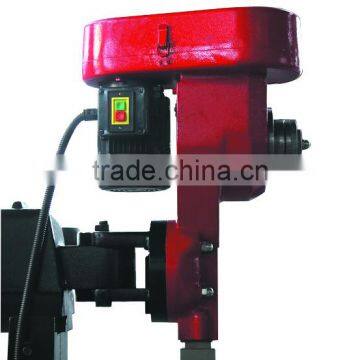

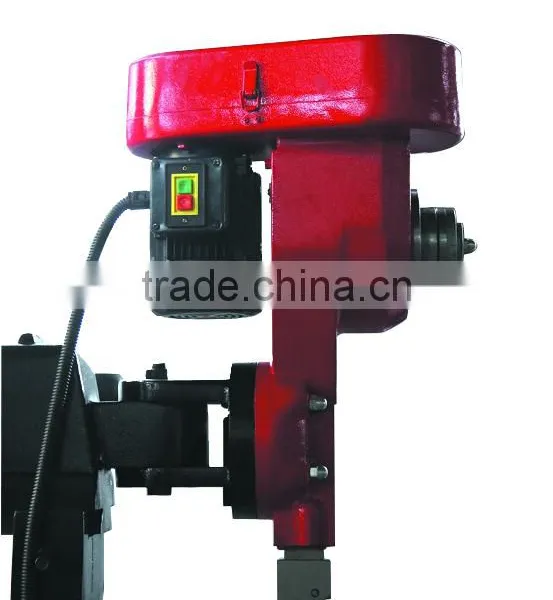

Milling head inclinable angle ±45° Slotting head(Rotated ram)

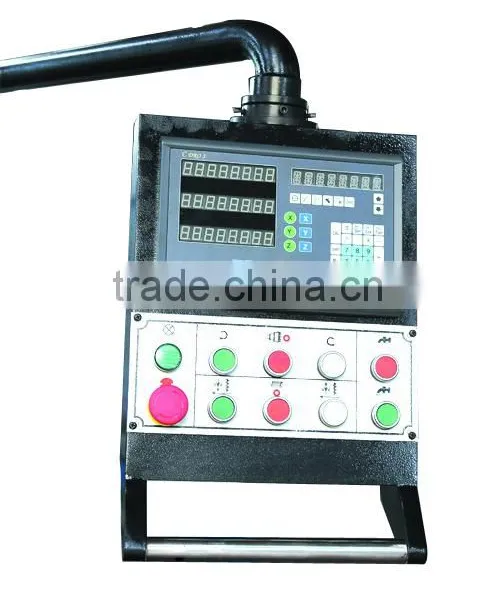

Rotary worktable ±45° Operation panel and DRO(optional)

Technical Parameter

Specification	Unit	TM500
Spindle taper	-	ISO40(V) ISO40(H)
Diameter of spindle quill	mm	95
Distance from spindle end to table surface	mm	90-370
Distance from horizontal spindle center to table surface	mm	0-280
Distance from vertical spindle center to column surface	mm	200-700
Spindle speed	rpm	70-4540(V), 40-1300(H), 16steps
Spindle travel	mm	127
Auto-feeding of vertical spindle quill	mm	0.04, 0.08, 0.15(3steps)
Max. drilling capacity of auto-feeding	mm	Φ10
Rotary angle of table	deg	±45°
Mill head inclinable angle	deg	±45°
Table size	mm	1250*320
Table travel(Horizontal/Cross/Vertical)	mm	600/300/350
Feed speed of table(Longitudinal/Cross)	mm/min	22-555
X/Y-axis rapid feed speed	mm/min	1080
Z-axis rapid feed speed	mm/min	590
Z-axis motor power	w	750
Max. weight of workpiece	kg	300
Number/width/distance of T-slot	mm	3/14/70
Vertical guideway type	-	55°dovetail guideway
Cross guideway type	-	rectangular guideway
Longitudinal guideway type	-	dovetail guideway
Main motor power	kw	3HP(V), 2.2kw(H)
X/Y-axis driving motor power	w	750
Overall dimension	mm	170015002150
Packing size(one/two sets)	mm	168016002250/230016002250
Machine weight(one/two sets)(N.W/G.W)	kg	1550/1700(3110/3300)
