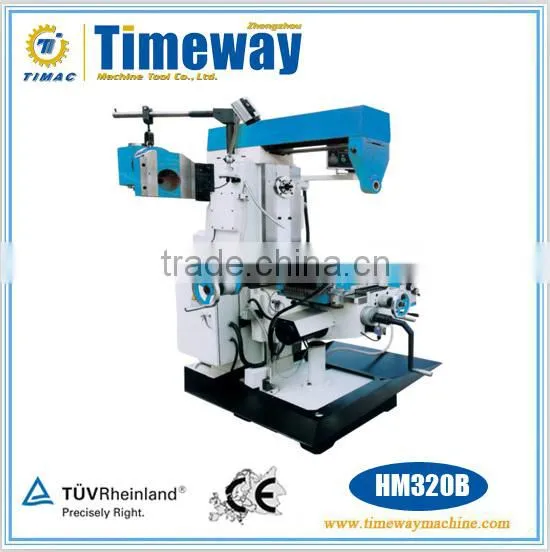

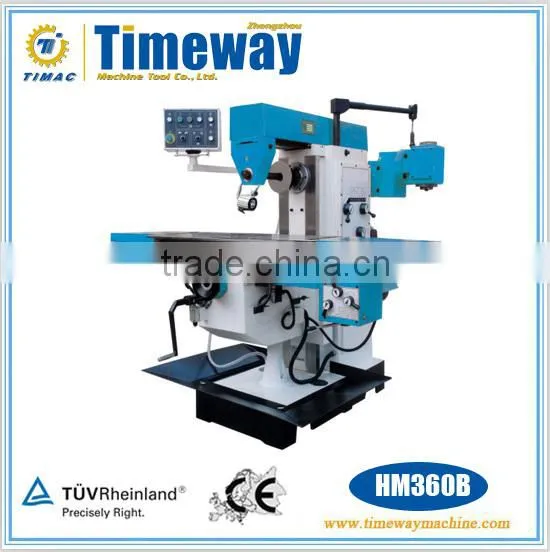

Fresadora , Chinese Horizontal Knee Type Milling Machine For Sale

Name: Fresadora , Chinese Horizontal Knee Type Milling Machine For Sale
Brand: TIMAC
SKU: 140796644
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

HM320B,HM360A,HM360B

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number HM320B,HM360A,HM360B

Type Horizontal

CNC or Not Normal

Voltage as customer's request

Power(W) 3KW

Dimension(L*W*H) 1750*1500*2000

Weight 1750/1900kg

Certification CE & ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Chinese Horizontal Knee Type Milling Machine For Sale

Product Description

Features:

* Hardened and ground table surface;

* Automatic feeds on X,Y axes, motorized rise and fall of table on Z axis;

* Rectangular column guide way with high stability.

Parameters:

Specification	Unit	HM320B	HM360A	HM360B
Spandle taper		ISO40	ISO50
Distance from spindle nose to table	mm	0-450	0-400
Spindle speed	r.p.m	(12steps)40-1300	(12steps)960-1800
Table size	mm	1250(1370)×320	1250×360
Table travel (longitudinal/cross/vertical)	mm	600(720)×300×450	600×320×400	1000×320×400
X,Y axes feed speed	mm/min	2-555(8steps)
X,Y axes rapid feed speed	mm/min	1080
Z axes rapid elevate speed	mm/min	590
Max. weight of worlpiece	kg	300	400
T-slot (No./width/distance)	mm	3/14/70	3/18/80
Main motor	kw	3	4
X,Y axes auto-feed drive motor	w	750
Z axis motor power	w	750	1100
Coolant pump power	w	90
Overall dimension(L×W×H)	mm	1700×1500×2000	1850×1790×1880	2220×1790×1880
N.W/G.W	kg	1750/1900	2100/2200	2200/2300
