Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Fresadora / HDS Series Universal Swivel Head Milling Machine

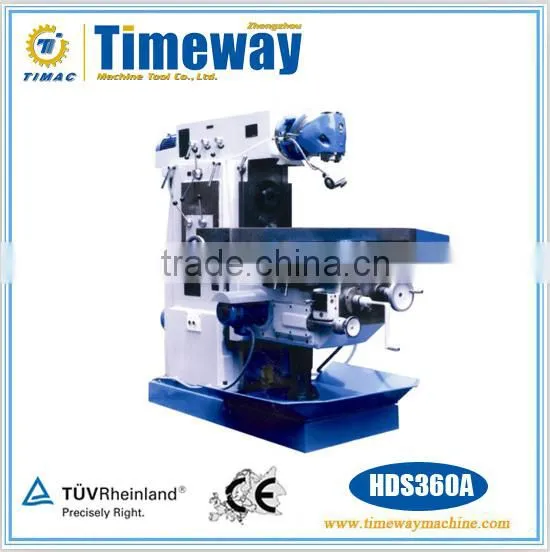

Fresadora / HDS Series Universal Swivel Head Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
HDS320A,HDS360A,HDS400A
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal Knee Type Milling Machine For Sale ( WHM320 )US$ 5,000 - 90,000MOQ: 1 Set -
Fresadora / Swivelling Worktable Heavy Duty Universal Milling MachineNegotiableMOQ: 1 Set
-
Bed Type Vertical Milling Machine For Sale ( BM713 )NegotiableMOQ: 1 Set
-
Stocking ! Vertical Knee - Type Milling Machine VM320WUS$ 4,000 - 5,500MOQ: 1 Set
-
Bed Type Vertical Milling Machine For Sale ( BM714 )US$ 2,000 - 30,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
HDS320A,HDS360A,HDS400A
Type
Universal
CNC or Not
Normal
Voltage
as customer's request
Power(W)
7.5KW
Dimension(L*W*H)
2360(1950)*1950*2100
Weight
4500KG
Certification
CE & ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
fresadora , Swivel Head Universal Milling Machine
Product Description
Parameter:
| Specification | Unit | HDS320A | HDS360A | HDS400A |
| Working table | mm | 320×1400(1700) | 360×1400(1700) | 400×1400(1700) |
| Number of T-slot | 3 | |||
| Width of T-slot | mm | 18 | ||
| Pitch of T-slot | mm | 80 | ||
| Longitudinal travel of table | mm | 900(1100) | ||
| Cross travel of table | mm | 335 | 400 | |
| Vertical travel of table | mm | 475 | ||
| Spindle taper | ISO50 | |||
| Range of spindle speed | rpm | 30~1525/40-1800 | ||
| Max..swivel angle of vertical milling head | any 360º in front half-sphere | |||
| Min.distance between spindle and table surface | mm | 10-485 | ||
| Longitudinal feed range of work table | mm/min | 22-1028 | ||
| Cross feed range of work table | mm/min | 22-1028 | ||
| Vertical feed range of work table | mm/min | 9-427 | ||
| Power of main motor | kw | 7.5 | ||
| Power of feed motor | kw | 1.5 | ||
| Net weight | kg | 4500 | ||
| Overall dimension(L×W×H) | mm | 2360(2410)×1950×2100 | ||
