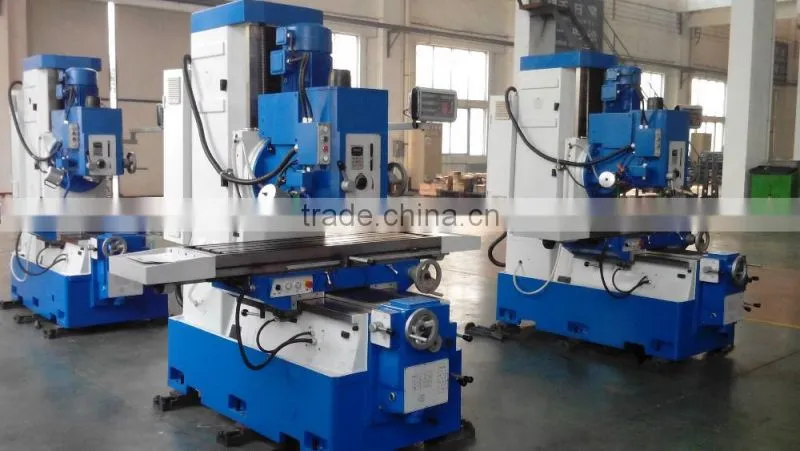

Bed Type Vertical Milling Machine for sale at low price

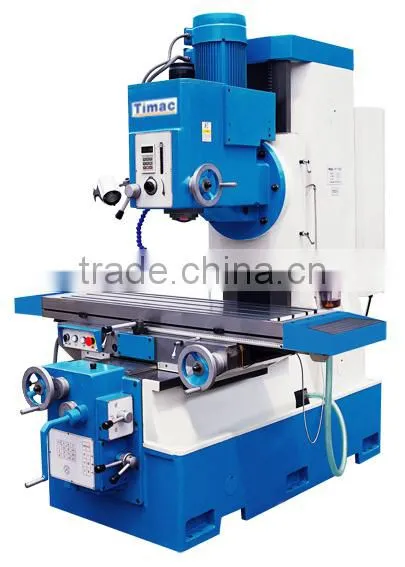

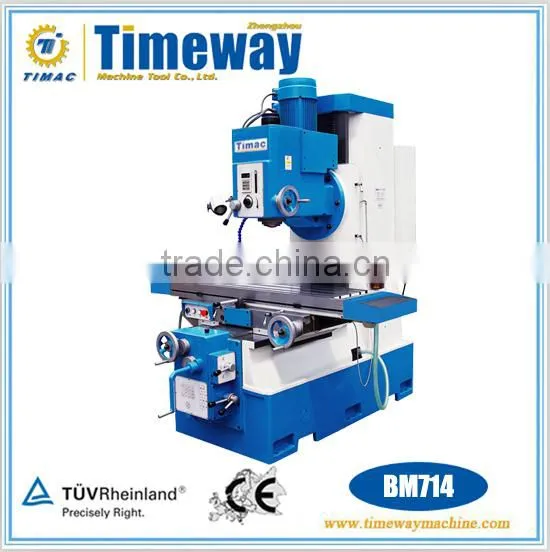

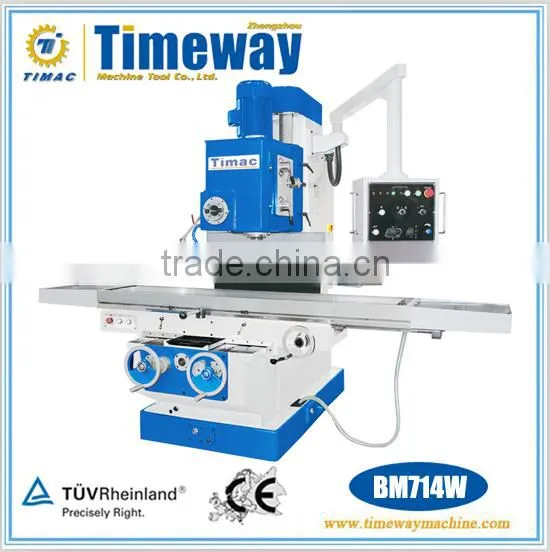

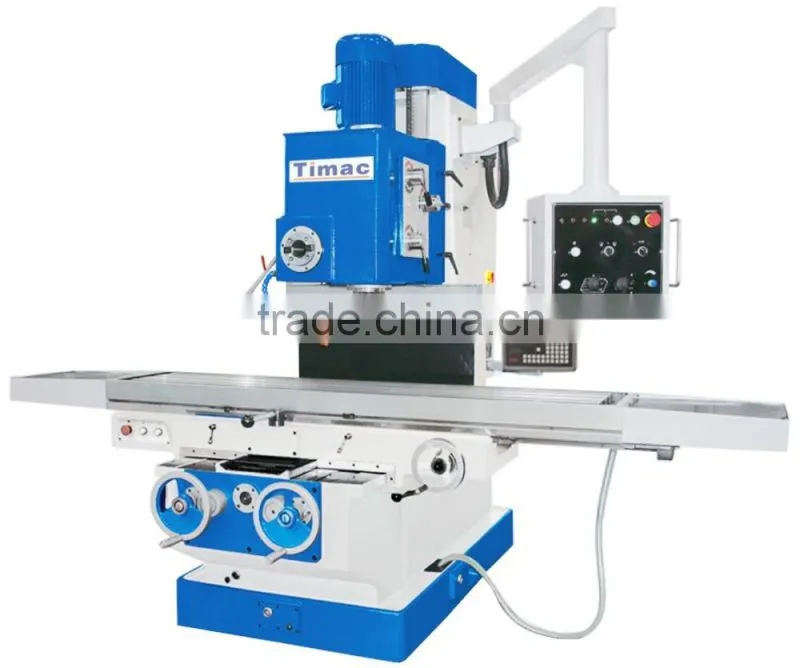

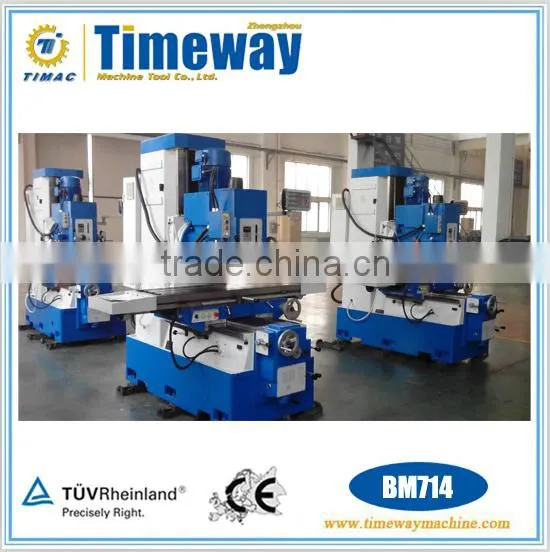

BM714 BM714W
BM714 BM714W
Features:
* Large sturdy box construction and ribbed frame to reduce vibration.
* Large flat guides, hardened and ground, guarantee stability, even under heavy milling loads.
* Manual quill stroke, service is effected via a handwheel.
* Infinitely adjustable speed range(18-1800rpm) with high torque and spindle brake.
* High table load capacity(800kg) due to massive MEEHANITE cast iron construction.

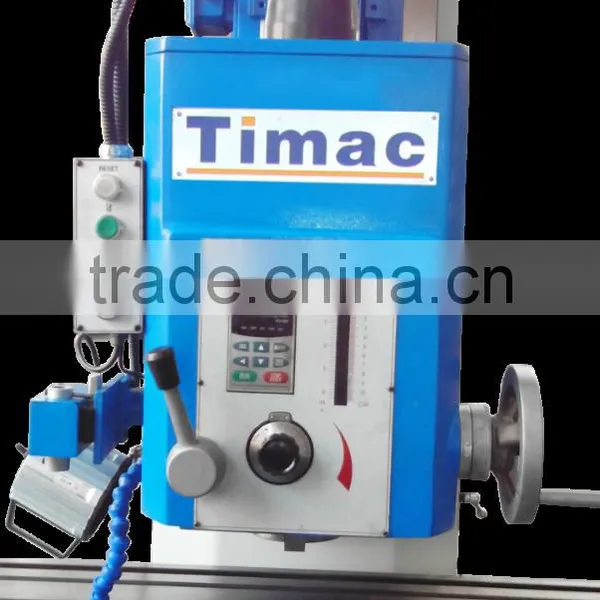

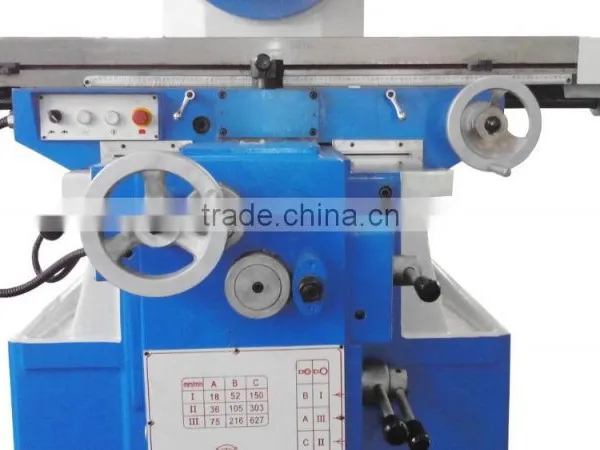

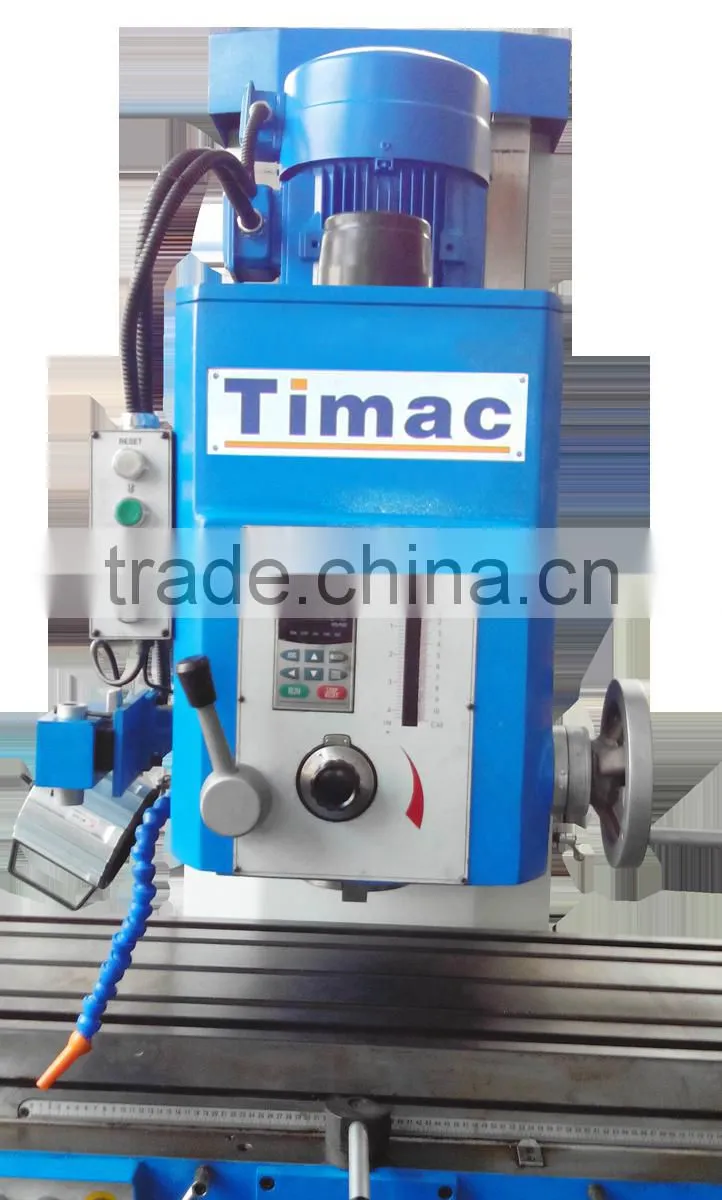

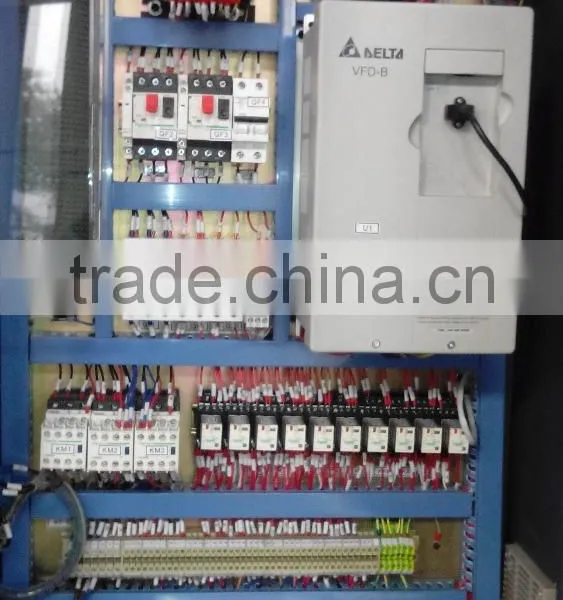

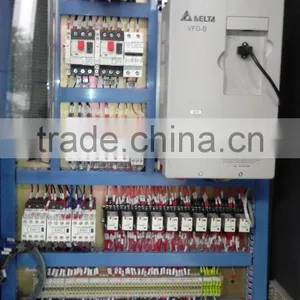

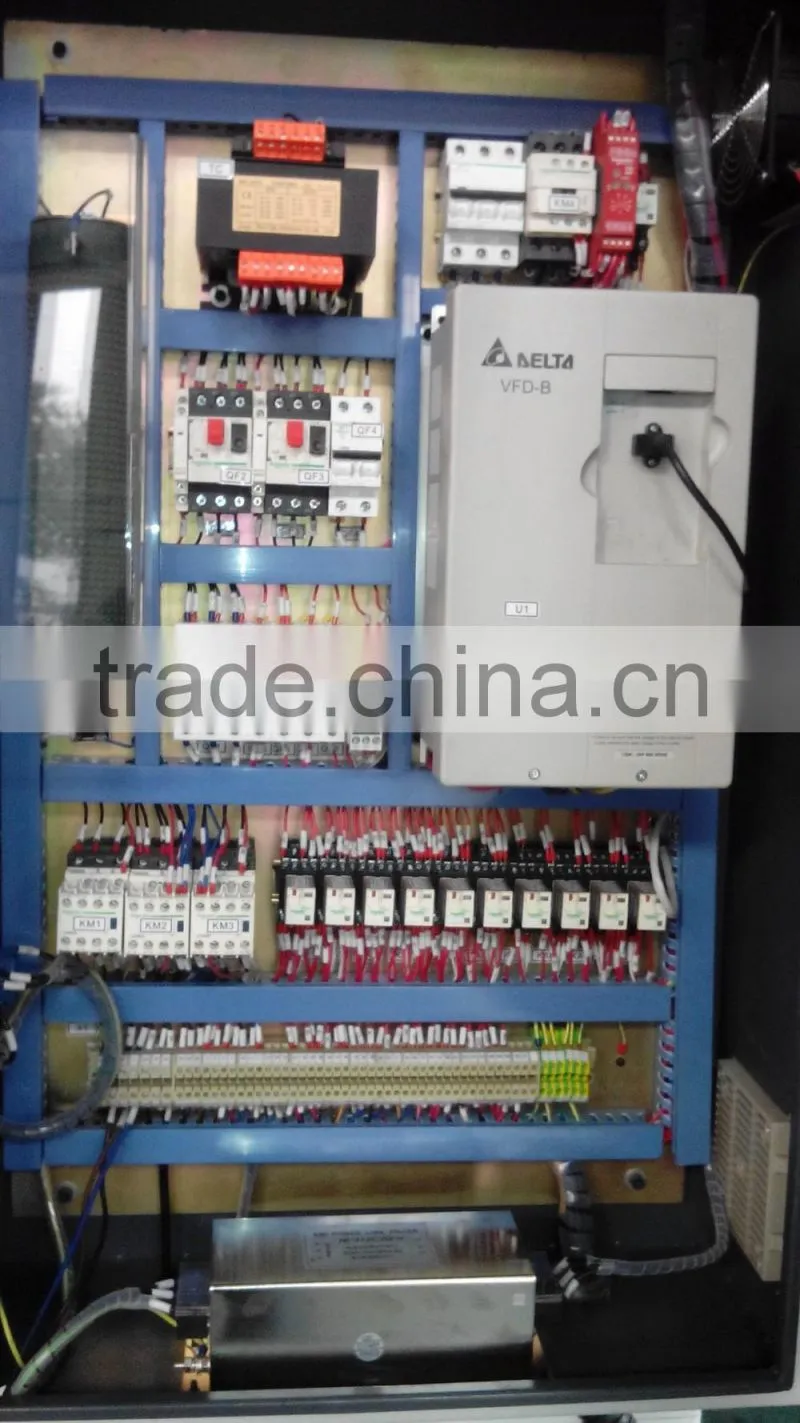

• Spindle • Worktable • Electronic Cabinet
Standard Accessories:
• Milling chuck set;
• Spindle arbor;
• Sleeve; Drilling chuck;
• Draw bar;
• Quartz lamp;
• Coolant system;
• Oil gun;
• Foundation bolts;
• Inner hexagon spanner;
• CE norms electric parts;
• Operation manual(English edition).
Optional Accessories:
• 3 axes DRO;
• Machine vice;
• Universal dividing head;
• Rotary table;
• Spindle guard(eye protection);
• 58pcs clamping kits;
Technical Parameter:
Specification |
Unit |
BM714 |
Table size (L×W) |
mm |
1400 × 400 |
T slot No./wdith/distance |
mm |
3/14/100 |
Max. load of Table |
kg |
800 |
Longitudinal / Cross / Vertical travel(X/Y/Z) |
mm |
800/400/150-650 |
Spindle taper |
|
ISO50 |
Spindle quill travel |
mm |
105 |
Spindle speed |
r.p.m |
18-1800 (stepless) |
Spindle axis to column surface |
mm |
520 |
Spindle nose to table surface |
mm |
150-650 |
Longitudinal & Cross feed (X & Y-axis) |
mm/min |
18-1800(9 step) |
Vertical feed |
mm/min |
18-1800(9 step) |
Longitudinal/cross rapid speed |
mm/min |
1670 |
Rapid Traverse vertical |
mm/min |
1670 |
Main motor |
kw |
7.5 (Inverter) |
Feed motor |
kw |
0.75 |
Elevating motor for headstock |
kw |
0.75 |
Coolant motor |
kw |
0.04 |
Shipping size(L×W×H) |
mm |
2260×1870×2250 |
Net weight / Gross weight |
kg |
3860/4560
|
Technical Parameter:
Specification |
BM714W |
|
Table |
Table size |
2000x400 mm |
T-slot number/width/distance |
3-18-100 mm |
|
Max. load of Table |
2000 kg |
|
Machining range |
Longitudinal travel (X-axis) |
1500 mm |
Cross travel (Y-axis) |
500 mm |
|
Vertical travel (Z-axis) |
680 mm |
|
Main spindle |
Spindle taper |
ISO50 |
Spindle speed |
66~1440rpm (12 steps) |
|
Spindle quill travel |
105mm |
|
Distance from spindle axis to column surface |
600 mm |
|
Distance from spindle nose to table surface |
100-650 mm |
|
Swivel angle of swivel head |
±30° |
|
Feeds |
Table feed |
20-2000mm/min |
Table rapid feed |
3500mm/min |
|
Motor power |
Main motor |
6.5/8kw |
Feed motor (Servo) |
2.8 kw,18N/m |
|
Coolant motor |
0.09 kw |
|
Others |
Overall dimension |
3000x2285x2340 mm |
Machine weight |
5000 kg
|
|
