CNC Horizontal Boring Machine

Name: CNC Horizontal Boring Machine
Brand: TIMAC
SKU: 140796296
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

CNC

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Brand Name TIMAC

Model Number TK6111

Voltage As requirement

Power(W) 69KVA

Weight 5000kg

Certification CE

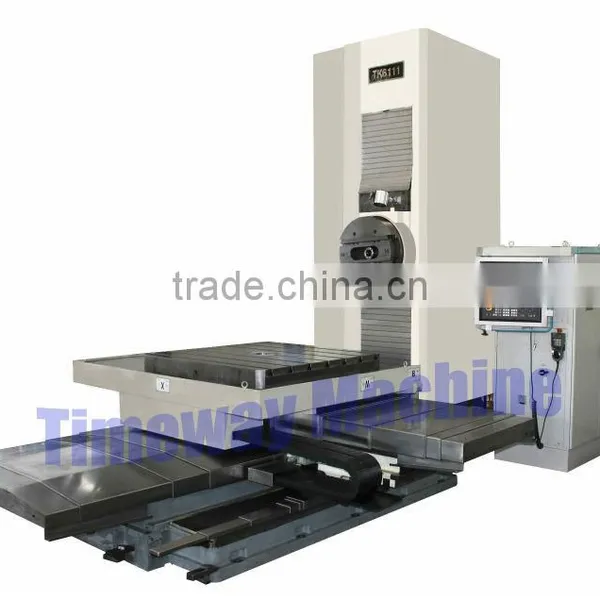

CNC Boring Machine TK6111

1.Configuration and feature of machine:

This machine is table type.

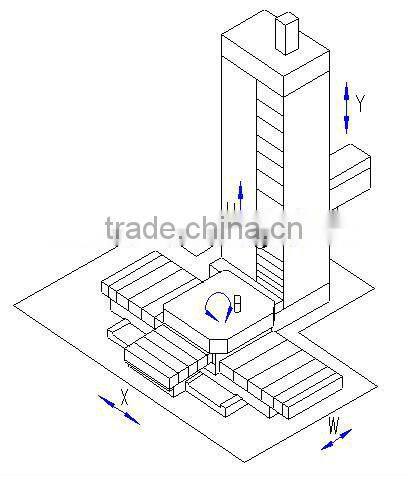

Table cross travel (X)

Table longitudinal travel (W)

Spindle head travel (Y)

Spindle or quill travel (Z)

Table rotary (B)

Travel of facing chuck slide (U)

2.Control system:

The machine is with SINUMERIK 840D full digital control system and 611D digital servo and spindle drive.

3.Feedback system of position:

Linear grating made by HEIDENHAIN are used in X,Y and W axes.

Encoder from SIEMENS is used in Z and U axis.

Circular grating made by HEIDENHAIN is used in B axis.

Separate encoder from SIEMENS is used in spindle directional.

4. Main specification:

S/N.	Specification	TK6111
1	Spindle diameter	Φ110mm
2	Spindle taper	ISO50
3	Table size (L X W)	1400 X 1400mm
4	Cross travel of table (X)	1700mm
5	Longitudinal travel of table (W)	1400mm
6	Vertical travel of spindle head (Y)	1400mm
7	Spindle travel (Z)	600mm
8	Travel of facing head slide (U)	200mm
9	Max. boring diameter of spindle	300mm
10	Max. machining diameter of facing head	700mm
11	Max. drilling diameter of spindle	50mm
12	Spindle speeds	10-1500r/min
13	Max. torque of spindle	1600Nm
14	Facing head speeds	7-165r/min
15	Tool shank type	JT50 (optional MAS403 BT50)
16	Pull stud type	LD-50D (optional MAS403A P50T-1)
17	Positioning accuracy: X, Y, W Z U B	0.015 (±0.008mm ) 0.02( ±0.012mm) 0.025(±0.02mm) ±8″ ±4″(4X90°),
18	Repeatability : X, Y, W Z U B	0.010(±0.006mm) 0.012(±0.008mm ) 0.015(±0.010mm) ±4″ ±2″(4×90°)
19	Feed rates: X, Y, W Z, U	1-5000mm/min 1-2500mm/min
20	Rapid traverse: X, Y, W Z B U	10000mm/min 5000mm/min 2r/min 2500mm/min
21	Power of spindle motor	17kw
22	Main power of electricity	69KVA
28	Table loading	5000kg
