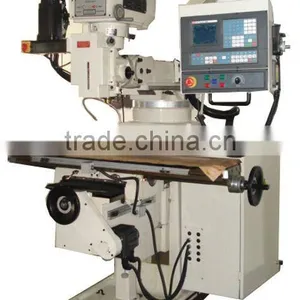

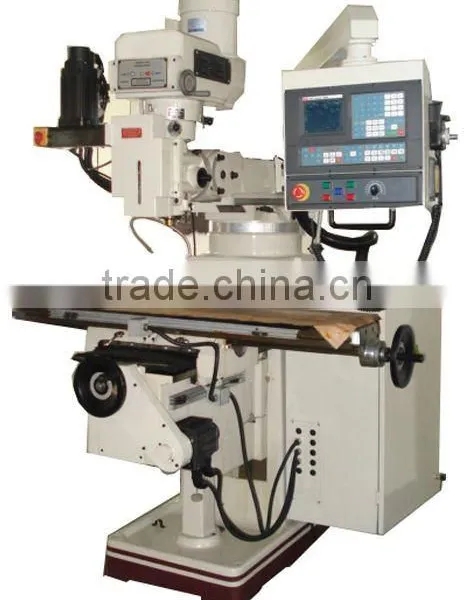

ECONOMICAL CNC MILLING MACHINE
CNC TURRET MILLING MACHINE
Model | Unit | KTM-230A | KTM-230B | KTM-250 | KTM-250A | KTM-250B | KTM-250C | KTM-250D | KTM-300 | KTM-300A | ||
Table size | mm | 230x1067 | 254x1270 | 305x1370 | ||||||||
230x1246 | 254x1370 | 305x1500 | ||||||||||
T slots |
| 3x16 | ||||||||||
Table loading | kg | 200 | 280 | 350 | ||||||||
X axis(table longitudinal move)travel |
| 550 | 750 | 800 | ||||||||
| 740 | 850 | 900 | |||||||||
Y axis(table cross move)travel |
| 300 | 400 | 380 | 380 | 400 | 400 | 360 | 360 | |||
Z axis(Quill move)travel |
| 127 | ||||||||||
X/Y/Z axis rapid feed | mm/min | 5000mm/min | ||||||||||
X/Y/Z axis servo motor | Kw | 1 | ||||||||||
Knee vertical travel | mm | 380 | 400 | 410 | ||||||||
Ram travel | mm | 315 | 465 | 500 | ||||||||
Distance from spindle table | mm | 0-380 | 0-400 | 0-410 | ||||||||
Milling head | Spindle speed | Standard:16steps | rpm | 50HZ:60-4500/60HZ:80-5440 | ||||||||
Optional: Variable | 65-4200 | 60-3750 | ||||||||||
Spindle taper |
| Standard:R8/Optional:ISO40 | ISO40 | |||||||||
Motor power | HP | 3HP | 5HP | |||||||||
Head rotating | Swiveling |
| 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | |
Tilting |
| 45°45° | 45° | 45° | 45° | 45° | - | 45° | 45° | - | ||
CNC |
| GSK/FANUC/SIEMENSE/MITSUBISH/FAGOR | ||||||||||
Package size | cm | 165x190x200 | 190x200x223 | 200x200x225 | ||||||||
G.W | kg | 1200 | 1500 | 1700 | 1900 | |||||||
Standard accessories:
Draw bar
Tool box and tools
Working lamp
Electro lubricating pump
Hung up control panel
Cooling system
Oil collecting plate
Plastic splashing guard
Optional accessories:
Air draw bar
Machine vise
Universal clamping kits
Collets and chuck
