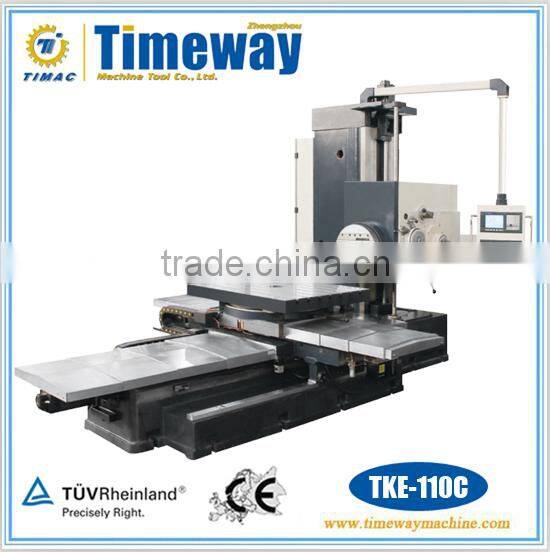

CNC Horizontal Boring and Milling Machine with Manual Rotary Table
TKE-110B TKE-110C TKE-110D
Performance and Feature
1.The machine is characterised by spindle system strong rigidity,heavy cutting and high processing efficiency.
2.Spindle box end is equipped with swing plate radial tool post,that can boring bigger hole and plane.
3.TKE-110C choose hanging wheel rack,screw thread processing can be performed. The machine tool uses Φ110mm boring spindle, strong rigidity, it is used for rough processing and powerful cutting. Bed, column, upper saddle and lower saddle adopt rectangular guideway, great stability. X/Y/Z axis are controlled by CNC system, can achieve three axis linkage.
4.Max.load of woraktable is 5T.
5.The machine has the characteristics of large torque and high-speed .
6.The fundamental large parts adopt rectangle guideway ,such as bed ,column,upper saddle ,lower saddle,machine has good stability.
7.X,Y,Z axis adopt imported ballscrew tranmission,that can achieve three-axis linkage and linear &circular interpolation.
8.Boring spindle and swing plate are driven by Panasonic motor ,through handle transformation to realize stepless speed regulation of feed.
9.Spindle adopts high-low level structure,spindle has large torque and high speed;Max.torque is 1000N.m,Max speed is 1100rpm.
10.The guide and ballscrew adopt centralized quantitative lubrication system,oil to all lubricating points periodocally to ensure that all the moving parts flexible and reliable.
11.The spindle box adopts constant temperature tank of forced circulation cooling and lubrication.
12.The tool shank use BT50 standard,the tool clamping and loosening the disc spring clamp,hydraulic release.
Optional Performance
The diameter of optional spindle is Φ130mm.
Spindle Box

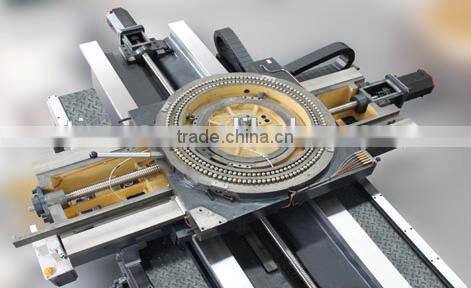

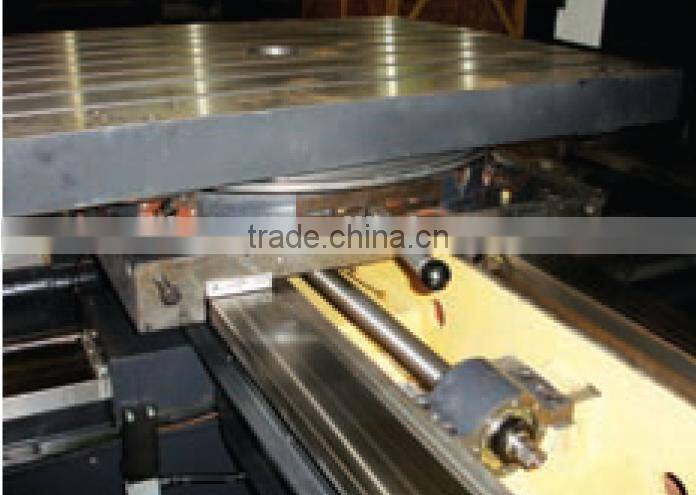

Manual Rotary Table
Accuracy Test
Main Technical Parameters(Worktable Rotary Manually)
| Specifications | Units | TKE-110B | TKE-110C | TKE-110D | |
| Table | |||||
| Table size | mm | 1010*1320 | 1010*1320 | 1010*1320 | |
| Max.load of table | kg | 5000 | 5000 | 5000 | |
| T-slot size | mm | 7-22-125 | 7-22-125 | 7-22-125 | |
| Workbench positioning accuracy | ″ | 12 | 12 | 12 | |
| Capacity | |||||
| X-axis travel | mm | 850 | 1200 | 1800 | |
| Y-axis travel | mm | 900 | 900 | 1200 | |
| Z-axis travel | mm | 1300 | 1300 | 1300 | |
| W-axis travel | mm | 550 | 550 | 550 | |
| Distance from spindle center to worktable surface | mm | 5-905 | 5-905 | 5-905 | |
| Max.boring diameter | mm | Φ240 | Φ240 | Φ240 | |
| Swing plate tool post cessing end diameter | mm | Φ630 | Φ630 | Φ630 | |
| Max.drilling diameter | mm | Φ50 | Φ50 | Φ50 | |
| Accuracy | |||||
| Positioning precision | X | mm | 0.026 | 0.03 | 0.04 |
| Y | mm | 0.026 | 0.026 | 0.04 | |
| Z | mm | 0.03 | 0.03 | 0.04 | |
| Repeat positioning precision | X/Y/Z | mm | 0.015 | 0.015 | 0.015 |
| Spindle | |||||
| Spindle diameter | mm | Φ110(Φ130) | Φ110(Φ130) | Φ110(Φ130) | |
| Spindle speed range | rpm | 12-950 | 12-950 | 12-950 | |
| Spindle speed step | steps | 18 | 18 | 18 | |
| Spindle max.output torque | N.m | 1100 | 1100 | 1100 | |
| Max.axial force | N | 13000 | 13000 | 13000 | |
| Spindle taper | ISO NO.50 | ISO NO.50 | ISO NO.50 | ||
| Spindle motor power | kw | 6.5/8(9/11) | 6.5/8(9/11) | 6.5/8(9/11) | |
| Max.weight of tool | kg | 18 | 18 | 18 | |
| Swing plate | |||||
| Diameter | mm | Φ550 | Φ550 | Φ550 | |
| Tool post travel | mm | 160 | 160 | 160 | |
| Speed range | rpm | 4-160 | 4-160 | 4-160 | |
| Speed step | steps | 16 | 16 | 16 | |
| Feeding | |||||
| Rapid feeding speed | X/Y/Z | mm/min | 5000 | 5000 | 5000 |
| W | mm/min | 3600 | 3600 | 3600 | |
Swing plate tool post |
mm/min | 1120 | 1120 | 1120 | |
| Feeding speed | X/Y/Z | mm/min | 5-1000 | 5-1000 | 5-1000 |
|
Boring spindle each revolution axial feeding scope of boring spindle |
mm | 0.05-16 | 0.05-16 | 0.05-16 | |
|
Swing plate each revolution feeding scope of radial tool post |
mm | 0.05-16 | 0.05-16 | 0.05-16 | |
| Machine weight | kg | 10700 | 13500 | 16500 | |
| Power capacity | Kva | 35 | 35 | 35 | |
| Machine dimension | mm | 5347*2648*2889 | 5347*3020*2889 | 5352*3704*3344 | |
