CNC Horizontal Boring and Milling Machine With Manual Rotary Table

CNC Horizontal Boring and Milling Machine with Manual Rotary Table

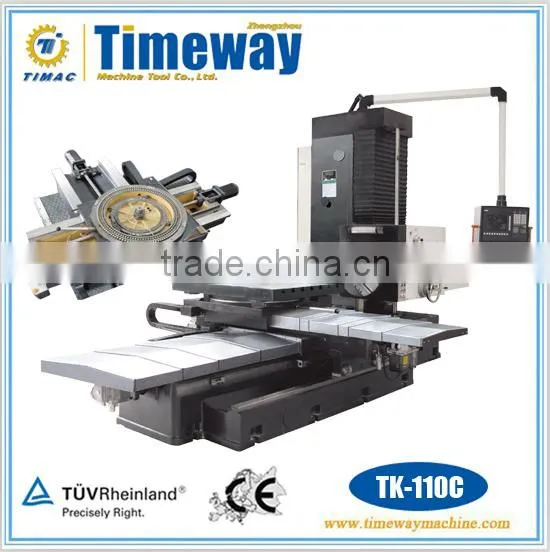

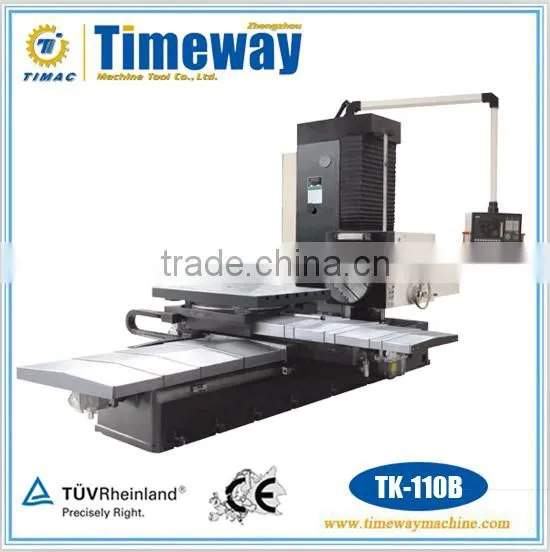

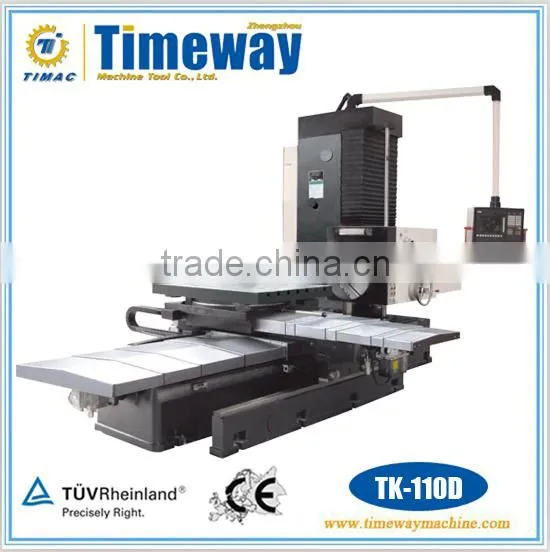

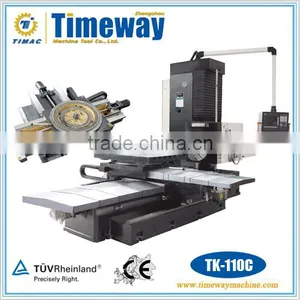

TK-110B   TK-110C   TK-110D

Performance and Feature

1.The machine is characterised by spindle system strong rigidity,heavy cutting and high processing efficiency.
2.Spindle box end is equipped with swing plate radial tool post,that can boring bigger hole and plane.

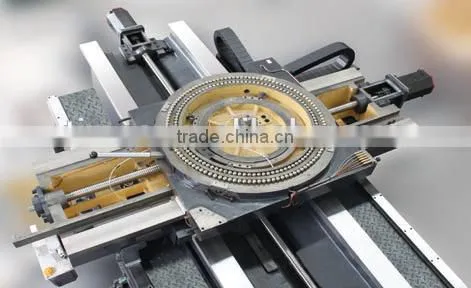

3.Workbench adopt four single pin positioning structure ,accurate positioning .
4.Max.load of woraktable is 5T.
5.The machine has the characteristics of large torque and high-speed .
6.The fundamental large parts adopt rectangle guideway ,such as bed ,column,upper saddle ,lower saddle,machine has good stability.
7.X,Y,Z axis adopt imported ballscrew tranmission,that can achieve three-axis linkage and linear &circular interpolation.
8.Boring spindle and swing plate are driven by Panasonic motor ,through handle transformation to realize stepless speed regulation of feed.
9.Spindle adopts high-low level structure,spindle has large torque and high speed;Max.torque is 1000N.m,Max speed is 1100rpm.
10.The guide and ballscrew adopt centralized quantitative lubrication system,oil to all lubricating points periodocally to ensure that all the moving parts flexible and reliable.
11.The spindle box adopts constant temperature tank of forced circulation cooling and lubrication.
12.The tool shank use BT50 standard,the tool clamping and loosening the disc spring clamp,hydraulic release.

Optional Performance
1.The diameter of optional spindle is Φ130mm.

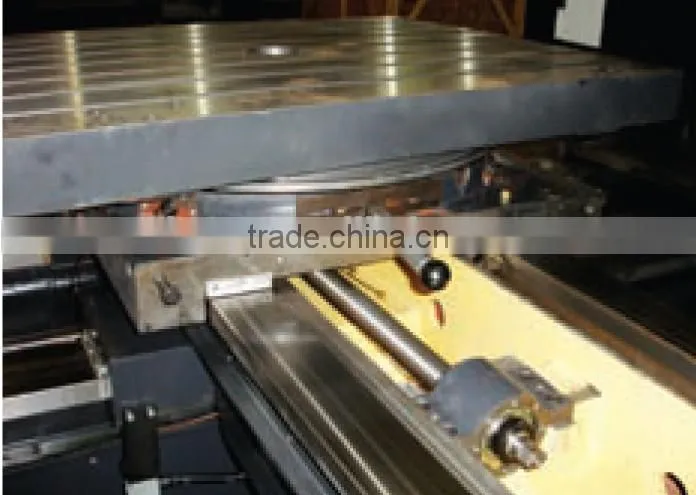

Manual Rotary Table

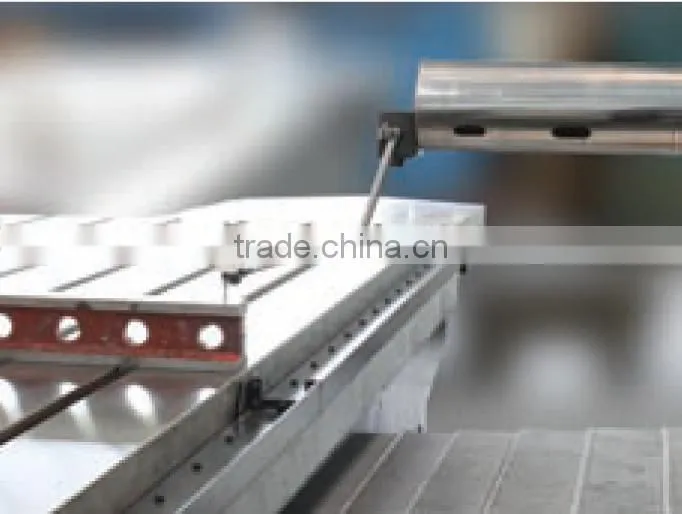

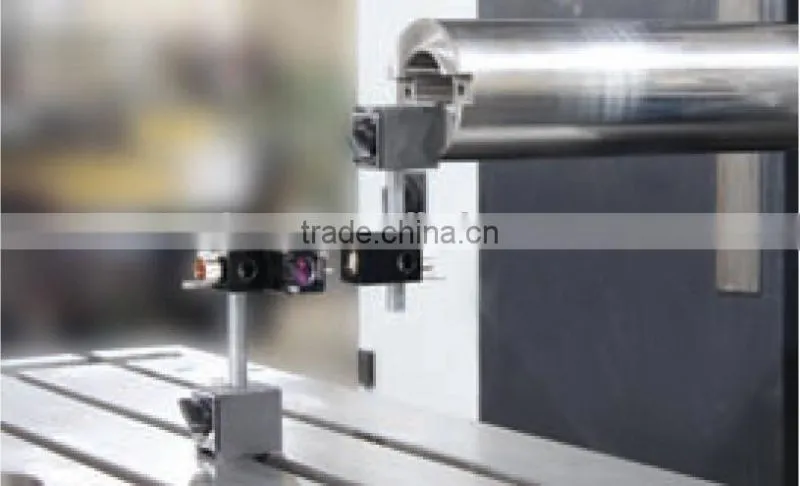

Accuracy Test

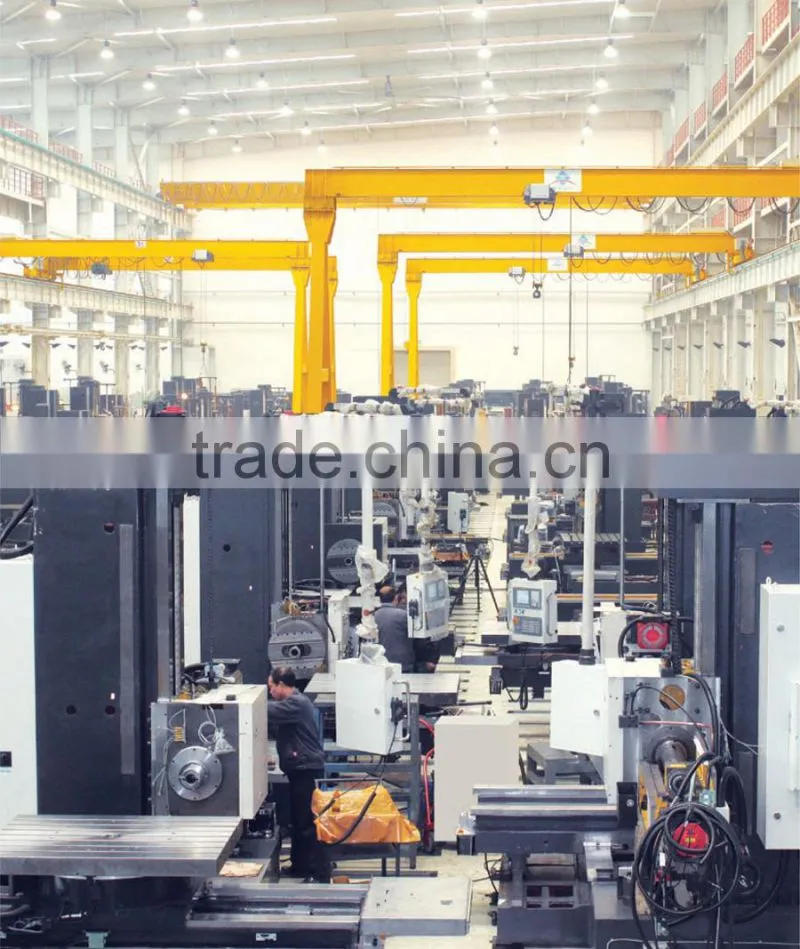

Assembly Workshop

Main Technical Parameters(Worktable Rotary Manually)
