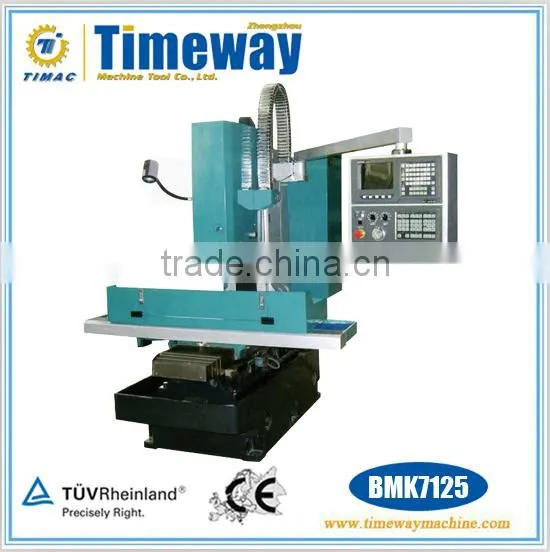

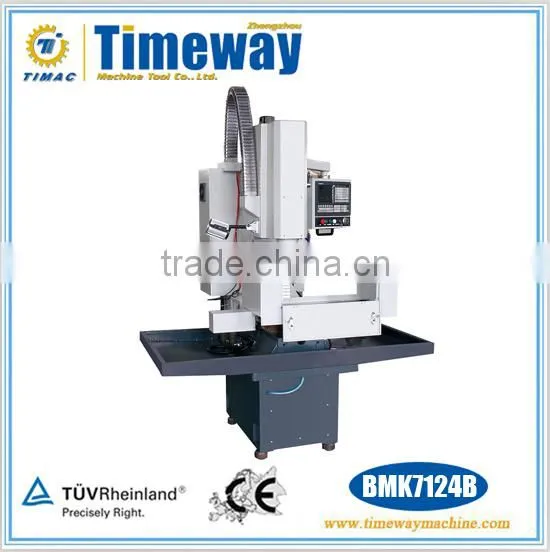

CNC Vertical Bed-type Milling Machine
BMK7124 BMK7124A BMK7124B BMK7125 BMK7130
Performance and Feature
1. 4 pcs tool stations on worktable with high efficiency. It can finish all process of surface machining hole machining and tapping by clamping workpiece.
2. High and low step speeds available and stronger torque for low step speed.
3. 3 axis transmission by precision ball leadscrew, servo motor driven.
4. Two styles of tool change available, manually and pneumatically.
5. Various famous CNC controllers supplied with for more choice.
6. Machine stand and machine body are designed separately for easy and flexible installment by user.
Standard Accessories
Coolant system
Working lamp
Manual lubricating system
SIEMENS controller system
Auto lubricating system
Optional Accessories
GSK, FANUC
Tool raleased and clamped pneumatically
Heightened column(Z travel:50-550mm)
900*240mm worktable
160mm parallel vise
Tool holder
Machine stand made of iron casting
Technical Parameters
| Specifications | Units | BMK7124/BMK7124A | BMK7124B | BMK7125 | BMK7130 |
| Size of worktable(L*W) | mm | 800*240 | 800*240 | 1000*250 | 1372*330 |
| T-slot(width*qty*spaces) | mm | 16*3*60 | 16*3*60 | 16*3*63 | 16*3*58 |
| Max. loading weight on worktable | kg | 60 | 60 | 120 | 600 |
| X/Y/Z axis travel | mm | 430*280*400 | 430*280*400 | 535*320*375 | 820*420*480 |
|
Distance between spindle nose and table |
mm | 60-460 | 50-450/550 | 50-425 | 60-540/40-520 |
|
Distance between spindle center and column |
mm | 297 | 297 | 345 | 486 |
| Spindle speed | rpm | 100-4000 | 100-6000 | 100-4000(6000/8000) | 100-4000(6000/8000) |
| Spindle taper | BT30 | BT30 | BT30 | BT30/BT40 | |
| Tool clamping way | Manual/pneumatic | Pneumatic | Manual | Pneumatic | |
| ATC capacity | no | 4 pcs simple ATC | Optional | 10 | |
| Feeding speed | mm/min | 0-2000 | 0-2000 | 0-2000 | 0-2000 |
| Rapid feeding speed: X/Y/Z axis | m/min | 6 | 6 | 12 | 12 |
| Positioning accuracy | mm | 0.04 | 0.04 | ±0.008 | ±0.008 |
| Repeat positioning accuracy | mm | 0.02 | 0.02 | ±0.005 | ±0.005 |
| Min. set unit | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Main motor power | kw | 1.5 | 2.2/3.7 | 1.5/2.2 | 2.2/3.7 |
| Feeding motor power | kw | 1/1/1 | 1/1/1.5 | 1/1/1.5 | 1/1/1.5 |
| Max. size of tool | mm | Φ60*175 | Φ60*175 | Φ60*175 | Φ60*250/Φ80*250 |
| Max. loading weight of tool | kg | 3.5 | 3.5 | 3.5 | 3.5/7 |
| N.W | kg | 900 | 1000 | 1700 | 2400 |
| Overall size(L*W*H) | mm | 1640*1205*1950(2050) | 1640*1205*1950(2050) | 1516*1764*1708 | 1980*1780*2270 |
| Packing size(L*W*H) | mm | 1900*1620*2480(2580) | 1900*1620*2480(2580) | 2250*1910*2280 | 2280*2030*2480 |
