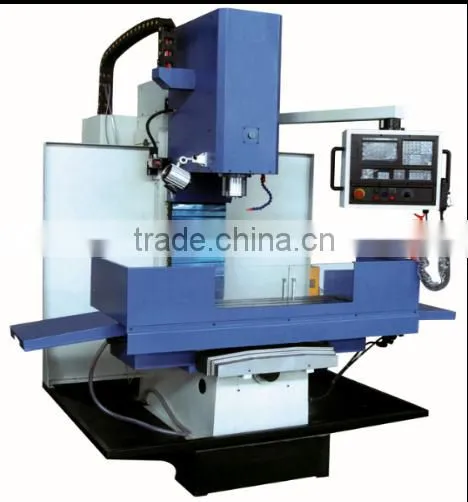

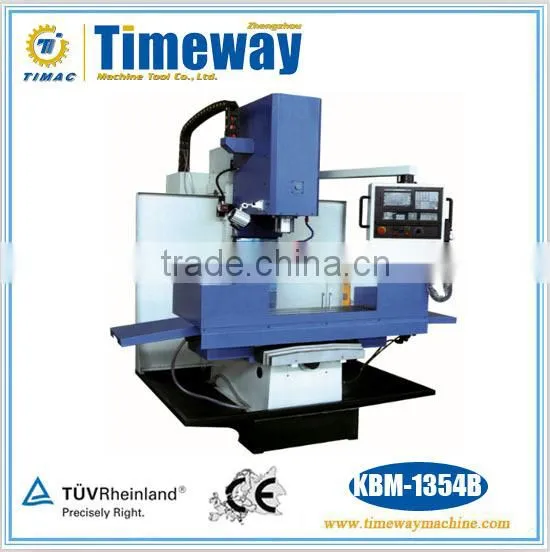

Bed Type CNC Milling Machine for Sale (KBM-1354B)

Name: Bed Type CNC Milling Machine for Sale (KBM-1354B)
Brand: TIMAC
SKU: 140796264
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

KBM-1354B

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number KBM-1354B

Type Other, Bed type

CNC or Not CNC

Voltage as your requirement, As your requirement

Power(W) 5.5kw

Dimension(L*W*H) 2220*1850*2350

Weight 2200kg

Certification ISO9001 CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Bed Type CNC Milling Machine for sale (KBM-1354B)

Product Description

Features:

* Bed type CNC milling machine with strong loading capacity.

* The main transmission system uses servo spindle motor.

* Super wide sliding guide way of X, Y, Z axis.

* The travel of X direction can reach to 900mm, with wide range of processing, easy to operate.

Parameter:

Specification	Unit	KBM-1354B
Table size	mm	1370×360
X-axis travel	mm	900
Y-axis travel	mm	350
Z-axis travel	mm	500
Distance from spindle nose to table surface	mm	100-600
Distance from spindle center to column guide way surface	mm	460
Rapid traverse of X/Y-axis	mm/min	6000
Rapid traverse of Z-axis	mm/min	5000
Cutting feed	mm/min	1-2000
Maximum loading	kg	300
T-slot No./width/spacing	mm	3/18/80
Max. Spindle speed	rpm	6000 (servo)
Main motor power	kw	5.5
Spindle taper		BT40
Positioning accuracy	mm	X:0.04 Y/Z:0.03
Repeat positioning accuracy	mm	X:0.025 Y/Z:0.02
Net weight	kg	2200
Overall dimensions	mm	2220×1850×2350
