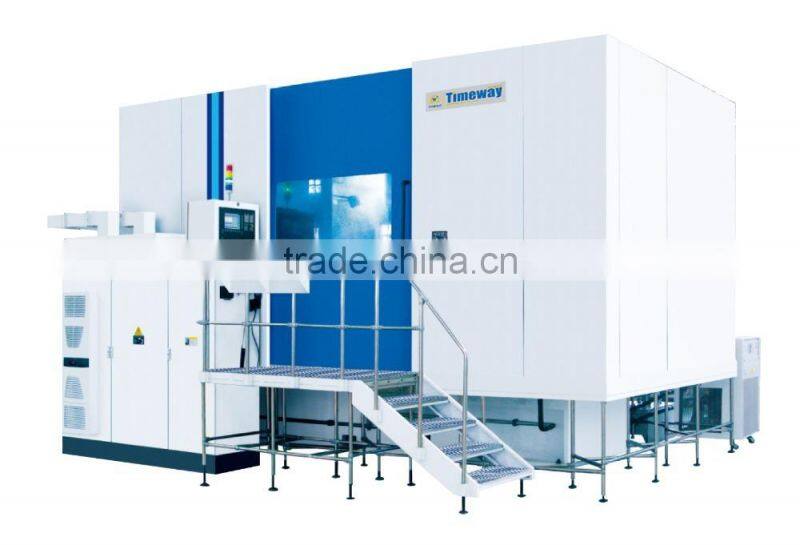

Large Module and High Efficiency CNC Gear Hobbing Machine

Large Module and High Efficiency CNC Gear Hobbing Machine

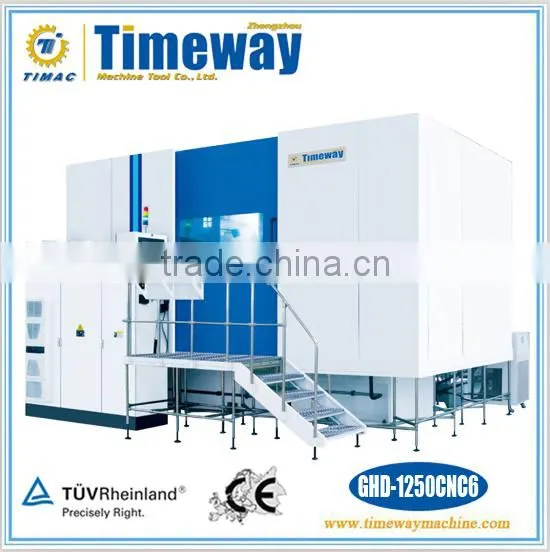

GHD-1000CNC6    GHD-1250CNC6

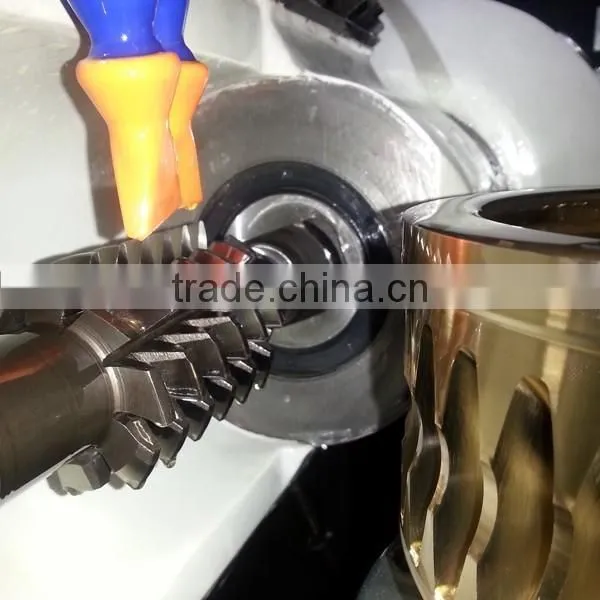

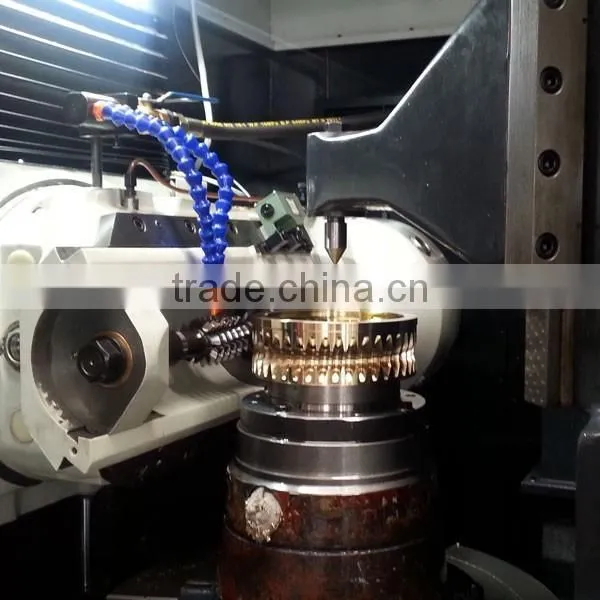

Machine Summary
The model GHD-1000CNC6/GHD-1250CNC6 CNC gear hobbing machine is of 6 axes onewith 4 axes coordinated control. Based on the principle of generating method, and by electronic gearbox(EGB), the machine is designed to cut cylindrical spur & helical gears, worm wheels, crowning or slightly tapered gears and spliner, etc. It is suited for the industries that produce the gears on a large scale production, such as heavy-truck, crane machinery, mining, marine, lift, metallurgy, generating equipment and engineering machinery, etc.

Performance and Feature
1. The machine is of 6 axes with 4 axes coordinated control.
2. Independent manual setting up hand wheel.
3. Standard interface RS232.
4. Man-machine conversation interface.
5. Self-diagnostics function.
6. Automatically clamping hob arbor mechanism.
7. Full enclosure, oil mist evacuator and chip conveyor.

8. Separated hydraulic system with oil temperature display.
9. Separated circulating lubricating system.
10. Automatically separated lubricating system for guideways.
11. Separated cooling system.
12. Hydrostatic bearings for the spindle and worktable.
13. High efficient powerful hobbing by double-edge high speed hob.
14. Automatic spindle overload monitoring and alarm device.

15. In case of power off or fault occurred, the column witll quickly retract. The fault number will automatically display on the screen.

16. With symmetric design of machine bed, circulating coolant can ensure stable thermal distribution of the machine.
17. The spindle is driven by a large power water-cooling motor through super precision helical gearing, and a one-tooth difference clearance-eliminating mechanism at the terminal to improve transmission accuracy and rigidity.
18. Large hydrostatic bearings with good static & dynamic rigidity and rotary accuracy and high precision double-worm gearings awarded national patent are used for the worktable. Therefore, the worktable can carry out cleanrance-free transmission.
19. Bulky components design with high powerful and rigidity to greatly improve rigidity of the machine, thus ensure the machine meet the requirements of the high efficient cutting.
20. Guideways for X and Z axis adopt ample rectangle hardened ones and linear recirculating roller guidance system with preloaded to ensure rigidity and accuracy of the guideways. X, Y and Z axis are controlled by fully-closed loop linear encoder to ensure machining dimensions stability.
21. Adopt PROFI-BUS DT bus construction, reasnable arrangment of pipelines and cables and ensure stability of control system.

Technical Parameters

Standard Attachments

• SIEMENS 840D CNC control system
• 12" color display
• Linear encoders for X, Y and Z axis
• Φ50 hob arbor assembly
• Auto. hob clamping device
• Fully enclosure machine guards
• Oil mist evacuator
• Safety switch
• Automatic lubricating system
• Chip conveyor
• Hydraulic, lubricating system
• Cooling system
• RS232 interface
• Electrical cabinet
• Temperature and humidity control device for electric cabinet
• Hydrostatic oil chiller
• Working lamp
• Indicating lamp for machine status
• Special tools for installation and adjustment
• Isolating vibration pads
• Manual flushing chip gun
• Machine data storage disc
• Cooling oil chiller

Optional Attachments

• FANUC CNC system
• Φ32 hob arbor assembly
• Φ40 hob arbor assembly
• Φ60 hob arbor assembly
• Φ80 hob arbor assembly
• Workstay
• Workpiece fixture
• Chip conveyor special for cast iron cutting
• Man-machine conversation programming
• Remote diagnostecs function
• Auto tooth alignment function
• Function of cutting root cone spline
• Single indexing hobbing function

Commercial Components

• Germany IBC/FAG/INA or Japan NSK bearings
• Germany INA or Japan IKO linear recirculation roller guidance system
• Japan NSK ball screw
• Germany P+F approach switch
• Germany ROTTAL electrical cabinet
• America VICKERS hydraulic & hydrostatic components
