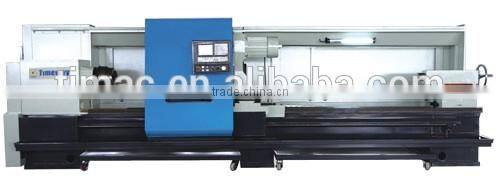

Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > CNC Horizontal Worm Whirling Miller
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
SMK-180
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Horizontal Spiral Groove Milling MachineUS$ 10,000 - 150,000MOQ: 1 Set -
Horizontal CNC Thread/Worm Whirlwind Milling MachineUS$ 10,000 - 150,000MOQ: 1 Set
-
CNC Ram Turret Type Milling MachineUS$ 1 - 10,000MOQ: 1 Set
-
CNC Bed-type Vertical Milling MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
CNC Horizontal Special Screw Rod Milling MachineUS$ 10,000 - 200,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
SMK-180
Type
Horizontal
CNC or Not
CNC
Voltage
380V 50Hz
Power(W)
5.5kw(milling head)
Dimension(L*W*H)
6000x1500x1700mm
Weight
8000kg
Certification
CE ISO
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
CNC Horizontal Screw/Worm Whirling Miller
SMK-180

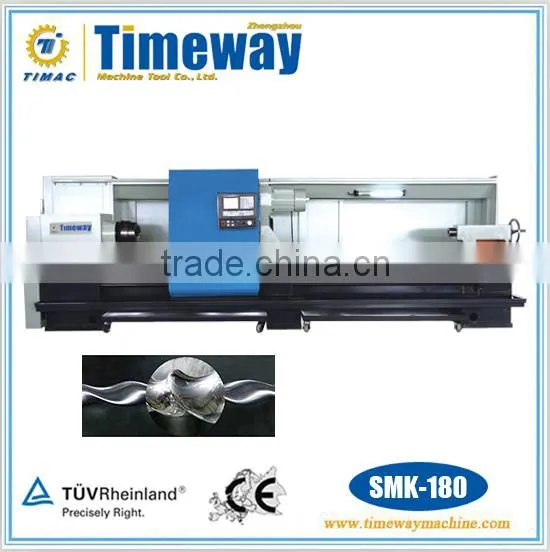

Main Outlook
Product Description
Features
- The machine is a high-efficient machining equipment that is designed for solid of revolution and spiral parts, such as all kinds of threads, worm bar, screw, screw of inject machine, screw of screw pump and etc.
- Adopting layout of horizontal lathe, precision-ground high hardness guideway, width 600mm whole bed, KND CNC system three axis linkage, Cyclone milling cutting inside, high milling efficiency(6-20times of turning), spindle transmission chain is short, transmission accuracy is high, roughness is to Ra0.8um, specially suitable for cutting thin and long workpiece by adopting speical clamping device.
Technical Parameter
Specification | Unit | SMK-180 |
Max. diameter of milling cutter blank | mm | Φ180 |
Max. diameter of workpiece | mm | Φ120 |
Min. diameter of workpiece | mm | Φ35 |
Max. length of workpiece | mm | 3100 |
Spindle taper | - | C11 |
C-axis speed range | rpm | 0-20 |
Milling cutter speed range | rpm | 100-1000 |
Tailstock quill diameter | mm | Φ100 |
Tailstock taper | - | MT5 |
Number of tools | - | 6 |
X-axis servo motor torque | N.m | 10 |
Z-axis servo motor torque | N.m | 16 |
C-axis servo motor torque | N.m | 10 |
Milling head motor power | kw | 5.5 |
X/Z-axis min. feed unit | mm | 0.001 |
X/Z-axis positioning accuracy | mm | 0.01 |
CNC system | - | KND 1000Ti |
Cooling type of cutter | - | Nature |
Machine dimension(LxWxH) | mm | 6000x1500x1700 |
Machine weight | kg | 8000 |
