Small Table-type Vertical CNC Milling Machine

Zhengzhou Timeway Machine Tool Co., Ltd.

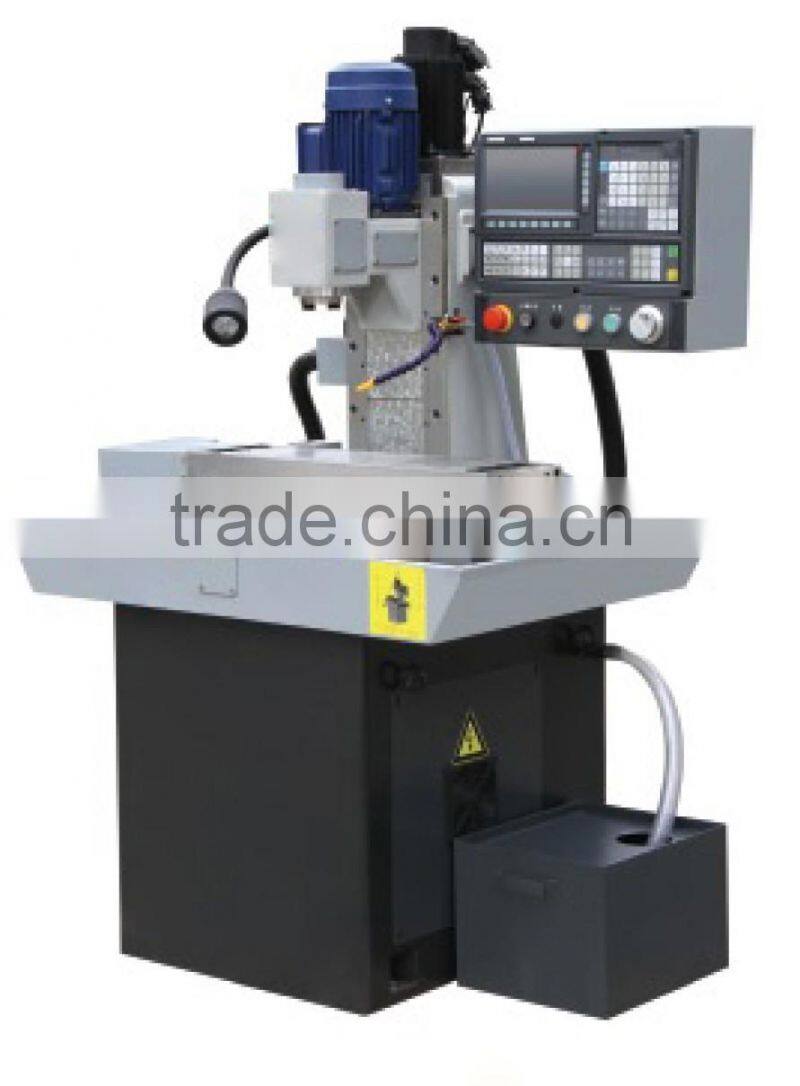

Small Table-type Vertical CNC Milling Machine thumbnail-1
Small Table-type Vertical CNC Milling Machine photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
VMK-180
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TIMAC
Model Number VMK-180
Type Vertical
CNC or Not CNC
Voltage 380V 50Hz
Power(W) 1.1KW
Dimension(L*W*H) 1000*850*1470mm
Weight 620kg
Certification CE ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Small Table-type Vertical Milling Machine

VMK-180

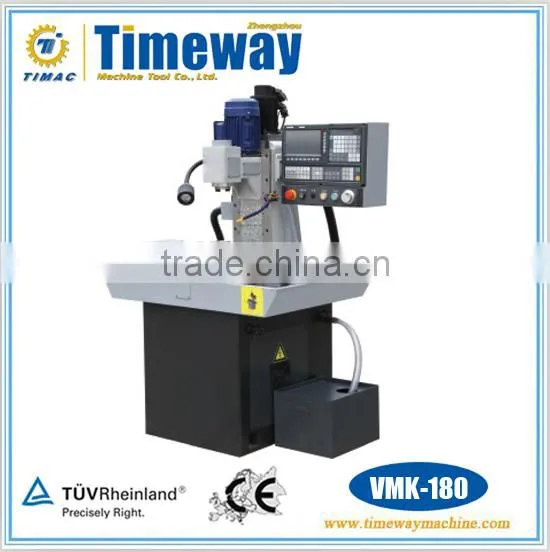

Main Outlook



Small Table-type Vertical CNC Milling Machine



Specifications List



Technical Parameters



Specification

Unit

VMK-180

Main motor power

kw

1.1

Highest spindle speed

rpm

3000

Z-axis the motor torque

N.m

6

X-axis the motor torque

N.m

4

Y-axis the motor torque

N.m

4

The spindle taper hole



BT30

Worktable size

mm

650x180

Storke (longitudinal transverse Y*X*liftZ)

mm

300x130x220

The spindle axis to guide diatance the post

mm

230

The spindle of spindle end diatance the workbench

mm

35-270

The spindle axis to vertical tolerance of workbench face

mm

≤0.02

Positioning accuracy

mm

0.02

Repeat positioning accuracy

mm

0.01

Machine tool appearance size (length*width*height)

mm

1000x850x1470

Machine net weight

kg

620



Standard Configuration
Guangtai CNC 130im


Optional Configuration
HNC-18i/21MD or GSK-983M
KND100M CNC system

Company Information



Small Table-type Vertical CNC Milling MachineSmall Table-type Vertical CNC Milling Machine

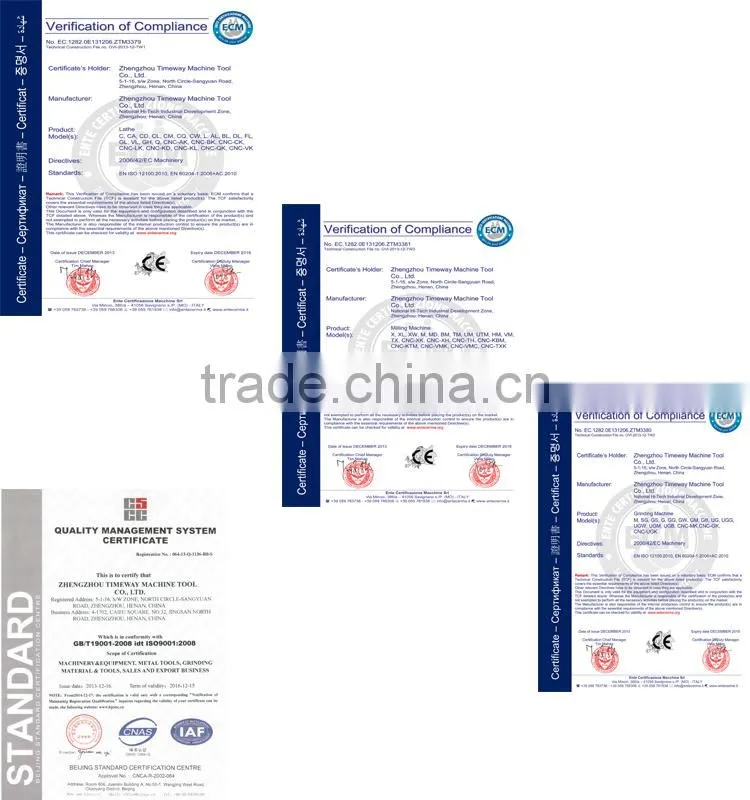

Certifications
