CNC Horizontal Screw/Worm Milling Machine

Name: CNC Horizontal Screw/Worm Milling Machine
Brand: TIMAC
SKU: 140796182
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

SMK-120

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number SMK-120

Type Horizontal

CNC or Not CNC

Voltage 380V 50Hz

Power(W) 5.5kw(milling head)

Dimension(L*W*H) 3660x1630x1840mm

Weight approx 4000kg

Certification CE ISO

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

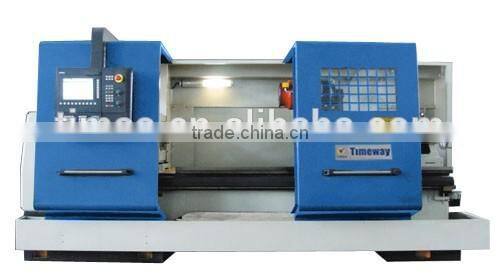

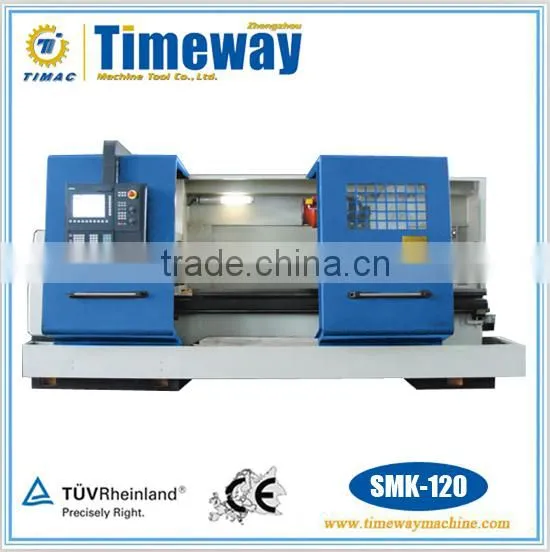

CNC Horizontal Screw/Worm Milling Machine

SMK-70 SMK-120

Main Outlook

Product Description

Features

The machine is designed a highly efficient processing equipment for axisymmetrical spiral parts.
Layout of horizontal lathe, precision-ground high hardness guideway, high-rigidity wide bed; Adpot SIEMENS CNC system to realize automatically cutting by four-axis linkage.
Cyclone milling cutting inside, high milling efficiency(6-20times of turning), spindle transmission chain is short, transmission accuracy is high, roughness is to Ra0.8um, half-enclosed protection.

Technical Parameter

Specification	Unit	SMK-120
Max. turning diameter over bed	mm	Φ630
Max. turning diameter over carriage	mm	Φ350
Max. length of workpiece	mm	1500
Max. cutter head diameter	mm	Φ120
Max. milling helix angle	deg	15°
Milling head speed range	rpm	200-900
Type of spindle head	-	Thread-connection
C-axis speed range	rpm	0.1-50
Bed width	mm	550
Diameter of tailstock quill	mm	Φ100
Tailstock quill taper	-	MT5
X-axis servo motor torque	N.m	11
C-axis servo motor torque	N.m	143
Z-axis servo motor torque	N.m	16
Milling head motor power	kw	5.5
X/Z-axis min. feeding unit	mm	0.001
X/Z-axis positioning accuracy	mm	0.01
Processing accuracy of screw-pitch	-	IT7
Roughness of workpiece surface	um	Ra1.6-0.8
Cooling type of cutter	-	Nature
Machine dimension(LxWxH)	mm	3660x1630x1840
CNC system	-	SIEMENS 828D

Specification	Unit	SMK-70
Max. turning diameter over bed	mm	Φ400
Max. cutting diameter of workpiece	mm	Φ70
Max. length of workpiece	mm	1000
Max. milling helix angle	deg	25°
Milling cutter speed	rpm	1200
Spindle taper	-	C8
Spindle hole diameter	mm	82
Milling head motor power	kw	1.5
X-axis motor torque	N.m	4
Z-axis motor torque	N.m	6
C-axis motor power	kw	0.75
X-axis travel	mm	300
X/Z-axis rapid feed speed	mm/min	6000
C-axis speed range	rpm	0.8-18.4
Tailstock quill diameter/travel	mm	Φ70/150
Tailstock quill taper	-	MT5
Number of tools	-	2
Size of tool-shank	mm	16x20
CNC system	-	KND 1000Ti
X/Z-axis min. feed unit	mm	0.001
X/Z-axis positioning accuracy	mm	0.01
Adjustable accuracy of helix angle	′	1
Roughness	um	Ra0.8
Worm-bar accuracy	-	IT7
Machine dimension(LxWxH)	mm	2600x1300x1560
Machine weight	kg	2500
Machining length	mm	750/1000/1500/2000/3000
