High Quality New Carbonated Drinks Making Machine

High Quality New Carbonated Drinks Making Machine thumbnail-1
High Quality New Carbonated Drinks Making Machine thumbnail-2
High Quality New Carbonated Drinks Making Machine thumbnail-3
High Quality New Carbonated Drinks Making Machine thumbnail-4
High Quality New Carbonated Drinks Making Machine photo-1
High Quality New Carbonated Drinks Making Machine photo-2
High Quality New Carbonated Drinks Making Machine photo-3
High Quality New Carbonated Drinks Making Machine photo-4
US$ 5,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated Drink
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for carbonated drinks making machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Carbonated Drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DCGF
Dimension(L*W*H) 2900*2850*3050mm
Weight 2.5T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description High quality new carbonated drinks making machine

Characteristics:

1)Compact conformation, good shape, easy operation, excellent automaticity and poor labour intensity.

2)This machine adops bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.

3)The primary components of the machines are adopted with the world famous products.

4)The parts directly contracted with water are all adopted with food grade stainless steel without dead angle so they can be cleaned easily.

5)Only exchanging start wheel, feeding screw, and arc guide plate while exchanging the model of bottle to be need.

6)High filling speed and mass flow rate, high precision of filling valve and the control of liquid level is accurate without loss.

7)The capping head is adopted magnetic-constant-torque device to ensure the high capping quality without damages.

8)The perfect protection system for overloading can be used to protect the machines and operators effiently.

9)Because of applying touch screen for operation, it is possible to realize man-machine conversation and the status of device running is clear at a glance.

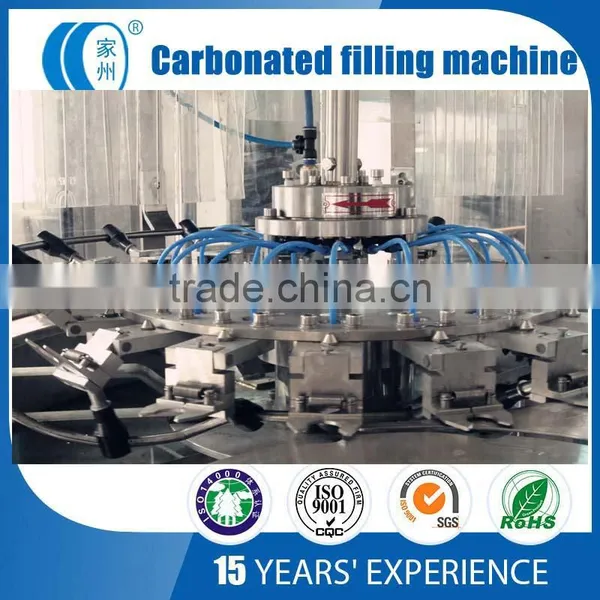

Product display High quality new carbonated drinks making machine

High quality new carbonated drinks making machine



High quality new carbonated drinks making machine



High quality new carbonated drinks making machine

Product Parameters High quality new carbonated drinks making machine
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
High quality new carbonated drinks making machine
