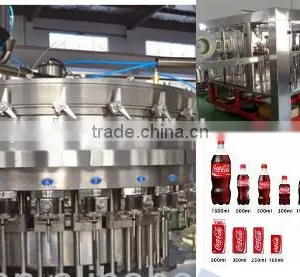

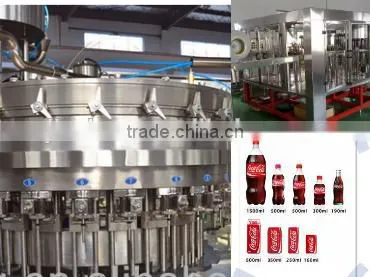

small carbonated drink filling machine/production line
Description
(1)This bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
(2)It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 20000BPH to 28000BPH.
(3)It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4)Adopting suspensory transmission gear can easily upkeep and be repaired.
(5)The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6)It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.
Main technological data
Model: |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-12 |
DCGF40-40-12 |
||
Capacity :500ml |
5000 |
8000 |
12000 |
16000 |
||
Bottle shape: |
roud or square |
|||||
PET bottle: (mm) |
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
|||||
Cap: |
PE srew cap |
|||||
Filling precision: |
≤±5mm |
|||||
Filling pressure:(Mpa) |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
||
Rinsing pressure:(Mpa) |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
0.2-0.25 |
||
Filling volume :(L) |
3.5 |
4 |
6 |
8 |
||
Overall size:(mm) |
2450*1800 *2350 |
2780*2200 *2350 |
3600*2650 *2350 |
3800*2950 *2400 |
||
Weight: (kg) |
3500 |
4500 |
5500 |
6500 |
||
