3 in 1 Monobloc Machine for 4000-6000BPH Carbonated Drink Filling Line
Carbonated drink filling machine is a kind of monobloc machine combining bottling washing, filling and capping.
Bottle washing: The rinsing robot indexes the bottle 180° and activates the rinsing valve to wash bottle inside and outside. Bottles after being rinsed are automatically transferred by a star wheel to the filling station.
Filling: In the filling station the bottles are picked up by the neck and are allocated to individual filling valves. The filling valve is so precise and accurate it gives even filling in bottles. The filled bottles are then transferred to the capping station via a star wheel.
Capping: The bottles automatically move for the capping stage where the caps release from the cap sorting machine on the bottles. The caps are sealed automatically using screw capping heads.
The DCGF18186 is a unique bottling machine with High-Tech features. ‘No bottle no wash, no bottle no fill and no bottle no cap' are the standard features of DCGF models. The entire system is enclosed in a stainless steel / glass outer casing. After the capping stage the bottles are automatically ejected out to the out feed conveyor.
Carbonated Drink Filling Line's Technical Parameter
Model |
DGCF16126 |
DGCF18186 |
DGCF24248 |
DGCF323210 |
Heads of washing,filling, sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
Production capacity |
2000-4000BPH |
4000-6000BPH |
6000-8000BPH |
8000-12000BPH |
Suitable bottle diameter |
Φ=40-80mm, H130-280mm, 330-2500ml |
Φ=50-100mm, H150-320mm, 330-2500ml |
Φ=50-100mm, H=150-320mm, 330-2500ml |
Φ=50-100mm, H=150-320mm, 330-2500ml |
Spraying Position |
5 |
5 |
6 |
7 |
Filling Pressure |
<0.4MPa |
|||
Total Power |
5.03kw |
5.03kw |
6.57kw |
8.07kw |
Stainless steel |
SS304 |
SS304 |
SS304 |
SS304 |
Electric voltage |
380V50Hz |
380V50Hz |
380V50Hz |
380V50Hz |
PLC |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Frequency converters |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Touch screen |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Circuit contactor |
Siemens |
Siemens |
Siemens |
Siemens |
overall dimension |
2100*1500*2200 |
2450*1800*2200 |
2750*2180*2200 |
3600*2200*2600 |
Weight |
2000kg |
3000kg |
4000kg |
5000kg |
Picture Show For Carbonated Drink Filling Line

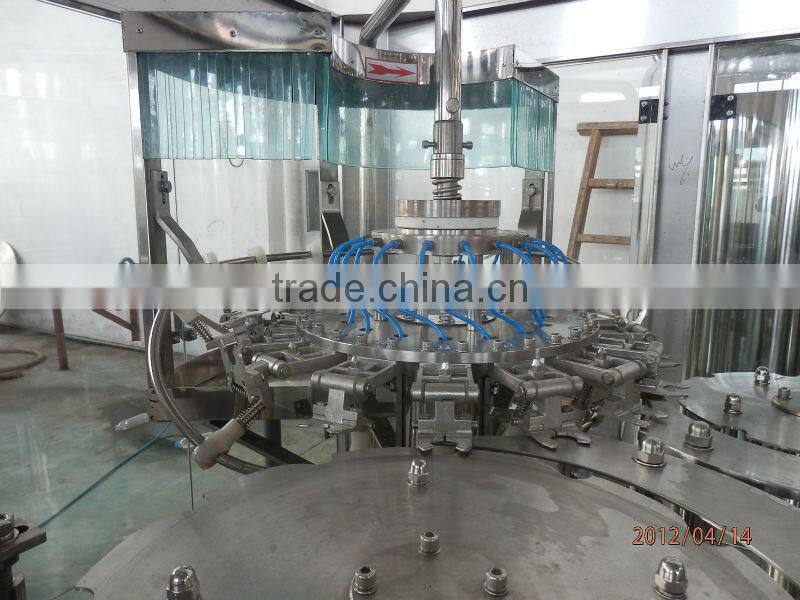

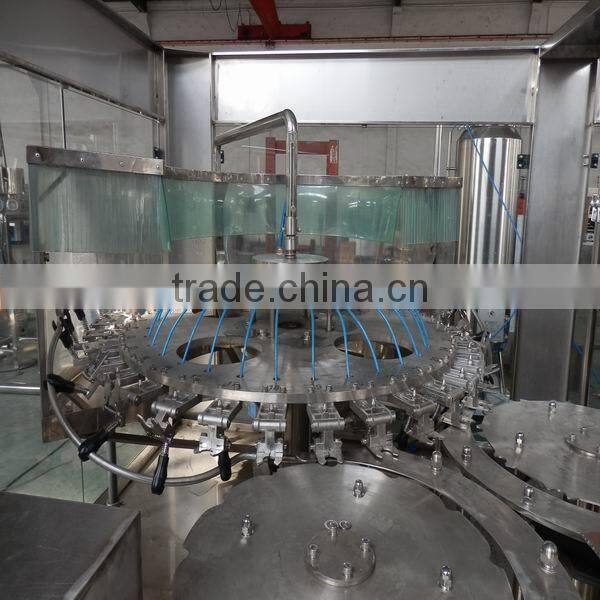

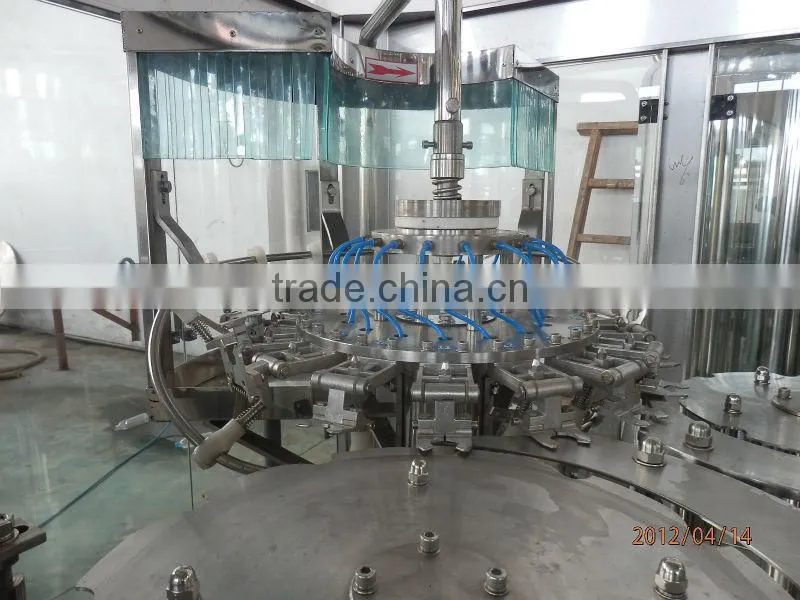

Carbonated Drink Filling Line's Bottle Washing

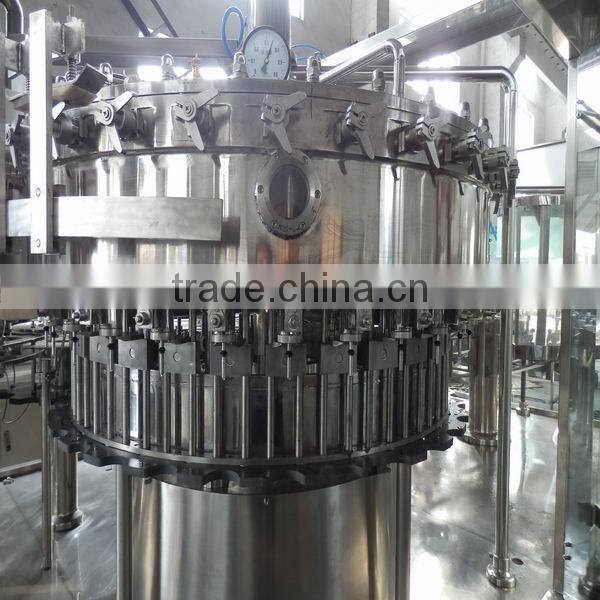

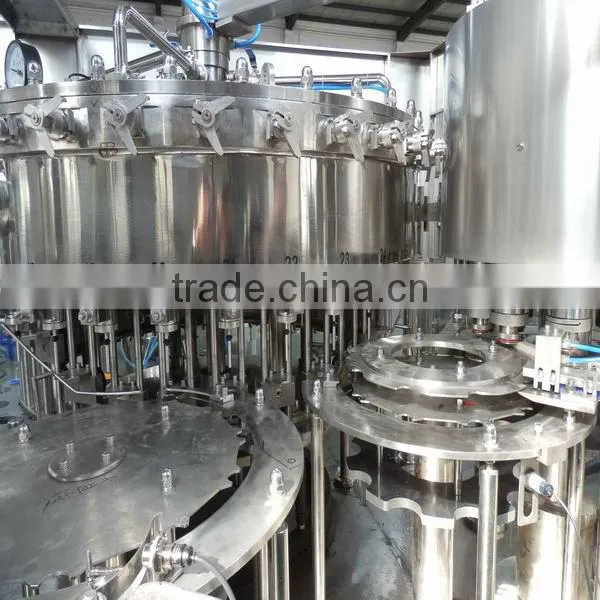

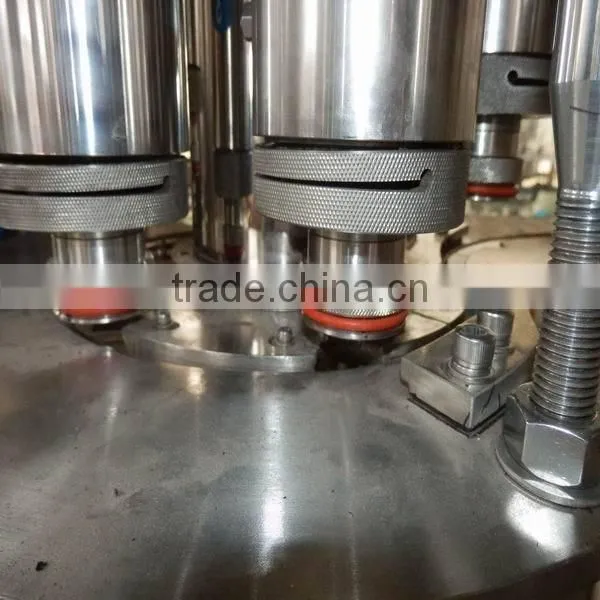

Carbonated Drink Filling Line's Filling

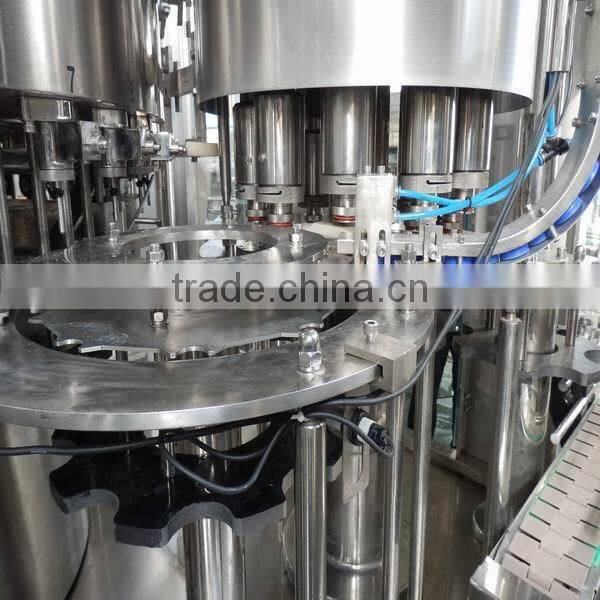

Carbonated Drink Filling Line's Capping

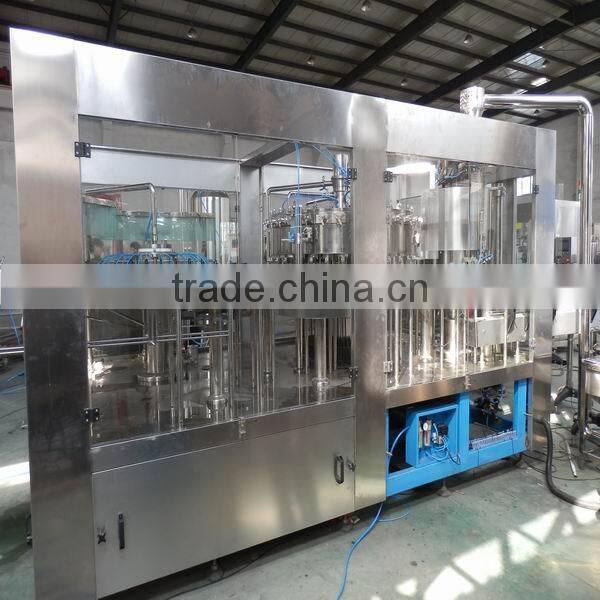

The Monobloc Carbonated Drink Filling Production Line
