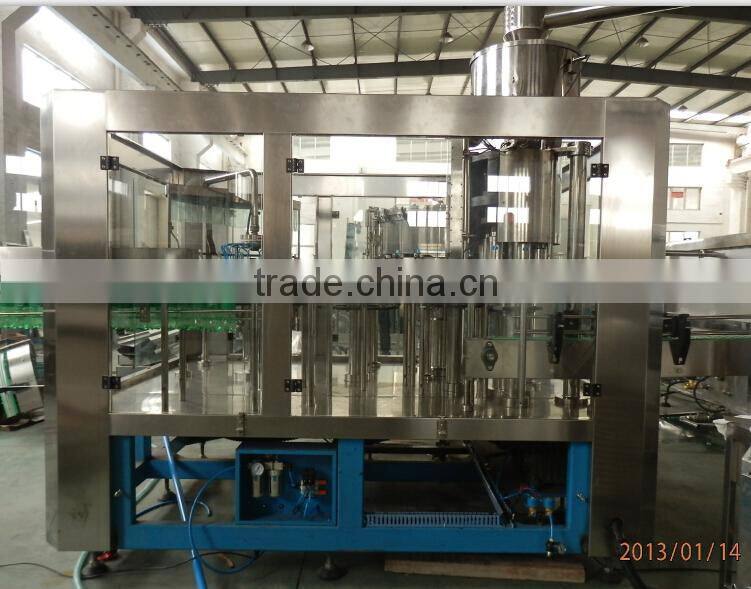

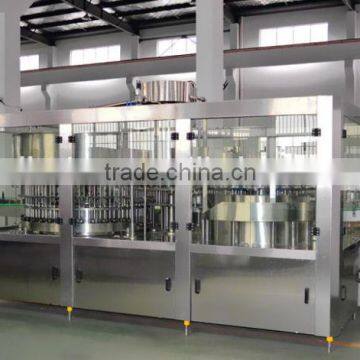

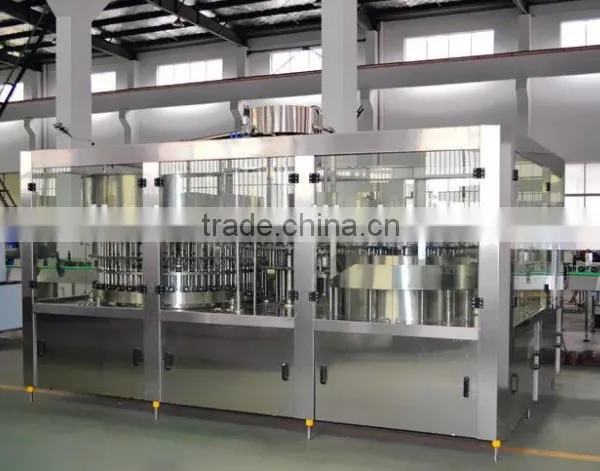

Automatic Carbonated Drink filling machine
Main Parameter:
Model |
DGCF16-12-6 |
DGCF18-18-6 |
DGCF24-24-8 |
DGCF32-32-10 |
Production Capacity(B/H) |
2000-4000 |
4000-6000 |
6000-8000 |
8000-12000 |
Filling Precision |
<=5mm(Liquid Level) |
|||
Filling Pressure(MPa) |
<0.4 |
|||
Polyester Bottle Satandard(mm) |
φ40-φ80 |
Bottle Diameter: φ50-φ100 Height:150-320 |
||
Suitable Cap Shape |
Plastic Screw Cap |
|||
Water Pressure of Washing Bottle(MPa) |
0.18-0.25 |
|||
Water Consumption for Washing Bottle(kg/h) |
1300 |
2000 |
2500 |
3000 |
Spraying Position |
5 |
5 |
6 |
12 |
Dripping Bottle Position |
2.5 |
3.0 |
3.5 |
7 |
Gas Source Pressure(MPa) |
0.4 |
|||
Gas Consumption(m³/min) |
0.3 |
0.4 |
0.4 |
0.5 |
Total Power(kw) |
5.03 |
5.03 |
6.57 |
8.07 |
Total Weight(kg) |
2000 |
3000 |
4000 |
5000 |
Dimension(L*W*H)(mm) |
2100*1500*2200 |
2450*1800*2200 |
2750*2180*2200 |
3600*2200*2600 |
Technical Specification:
1. Composition: Base; Water-Treatment System; Cooler Water Units; Dissolving Units; Blending Units; Deaeration Units; CIP Units; Pipes; Rinser; Filler; Capper
(P.S. : Accessory equipments as bottle blowing machine, shrink wrapper, labeling machine, bottle ink-jet coder, inspection lamp, air conveyor, bottles conveyor, cases conveyor, case ink-jet coder, change parts for various bottles can be supplied here.)
2. Dive Mode: Starwheel Driven (Bottles )
3. Control System: PLC

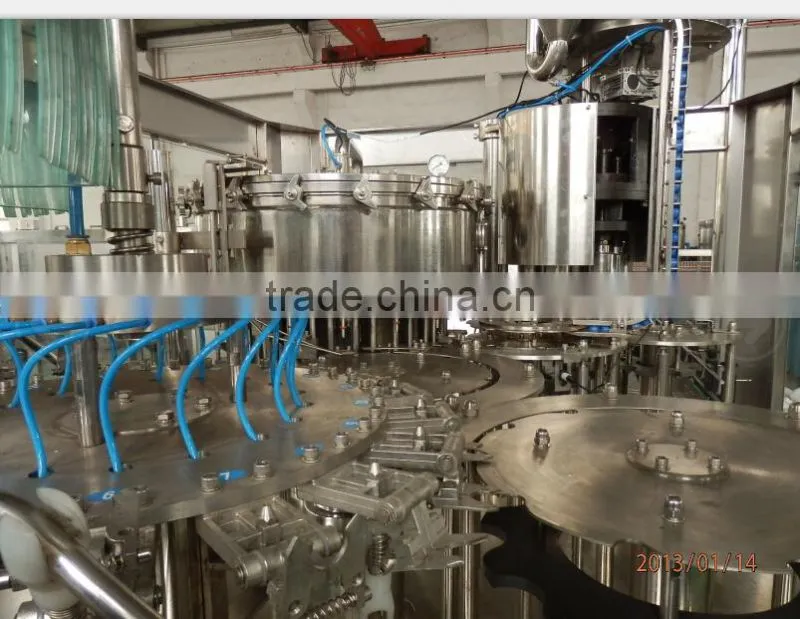

4. Rinser/ Filler/ Capper Monobloc Introduction:
a. Rinser: Rotary; Bottle grippers on starwheel and washing water nozzles equipped; CIP system; (Gripped bottle are turned over and mouth centred above the nozzle spraying water into the bottle, after which bottles are turned to original position.)
b. Filler: Removable filling valves made of food-grade stainless steel and erode-resistant seal ring;
c. Capper: Rotary; Consists of cap hopper, cap feeder and cam-actuating capping heads (Able to raise or lower by a follower riding on a shaped cam).
