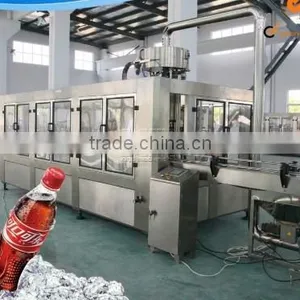

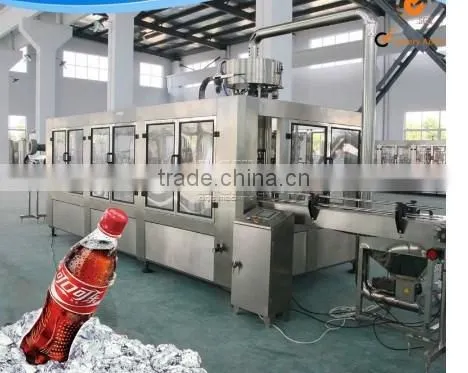

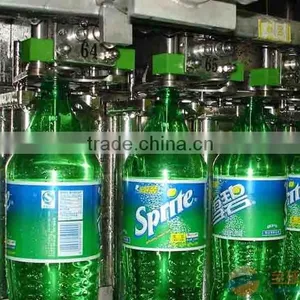

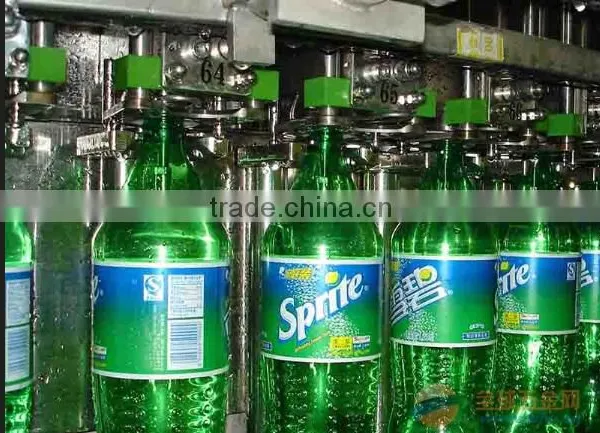

Automatic Soft Drink or Carbonated Drink Filling Line

Automatic Soft Drink or Carbonated Drink Filling Line thumbnail-1
Automatic Soft Drink or Carbonated Drink Filling Line thumbnail-2
Automatic Soft Drink or Carbonated Drink Filling Line thumbnail-3
Automatic Soft Drink or Carbonated Drink Filling Line photo-1
Automatic Soft Drink or Carbonated Drink Filling Line photo-2
Automatic Soft Drink or Carbonated Drink Filling Line photo-3
US$ 20,000 - 40,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Primary Ingredient:
Carbonate
Flavor:
Fruity
Feature:
Normal
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Primary Ingredient Carbonate
Flavor Fruity
Feature Normal
Color Customed
Certification ISO
Packaging Bottle
Volume (L) 0.5
Shelf Life 1 YEAR
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number CGFD

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Automatic Soft drink or Carbonated Drink Filling line
Automatic Soft drink or Carbonated Drink Filling Machine

Introduction:

It is suitable for packing beverage containing gas. Its performance is as follwing: all parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.

Using programmable controller to realize fully automatic control from bottles entering to finishing packing.

Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements.

Adopting equal pressure filling principle and current spring valves in order to assure beverage quality.

Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality .



Product display Automatic Soft drink or Carbonated Drink Filling line

conveyor

Automatic Soft drink or Carbonated Drink Filling line

  washing part



Automatic Soft drink or Carbonated Drink Filling line

  filling machine



Automatic Soft drink or Carbonated Drink Filling line

3  capping machine

Automatic Soft drink or Carbonated Drink Filling line

Automatic 3 in 1 water soft drink liquid filling machine

Automatic Soft drink or Carbonated Drink Filling line



Product Parameters Automatic Soft drink or Carbonated Drink Filling line
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
Automatic Soft drink or Carbonated Drink Filling line
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic Soft drink or Carbonated Drink Filling line

O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic Soft drink or Carbonated Drink Filling line
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic Soft drink or Carbonated Drink Filling line
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.

Automatic Soft drink or Carbonated Drink Filling line
