Automatic Soda Water Manufacturing Plant Price

Automatic Soda Water Manufacturing Plant Price photo-1
Automatic Soda Water Manufacturing Plant Price photo-2

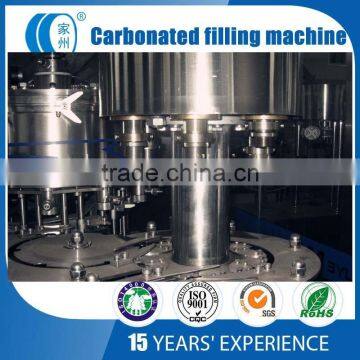

Automatic Soda Water Manufacturing Plant Price photo-3
Automatic Soda Water Manufacturing Plant Price photo-4
US$ 10,000 - 25,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated Drink
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for soda water manufacturing plant
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Other, Beverage, Carbonated Drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DCGF
Dimension(L*W*H) 2600*1900*2550mm
Weight 2.5T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Automatic soda water manufacturing plant price
1. Adopts the negative pressure filling which we specifically design for CSD filling, it ensures minimal loss of CO2 from the product
2. The configuration of filler is advanced, pithy and rational and the driving and up-down transmission is located between the stainless steel working plat and the bracket and their waterproof is good, sanitary and credible and adjusting and maintaining are very easy.
3. We design the filling valves on basis of foreign advanced technique for adapting high-speed hot filling. It can ensure the valves open and close flexibly because of using guide sheath. Adopting easy-fixed configuration, the valve is easy to cleaning promptly and has automatic cleaning function.
4. The electropneumatic filling valves are equipped with interchangeable level tubes to make the best precision filling, and the filling level for the bottle is adjust.
Product display Automatic soda water manufacturing plant price

Automatic soda water manufacturing plant price



Automatic soda water manufacturing plant price



Automatic soda water manufacturing plant price

Product Parameters Automatic soda water manufacturing plant price
Model DCGF
18186
DCGF
24248
DCGF
323212
DCGF
404015
DCGF
505018
DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300
2800×2100
×2300
4200×2300
×2300
5000×2800
×2400
5900×3100
×2400
6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
Automatic soda water manufacturing plant price
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic soda water manufacturing plant price
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic soda water manufacturing plant price
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic soda water manufacturing plant price
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic soda water manufacturing plant price
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic soda water manufacturing plant price
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic soda water manufacturing plant price
