Small capacity sparkling drink filling equipment manufacturer

FOB Price

USD $1,000 - $9,000 / Unit

1 Unit(Min.Order)

Supply Ability 15 Unit / Units per Month
Port FOB Shanghai for sparkling drink filling equipment
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Beverage, Other, Beverage, Carbonated Drink	Packaging Type:	Bottles
Packaging Material:	Plastic	Automatic Grade:	Semi-Automatic	Driven Type:	Electric
Voltage:	220V	Power:	2.2KW	Place of Origin:	Jiangsu, China
Brand Name:	JZ	Model Number:	DCGF	Dimension(LWH):	210014002300mm
Weight:	1T	Certification:	CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

P/roduct information

Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description

We provide series of carbonated drink filling machine, csd filling machine for the carbonated soft drink plant for bottle filling machine, Soft Drink Filling Machine, Carbonated beverage Filling Machine.
1. Material: The material which contact directly with the liquid is the SUS304 (Food grade), made in China. The 3-in-1 is mainly used to fill pure water,Mineral water,carbonated drinks,wine and juice, tea etc.2. This machine is maily for filling carbonated beverage, like Fenda,sprite,coca cola.

A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens.
These series carbonated drink filling machine can handle max 3 liter pet bottle. Welcome to inspect Carbonated Drink Filling Machine in our factory.

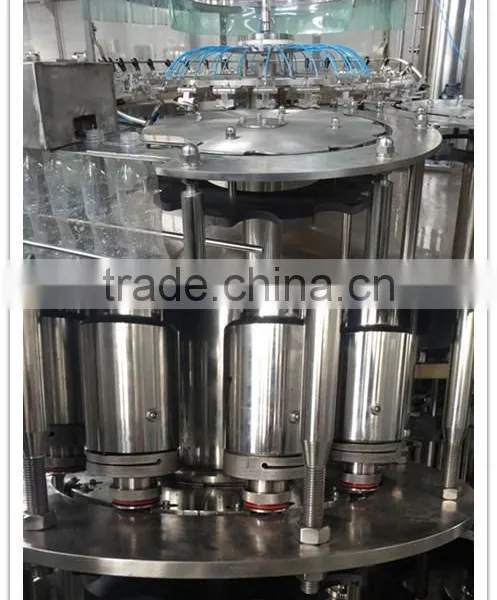

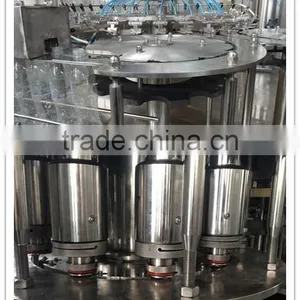

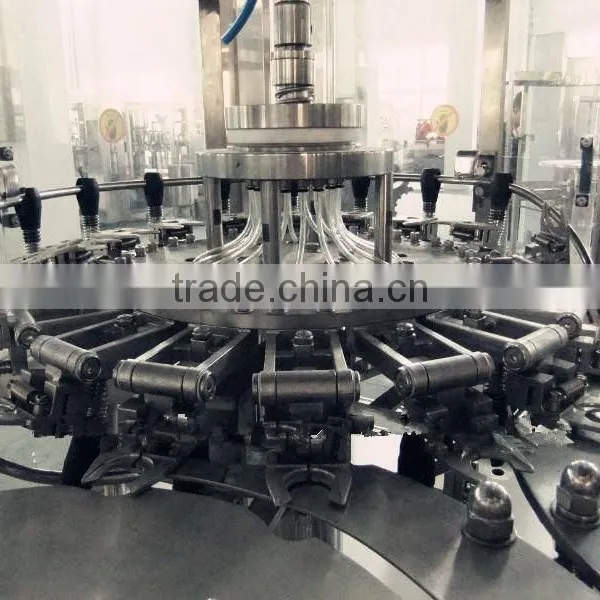

Product display

Product Parameters

Model	DCGF 18186	DCGF 24248	DCGF 323212	DCGF 404015	DCGF 505018	DCGF 606020
Head of washing, filling, sealing	18-18-6	24-24-8	32-32-8	40-40-10	50-50-18	60-60-20
Production capacity (bottle/hour)	3000-4000	5000-6000	7000-8000	9000-10000	11000-12000	15000
Suitable bottle diameter(mm)	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml	φ=50-100 H=150-310 330-1500ml
Filling precision	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm	≤±5mm
Motor power	3.84kw	4.1kw	5.6kw	7.5kw	9kw	11kw
Filling pressure	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4	≤0.4
Overall dimension (mm)	2400×1900 ×2300	2800×2100 ×2300	4200×2300 ×2300	5000×2800 ×2400	5900×3100 ×2400	6500×3500 ×2400
Weight(Kg)	3000	4000	5000	7500	9000	11000

C/ompany information	Zhangjiagang Jiazhou Machinery Co., Ltd.

O/ur advantage	Zhangjiagang Jiazhou Machinery Co., Ltd.

O/ur certificate	Zhangjiagang Jiazhou Machinery Co., Ltd.

N/etwork Marketing	Zhangjiagang Jiazhou Machinery Co., Ltd.

P/ackaging & shipping	Zhangjiagang Jiazhou Machinery Co., Ltd.

C/ontact us	Zhangjiagang Jiazhou Machinery Co., Ltd.

Contact Us

Zhangjiagang Jiazhou Machinery Co., Ltd.: Contact nameLinda Zhu; Phone86-512-58531610; AddressSanxing Development Zone, Jinfeng Town, Zhangjiagang
