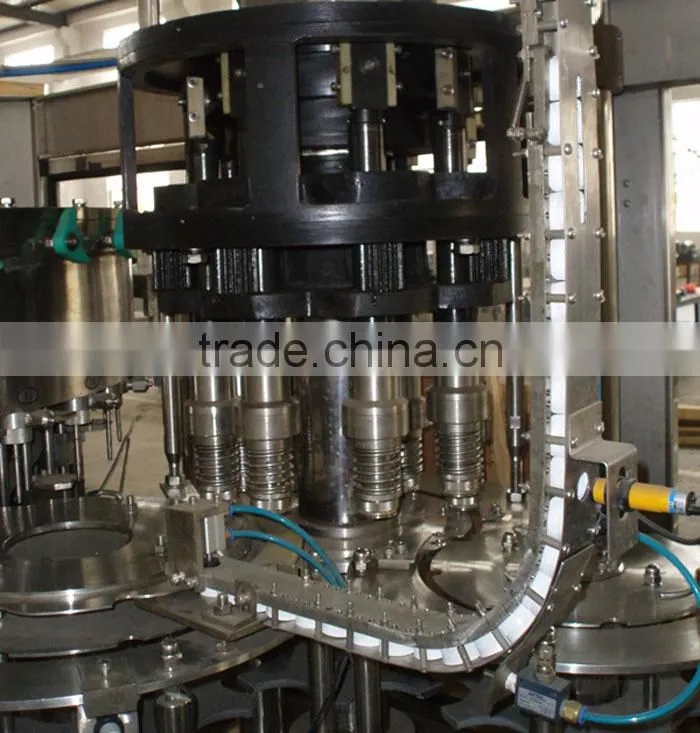

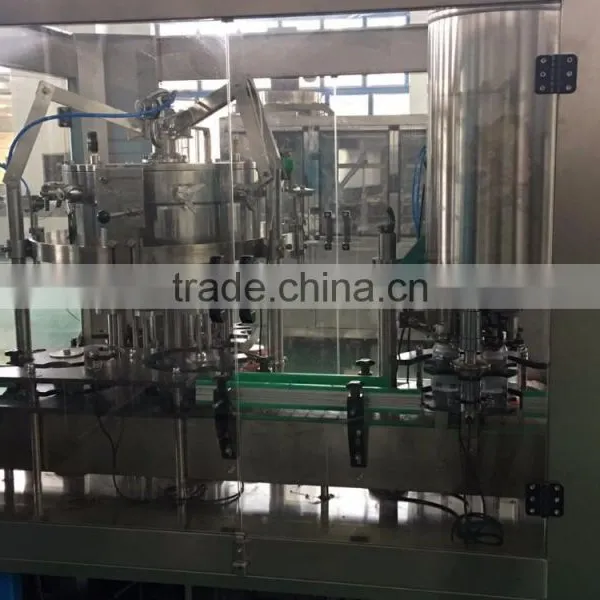

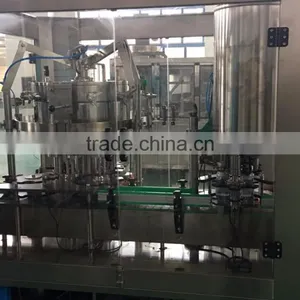

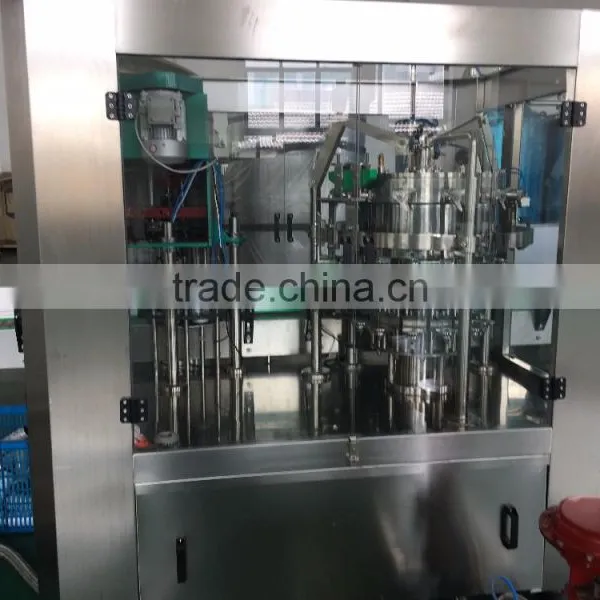

DGCF Carbonated Drink Balanced Pressure Filling Bottling Machine

Model

DGCF16-12-6

DGCF18-18-6

DGCF24-24-8

DGCF32-32-10

Production Capacity(B/H)

2000-4000

4000-6000

6000-8000

8000-12000

Filling Precision

<=5mm(Liquid Level)

Filling Pressure(MPa)

<0.4

Polyester Bottle Satandard(mm)

φ40-φ80

Bottle Diameter: φ50-φ100 Height:150-320

Suitable Cap Shape

Plastic Screw Cap

Water Pressure of Washing Bottle(MPa)

0.18-0.25

Water Consumption for Washing Bottle(kg/h)

1300

2000

2500

3000

Spraying Position

5

5

6

12

Dripping Bottle Position

2.5

3.0

3.5

7

Gas Source Pressure(MPa)

0.4

Gas Consumption(m³/min)

0.3

0.4

0.4

0.5

Total Power(kw)

5.03

5.03

6.57

8.07

Total Weight(kg)

2000

3000

4000

5000

Dimension(L*W*H)(mm)

2100*1500*2200

2450*1800*2200

2750*2180*2200

3600*2200*2600
