Soft Drink Machine/Carbonated Drink Bottling Line

Soft Drink Machine/Carbonated Drink Bottling Line thumbnail-1
Soft Drink Machine/Carbonated Drink Bottling Line thumbnail-2
Soft Drink Machine/Carbonated Drink Bottling Line thumbnail-3
Soft Drink Machine/Carbonated Drink Bottling Line photo-1
Soft Drink Machine/Carbonated Drink Bottling Line photo-2
Soft Drink Machine/Carbonated Drink Bottling Line photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V/220V
Power 8.07kw
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number DGCF
Dimension(L*W*H) 3600*2200*2600mm
Weight 2000kg
Certification CE,ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Soft Drink Machine/Carbonated Drink Bottling Line
P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Soft Drink Machine/Carbonated Drink Bottling Line
Full automatic carbonated soft drink filling machine (Hot sale)
We supply full automatic carbonated soft drink filling machine.
We supply complete carbonated soft drink production line (for 15years). It is plastic bottle packaging line. We have
1000-2000bottles/hour, 3000-4000bottles/hour, 5000bottles/h, 10000bottles/hour and so on, which capacity would
you prefer?
Please mail us below and I will send quotation with detailed pictures & technical data to your email. thank you!

Complete carbonated drinks production line include water treatment system, sugar melting tank, flavour blending tank,
Co2 drink mixer, water chiller, bottle filling and packing system and so on.

Main equipments as below:
1. Water treatment system (quartz sand filter, active carbon filter, softner, RO system and so on)
2. Ozone generator sterilizer
3. Aseptic water storage tank
4. Sugar melting tank & syrup filter
5. Flavour blending tank & syrup cooler
6. Co2 drink mixer & Co2 filter
7. Water chiller
8. Auto bottle washing, filling and capping line
9. Labeling machine
10. Date of manufacture printer
11. Final products film packaging machine and so on.
Product display Soft Drink Machine/Carbonated Drink Bottling Line

Washing



Soft Drink Machine/Carbonated Drink Bottling Line

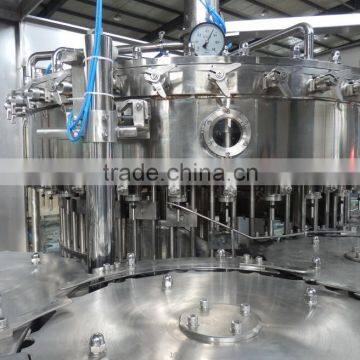

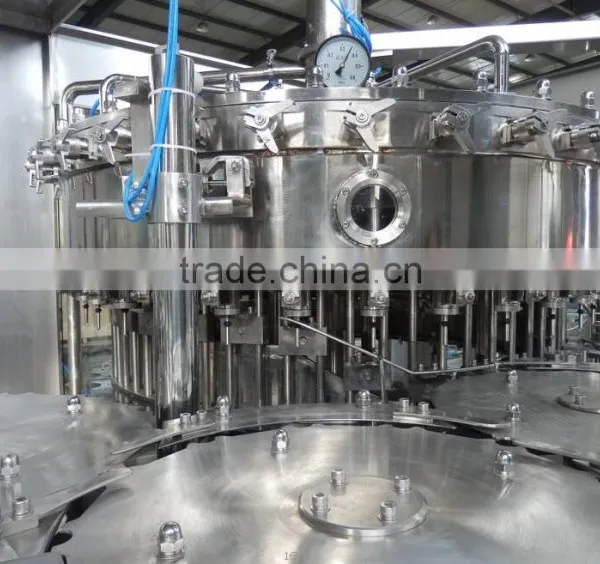

filling



Soft Drink Machine/Carbonated Drink Bottling Line



capping



Soft Drink Machine/Carbonated Drink Bottling Line





Product Parameters Soft Drink Machine/Carbonated Drink Bottling Line
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
Soft Drink Machine/Carbonated Drink Bottling Line
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Soft Drink Machine/Carbonated Drink Bottling Line
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Soft Drink Machine/Carbonated Drink Bottling Line
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Soft Drink Machine/Carbonated Drink Bottling Line
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Soft Drink Machine/Carbonated Drink Bottling Line
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Soft Drink Machine/Carbonated Drink Bottling Line
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Soft Drink Machine/Carbonated Drink Bottling Line
