Factory Supply Carbonated Water Machine Manufacturer

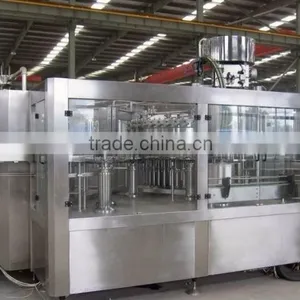

Factory Supply Carbonated Water Machine Manufacturer thumbnail-1
Factory Supply Carbonated Water Machine Manufacturer thumbnail-2
Factory Supply Carbonated Water Machine Manufacturer thumbnail-3
Factory Supply Carbonated Water Machine Manufacturer photo-1
Factory Supply Carbonated Water Machine Manufacturer photo-2
Factory Supply Carbonated Water Machine Manufacturer photo-3
US$ 1,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated Drink
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for carbonated water machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Carbonated Drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DCGF
Dimension(L*W*H) 2500*1700*2650mm
Weight 1.5T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Factory supply carbonated water machine manufacturer

Main features
1.This machine has a compact structure, completed control system, easy to operate and highly automated.
2.By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.
3.The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.
4.By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
5.The machine adopts high effective cap sorting system and completely self control and protective device.
6.The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
7.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
8.The electric components and pneumatic components are all introduced from world famous brand products.

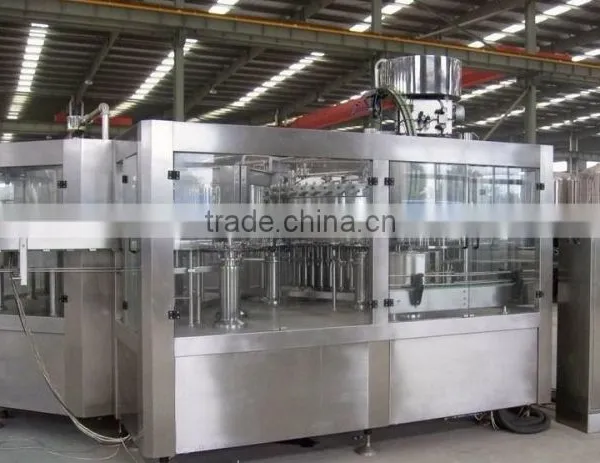

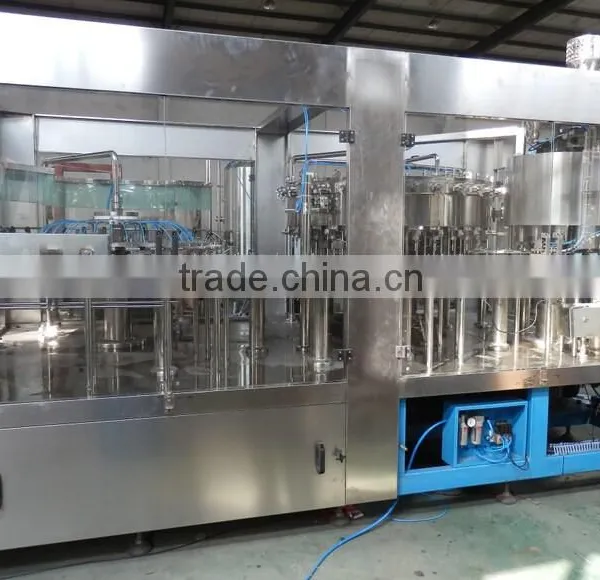

Product display Factory supply carbonated water machine manufacturer

Factory supply carbonated water machine manufacturer



Factory supply carbonated water machine manufacturer

Product Parameters Factory supply carbonated water machine manufacturer
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
Factory supply carbonated water machine manufacturer
C/ompany information Zhangjiagang Jiazhou Machinery Co., Ltd.
Factory supply carbonated water machine manufacturer
O/ur advantage Zhangjiagang Jiazhou Machinery Co., Ltd.
Factory supply carbonated water machine manufacturer
O/ur certificate Zhangjiagang Jiazhou Machinery Co., Ltd.
Factory supply carbonated water machine manufacturer
N/etwork Marketing Zhangjiagang Jiazhou Machinery Co., Ltd.
Factory supply carbonated water machine manufacturer
P/ackaging & shipping Zhangjiagang Jiazhou Machinery Co., Ltd.
Factory supply carbonated water machine manufacturer
C/ontact us Zhangjiagang Jiazhou Machinery Co., Ltd.
Factory supply carbonated water machine manufacturer
