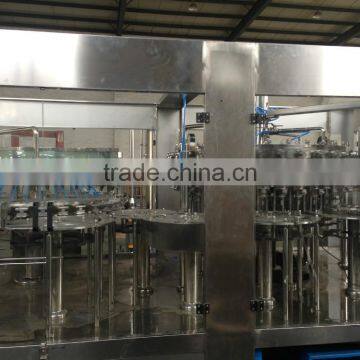

Automatic Soft drink or Carbonated Drink Filling Machine
- Rinser / filler / capper monobloc
- Bottle material: PET, glass, metal
- Bottle volume: 250ml - 2500ml
- Production capacity: 2000-15000bph
- We Can design according to customers' demands
- We can supply complete filling line solution and filling machines for carbonated soft drinks
Introduction
Bottles are entered by the air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way
- Adopting clamping bottleneck fashion to wash bottle mouth and avoid touching screw mouth, when bottle type changes, you need to change the board related with bottle diameter
- Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
- Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle.
- The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.
Parameters
Model |
DGZ14-12-5 |
DGZ18-18-6 | DGZ24-24-8 |
DGZ32-32-8 |
DGZ40-40-10 |
Production Capability |
2000-3000 |
4000-6000 |
7000-8000 |
8000-12000 |
12000-15000 |
Filling precision |
≤+5mm(Liguid Level) |
||||
Filling pressure |
≤0.4 |
||||
PET bottle specification |
(Bottle diameter):Ø50- Ø100;(Height):150-310 |
||||
Suitable cap shape |
Plastic Screw Cap |
||||
Total Power(kw) |
2.2 |
3.5 |
4.5 |
5.5 |
5.5 |
Washing heads |
14 |
18 |
24 |
32 |
40 |
| filling heads | 12 | 18 |
24 |
32 |
40 |
Processing Line
Raw water tank → water pump →Silica sand filter →Active carbon filter→ Softener→ Precision filter→ Reverse Osmosis→ Ozone generator with Ozone generator
→Pure water tank → Processing System(Syrup Melting Machine-Syrup Pump-Syrup Filter-Mixing Tank-Beverage Pump-Double Filter-Beverage Mixing Machine-Water Chiller-Pipes and valves-Control Cabinet)→Filling System(Washing,Filling,Capping 3 in 1+Light Check)→Bottle labeling machine →Bottle packing machine
Automatic Soft drink or Carbonated Drink Filling Machine
- Rinser / filler / capper monobloc
- Bottle material: PET, glass, metal
- Bottle volume: 250ml - 2500ml
- Production capacity: 2000-15000bph
- We Can design according to customers' demands
- We can supply complete filling line solution and filling machines for carbonated soft drinks
Introduction
Bottles are entered by the air conveyor, the speed of bottle entering is fast and bottle shape isn’t changed because of adopting hanging clamping bottleneck way
- Adopting clamping bottleneck fashion to wash bottle mouth and avoid touching screw mouth, when bottle type changes, you need to change the board related with bottle diameter
- Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
- Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle.
- The PLC and transducer are chosen from international famous brand, such as OMRON, MITSUBISHI and so on.
Parameters
Model |
DGZ14-12-5 |
DGZ18-18-6 | DGZ24-24-8 |
DGZ32-32-8 |
DGZ40-40-10 |
Production Capability |
2000-3000 |
4000-6000 |
7000-8000 |
8000-12000 |
12000-15000 |
Filling precision |
≤+5mm(Liguid Level) |
||||
Filling pressure |
≤0.4 |
||||
PET bottle specification |
(Bottle diameter):Ø50- Ø100;(Height):150-310 |
||||
Suitable cap shape |
Plastic Screw Cap |
||||
Total Power(kw) |
2.2 |
3.5 |
4.5 |
5.5 |
5.5 |
Washing heads |
14 |
18 |
24 |
32 |
40 |
| filling heads | 12 | 18 |
24 |
32 |
40 |
Processing Line
Raw water tank → water pump →Silica sand filter →Active carbon filter→ Softener→ Precision filter→ Reverse Osmosis→ Ozone generator with Ozone generator
→Pure water tank → Processing System(Syrup Melting Machine-Syrup Pump-Syrup Filter-Mixing Tank-Beverage Pump-Double Filter-Beverage Mixing Machine-Water Chiller-Pipes and valves-Control Cabinet)→Filling System(Washing,Filling,Capping 3 in 1+Light Check)→Bottle labeling machine →Bottle packing machine

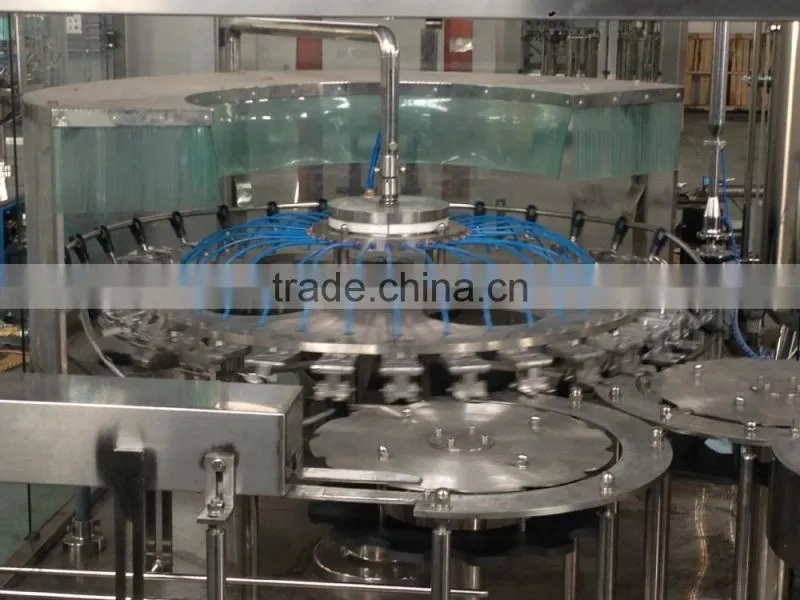

Carbonated Bottle Washing Filling Capping Machine's washing part

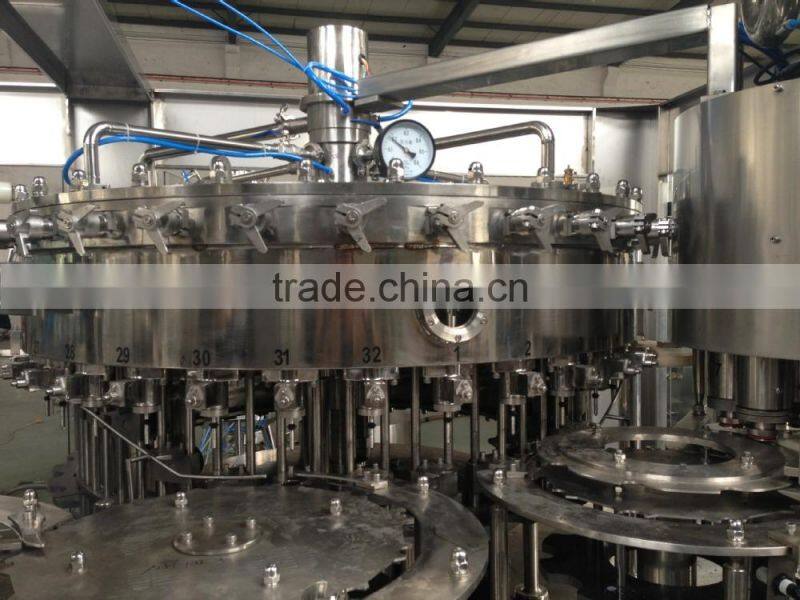

Carbonated Bottle Washing Filling Capping Machine's filling part

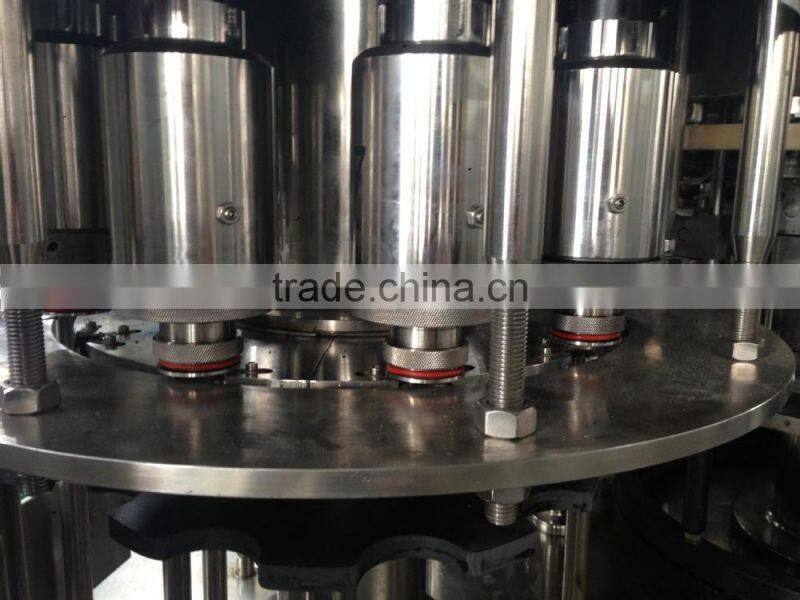

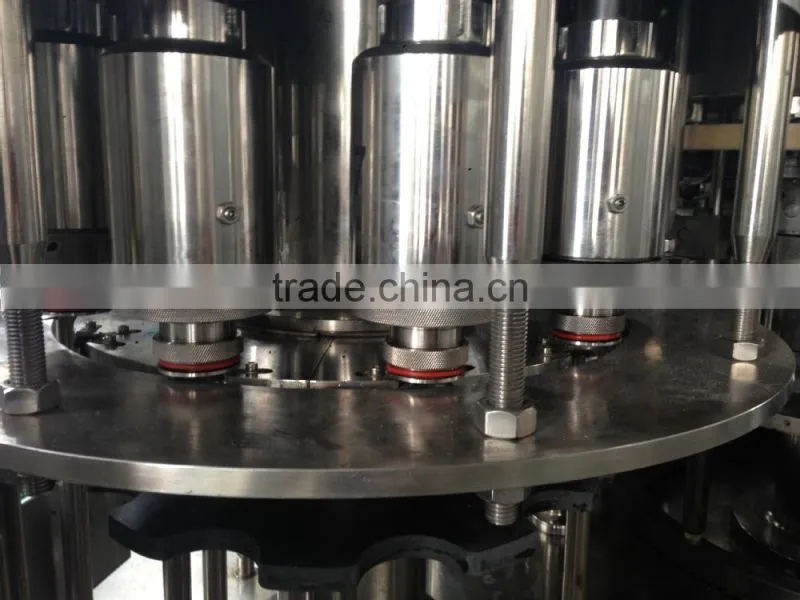

Carbonated Bottle Washing Filling Capping Machine's capping part

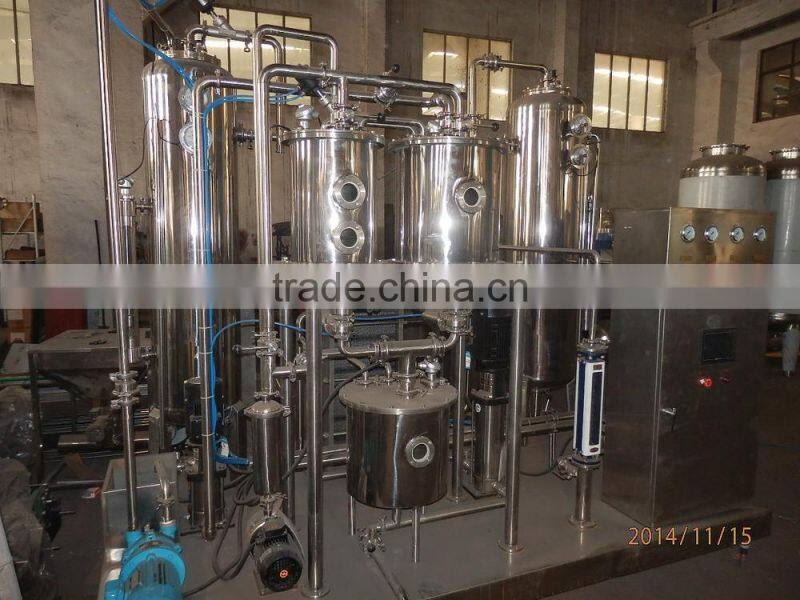

related machine--------co2 mixer
warmer machine
ink jet printer
PE film packing
WATER TREATMENT:
1. stretch film packaging to save container space
2. standard wooden case to protect machine's important part.
Our Service:
1. one year gurantee, free charge for spare parts in warranty.
2. engineer available to service overseas.
3. good quality competitive price. ISO9001:2008 and BV certificate
Company Information
Company Introduction
Zhangjiagang Jiazhou Machinery Co.,Ltd is a manufacturer in beverage machine field for about 15 years. She has her own factory which is founded in year of 1998. Her sale company Zhangjiagang Jiazhou Machinery Company Limited is set up in 2005. Jiazhou has entered into international trade in 2008, now is 7 years old on Alibaba.
Jiazhou has well cooperated with many clients in many countries and areas, such as Kenya, Nigeria, Malaysia, Vietnam, Bangladesh, Ghana, Madagascar, and Middle East Area. She also has popular market in China, received very good reputation.
Jiazhou shall make progress with clients and market. Her aim is to establish credibility and pursue specialized quality and service. Choose Jiazhou as business partner, you can get assured about the quality.
FAQ
Q1. The material for making machine is SS210 or SS304? Can I ask for SS316 material?
A1: We never use SS210, material for beverage machines should be good.
Price for SS316 is much higher than SS304, if you could accept the price, it is ok surely.
Q2. How can I make sure the quality of the machine?
A2: We promise quality and have one-year guarantee, and you can come to inspect the machines.
Q3. My country has standards for the machines, they need to have ***certicate, do you have?
A3: We now have BV/ISO9001:2008 certificate. Please tell us your standard, we shall apply for that certificate.
If you are interested or any question, welcome to contact us.
Our Service and Working Process
Pre- sales Phase: we have sales representative to communicate with our client to understand client needs and based on our experience, capacity to initiate the draft proposal for our client review. With the proposal review, analysis and improvement, we will finalize our proposal with our clients.
Production Phase: We have very strong filing machine business experience and downstream/upstream partnership. Under the criteria of customized quality, our good production scheduling will make sure our client filling machine will be delivered in time.
After-sales:We will documentation our client information for each sale and will continue effective communication even after deal. We will review the whole process to enhance our experience and make sure we can serve our client better and better.
Main market:
North America/South America/Southeast Asia/Africa/Mid East/South Asia
Main customers:
Mexico/ Brazil/ USA/ Egypt/Morocco/ Colombia/ Vietnam/Venezuela
