Factory Supply Carbonated Drink Filling Machine Price

Factory Supply Carbonated Drink Filling Machine Price thumbnail-1
Factory Supply Carbonated Drink Filling Machine Price thumbnail-2
Factory Supply Carbonated Drink Filling Machine Price thumbnail-3
Factory Supply Carbonated Drink Filling Machine Price photo-1
Factory Supply Carbonated Drink Filling Machine Price photo-2
Factory Supply Carbonated Drink Filling Machine Price photo-3
US$ 1,200 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Carbonated Drink
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiazhou Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for carbonated drink filling machine price
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Other, Beverage, Carbonated Drink
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number DCGF
Dimension(L*W*H) 2700*2450*2850mm
Weight 2.5T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Factory supply carbonated drink filling machine price

DCGF Series 3in1 unit Carbonated Drink Filling Machine is mainly used for filling carbonated beverage such as Coca cola, Pepsi-cola, Sprite drink, The machine is most applied for plastic PET bottle, it can be easily adjusted to fill various shape and volume of bottles,

The machine combines washing unit, filling unit, capping unit in one machine, it can fulfill the washing, filling capping automatically, Bottles are fed into the washing machine in order by conveyor, then the bottles are turned over and washed inside by the nozzles. After dripping in line, bottles will be fed to the filling machine automatically to fill liquid with high speed and fixed quantity. After that, the filled bottles will be capped by the automatic capping machine and then be transported to the labeling and packing process,

The machine adopt balanced pressure filling, the filling operation is faster and liquid level is precise and accurate,

The machine use advanced technology and design from Italy and Germany, The appearance is beautiful and design of machine is scientific, its operation and maintenance is convenient, with high automation.

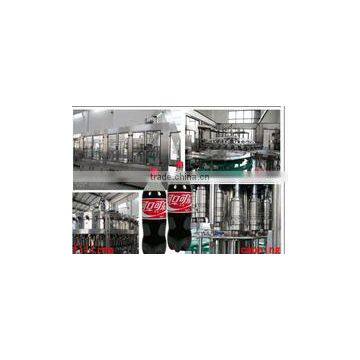

Product display Factory supply carbonated drink filling machine price

Factory supply carbonated drink filling machine price



Factory supply carbonated drink filling machine price

Product Parameters Factory supply carbonated drink filling machine price
Model DCGF
18186		 DCGF
24248		 DCGF
323212		 DCGF
404015		 DCGF
505018		 DCGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300		 2800×2100
×2300		 4200×2300
×2300		 5000×2800
×2400		 5900×3100
×2400		 6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
