glass bottles washing filling capper machine
1.The series equipment as used in producing drink containde with glass bottles.Washing filling and sealing can be carride out on the same machine.
2.The speed of filling is fast and the liquid amount is controlled accurately.The filling device can be stopped automatically when there is on bottle or bottles are damaged.Pneumatic valve and damped gears are used for bottle conveying,the noise is low and the whole machine runs smoothly.
3.The whole machine is controlled by PLC with touch-screen as the interface between human and machine.The amount of the drinks in the drink tank can be controlled automatically.The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available,the machine can be stopped automatically.
| mode | BGCF16-12-6 | BGCF18-18-6 | BGCF24-24-8 | BGCF32-32-10 |
Production capacity |
2000-4000 | 4000-6000 | 6000-8000 | 8000-12000 |
| Filling precision | ≤±5mm(Liquid level | |||
Filling Pression(MPa) |
<0.4 | |||
Polyester bottle standard(mm) |
Bottle Diameteφ40-φ80 |
Bottle Diameter:φ50-φ100 Height:150-320 |
||
| Suitable cap Shape | crown cap | |||
| Water pressure of washing bottle | 0.18-0.25 | |||
| Water comsumption fou Water bottle(kg/h) | 1300 | 2000 | 2500 | 3000 |
| Spraying Position | 5 | 5 | 6 | 12 |
| Dripping bottle position | 2.5 | 3.0 | 3.5 | 7 |
| Gas Source Pressure | 0.4 | |||
| Gas Consumption | 0.3 | 0.4 | 0.4 | 0.5 |
| Total power(kw) | 5.03 | 5.03 | 6.57 | 8.07 |
| Total weight(kg) | 2000 | 3000 | 4000 | 5000 |
| Dimension(L*W*H) | 2100*1500*2200 | 2450*1800*2200 | 2450*2180*2200 | 3600*2200*2600 |
Washing part

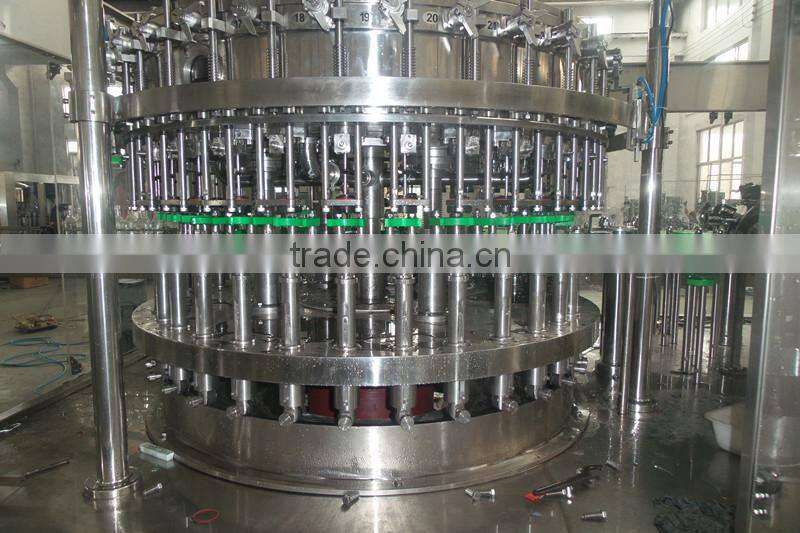

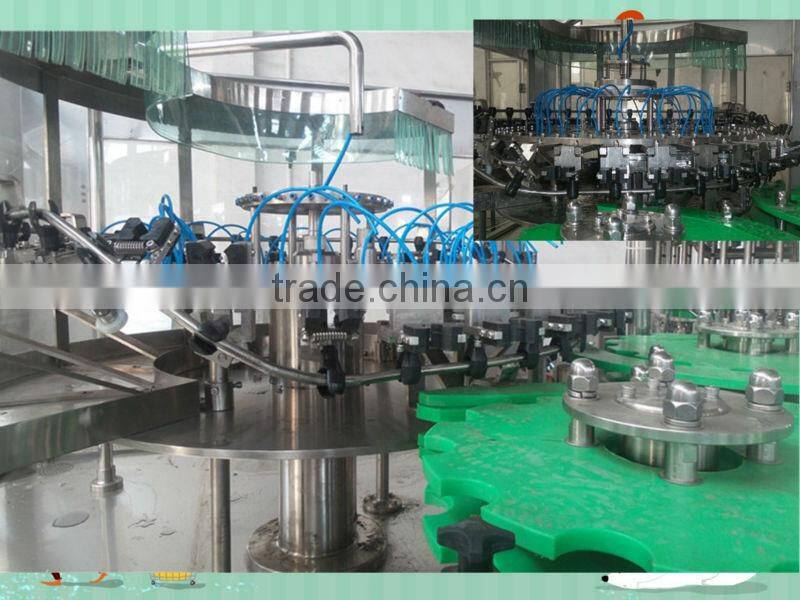

Filling part

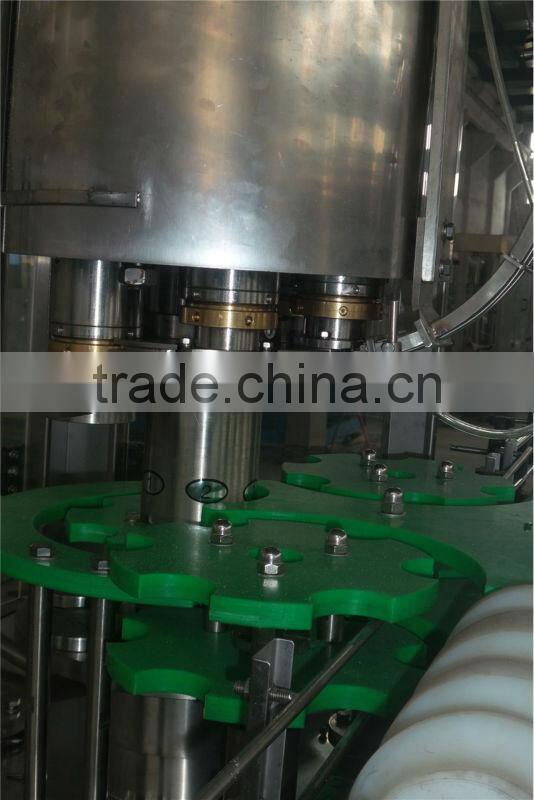

capping part

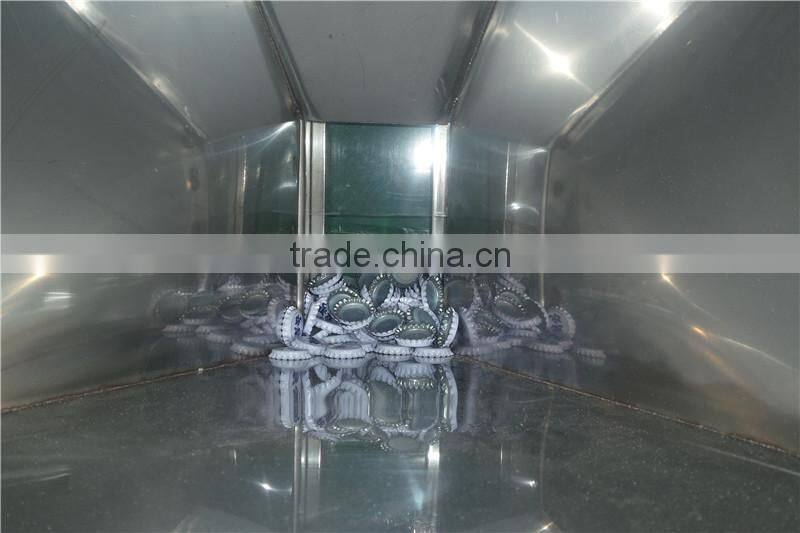

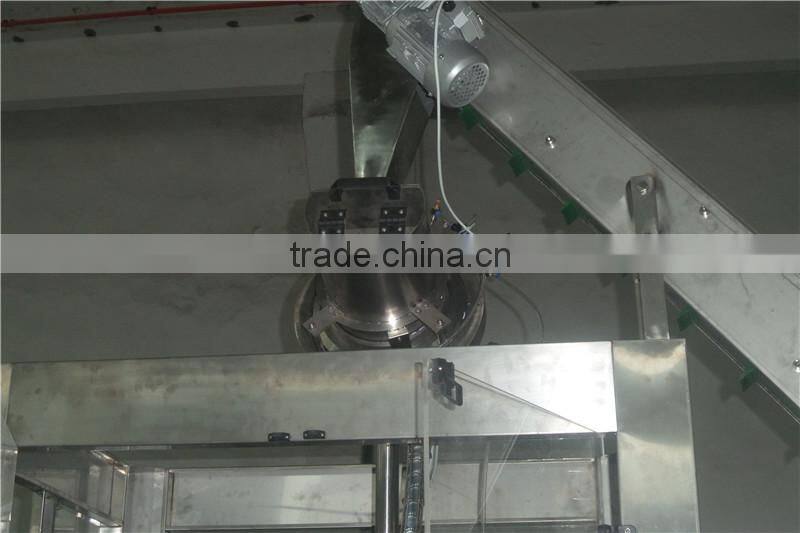

More aboat capper
1. stretch film packaging to save container space
2. standard wooden case to protect machine's important part.
1. one year gurantee, free charge for spare parts in warranty.
2. engineer available to service overseas.
3. good quality competitive price. ISO9001:2008 and BV certificate
Zhangjiagang Jiazhou Machinery Co.,Ltd is a manufacturer in beverage machine field for about 15 years. She has her own factory which is founded in year of 1998. Her sale company Zhangjiagang Jiazhou Machinery Company Limited is set up in 2005. Jiazhou has entered into international trade in 2008, now is 7 years old on Alibaba.
Jiazhou has well cooperated with many clients in many countries and areas, such as Kenya, Nigeria, Malaysia, Vietnam, Bangladesh, Ghana, Madagascar, and Middle East Area. She also has popular market in China, received very good reputation.
Jiazhou shall make progress with clients and market. Her aim is to establish credibility and pursue specialized quality and service. Choose Jiazhou as business partner, you can get assured about the quality.
Q1. The material for making machine is SS210 or SS304? Can I ask for SS316 material?
A1: We never use SS210, material for beverage machines should be good.
Price for SS316 is much higher than SS304, if you could accept the price, it is ok surely.
Q2. How can I make sure the quality of the machine?
A2: We promise quality and have one-year guarantee, and you can come to inspect the machines.
Q3. My country has standards for the machines, they need to have ***certicate, do you have?
A3: We now have BV/ISO9001:2008 certificate. Please tell us your standard, we shall apply for that certificate.
If you are interested or any question, welcome to contact us.
