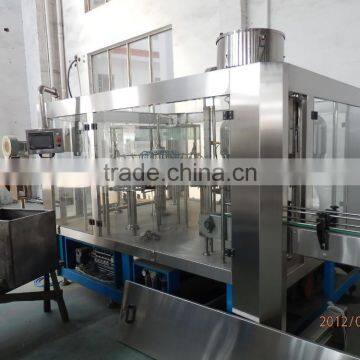

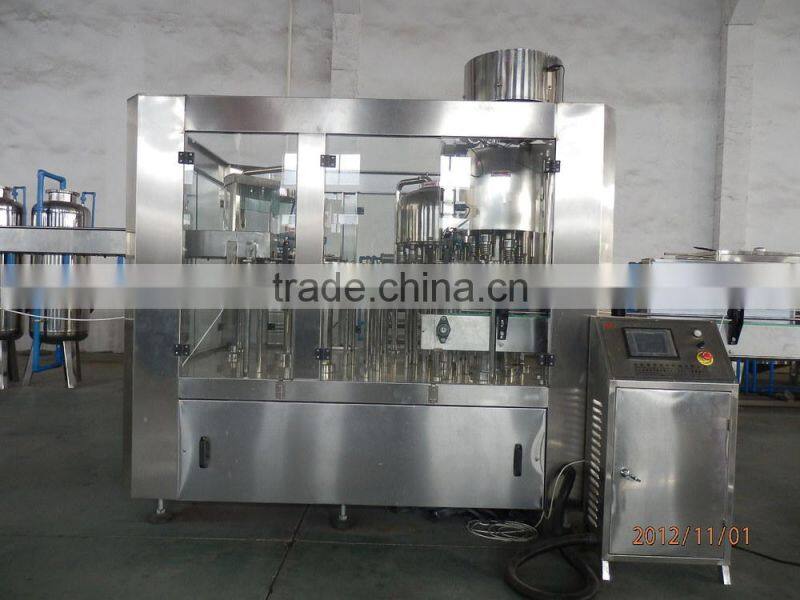

Rotary Water Filling Line / Rotary Pure Water Filling Machine
CGF Type Water Rinsing Filling Capping 3-in-1 Machine
CGF series machine is a full automatic multi functional combined machine group integrating washing, filling and covering develop
Introductions:
The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production Capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000 |
| Filling Precision | ≤ ±5mm(Liquid level) | |||
| Polyester Bottle Standard(mm) | Bottle Diameterφ40-φ80;Height130-280 | Bottle Diameterφ50-φ100;Height150-320 | ||
| Suitable Cap Shape | Plastic Screw Cap | |||
| Water Pressure of Washing Bottle(Mpa) | 0.18 | |||
| Water Consumption for Water Bottle(kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying Position | 5 | 5 | 6 | 12 |
| Dripping Bottle Position | 3 | 3 | 3.5 | 7 |
| Gas Source Pressure(Mpa) | Normal Presssure | |||
| Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total Power(kw) | 4.23 | 5.03 | 6.57 | 8.63 |
| Total Weight(kg) | 2000 | 3500 | 5500 | 8000 |
| Dimension(L*W*H)(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2250 |
