Automatic Mineral Water Plant Cost

Automatic Mineral Water Plant Cost photo-1
Automatic Mineral Water Plant Cost photo-2
Automatic Mineral Water Plant Cost photo-3
Automatic Mineral Water Plant Cost photo-4
US$ 2,500 - 12,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Source:
Ground
Packaging:
Plastic Bottle
Certification:
ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port for Automatic Mineral Water Plant Cost
Delivery Detail:
Delivery time depends on order quantity.
Source Ground
Packaging Plastic Bottle
Certification ISO
Shelf Life 12 months
Volume (L) 0.5
Place of Origin Jiangsu, China
Brand Name JZ
Model Number CGF

Automatic Mineral Water Plant Cost

Automatic Mineral Water Plant Cost

P/roduct information Zhangjiagang Jiazhou Machinery Co., Ltd.

Product description Automatic Mineral Water Plant Cost

CGF24-24-8 Washing-filling-capping 3-in-1 monoblock for mineral water plant



Usage of mineral water plant: This machine is suitable for filling pure water, mineral water, middle temperature juice. PET bottle, plastic screw cap, 0.2L-2L all available. Easy to change spare parts for different bottle volume.



Main Feature

  1. This machine has a compact structure, easy to operate and highly automatic degree.
  2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
  3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
  4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
  5. Only by changing the star-wheel, can realize to fill the changed bottle shape.
  6. The machine adopts perfect overload protective device can ensure the operator and machine safe.
  7. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
  8. The electric components and pneumatic components are all introduced from world famous brand products.

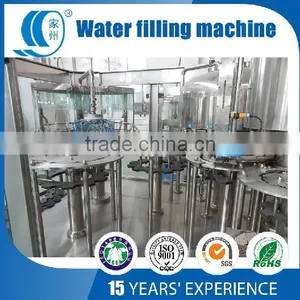

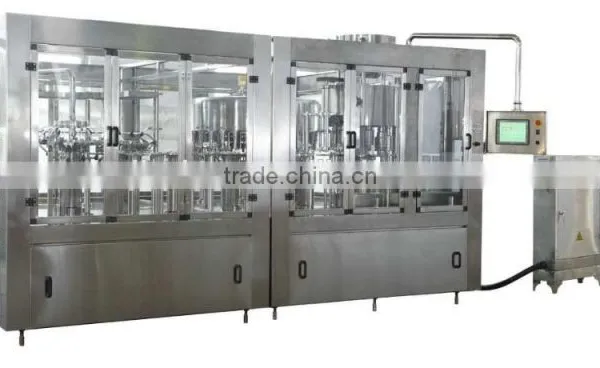

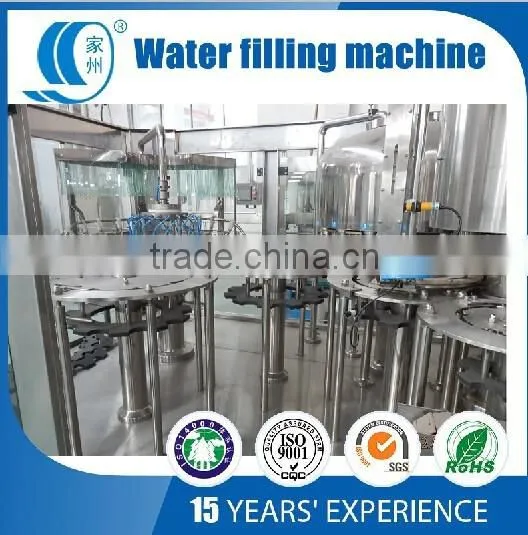

Product display Automatic Mineral Water Plant Cost
Automatic Mineral Water Plant Cost
Product Parameters Automatic Mineral Water Plant Cost
Model CGF
18186
CGF
24248
CGF
323212
CGF
404015
CGF
505018
CGF
606020
Head of washing, filling, sealing 18-18-6 24-24-8 32-32-8 40-40-10 50-50-18 60-60-20
Production capacity (bottle/hour)   3000-4000 5000-6000 7000-8000 9000-10000 11000-12000 15000
Suitable bottle diameter(mm) φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310 330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100 H=150-310  330-1500ml φ=50-100  H=150-310  330-1500ml
Filling precision ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm ≤±5mm
Motor power 3.84kw 4.1kw 5.6kw 7.5kw 9kw 11kw
Filling pressure ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Overall dimension     (mm) 2400×1900
×2300
2800×2100
×2300
4200×2300
×2300
5000×2800
×2400
5900×3100
×2400
6500×3500
×2400
Weight(Kg) 3000 4000 5000 7500 9000 11000
