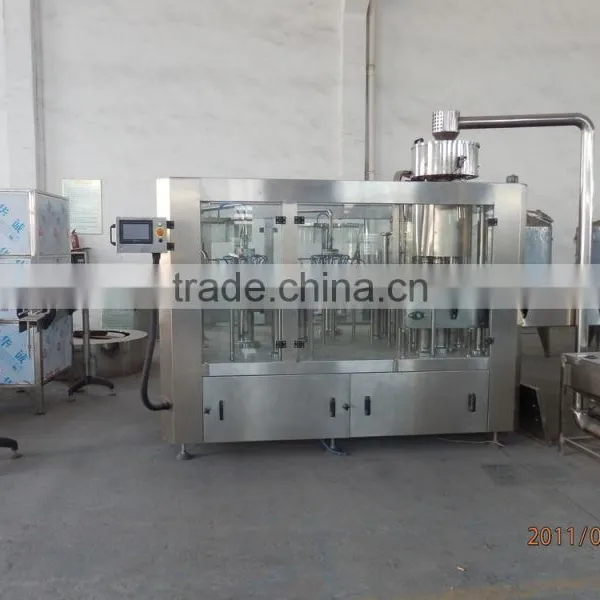

Automatic Mineral Water Filling Machine/Line
1. The machine concept of the CGF series was specifically designed for bottling in a hygienic environment;
2. Thanks to the free-standing transfer starwheels, there are much less exterior surfaces on the fillers than on conventional systems;
3. This innovative design has also the effect of the machine being very easily accessible for maintenance purposes and that it can be expanded at any time without conversion, for example with an additional cap feeder;
4. The Mitsubishi PLC system offers the ideal solution for conductive non-carbonated fill products, as the fill quantity is measured precisely by an inductive flow meter;
5. All filling process steps can be programmed easily and individually – adjusted to the product to be filled and to the container.
6. With all variants of the CGF series for non-carbonated products, the containers are conveyed through the machine by means of neck-handling. This, as well as fill quantity determination via inductive flow meter (IDM) guarantee high flexibility and short change-over times;
7. Depending on the pitch circle, a central or a tubular ring bowl is employed;
8. Product feed pipes connect the product tank with the filling valves. In each connecting pipe, there is an inductive flow meter which measures the quantity of the product flowing through the pipes via the product’s conductivity;
9. The filling process begins after centring of the container and is effected by the free-jet method;
10. In order to be able to cope with the different bottles and products to be filled, one or two filling speeds are available. Non-carbonated beverages are filled pressureless in multi-chamber operation;
11. Once the preprogrammed amount of liquid has flown into the container, a flow meter signal will trigger closing of the valve;
12. The fill parameters and programmes are stored in the controller making quick change-overs via touch-screen.
| Model | CGF16/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 | CGF40/40/12 | CGF50/50/15 | CGF60/60/15 | CGF70/70/18 |
| Washing heads | 16 | 18 | 24 | 32 | 40 | 50 | 60 | 70 |
| Filling valves | 12 | 18 | 24 | 32 | 40 | 50 | 60 | 70 |
| Capping heads | 6 | 6 | 8 | 10 | 12 | 15 | 15 | 18 |
| Capacity b/h (500ml) | 3500 | 7000 | 9000 | 14000 | 17000 | 20000 | 23000 | 26000 |
| Power (kw) | 2.2 | 3.5 | 4.5 | 6.0 | 7.5 | 9.5 | 11.2 | 15.0 |
| Dimension (m) | 2.1*1.5*2.2 | 2.45*1.8*2.2 | 2.8*2.2*2.3 | 3.5*2.2*2.3 | 3.6*2.7*2.85 | 5.3*3.2*2.85 | 5.6*4.5*2.85 | 6.0*4.8*2.85 |
| Weight (kg) | 2000 | 3500 | 5500 | 8000 | 10500 | 12000 | 14000 | 16000 |

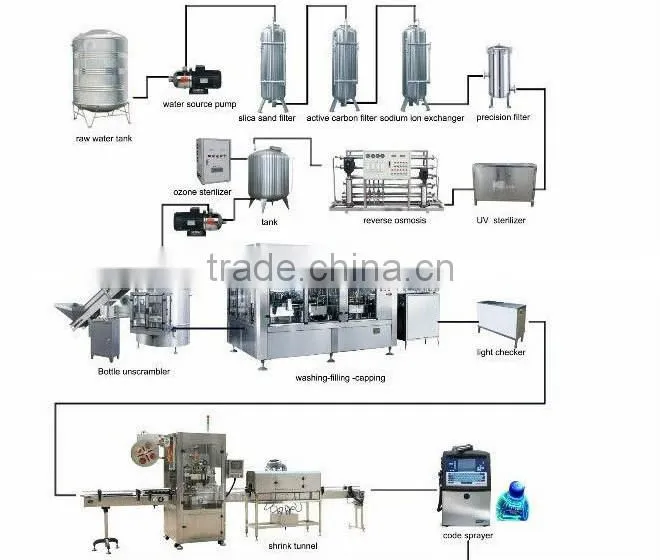

Flow chat for producing mineral water
1. stretch film packaging to save container space in a full container.
2. standard wooden case to protect machine's important part.

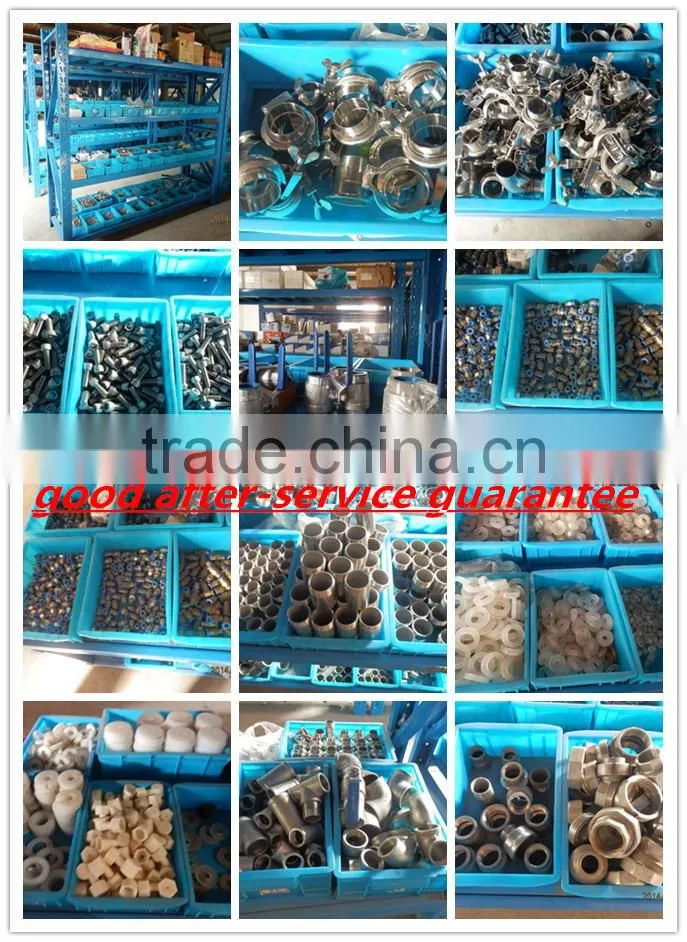

1. one year gurantee, free charge for spare parts in warranty.
2. engineer available to service overseas.
3. good quality competitive price. ISO9001:2008 and BV certificate
Zhangjiagang Jiazhou Machinery Co.,Ltd is a manufacturer in beverage machine field for about 15 years. She has her own factory which is founded in year of 1998. Her sale company Zhangjiagang Jiazhou Machinery Company Limited is set up in 2005. Jiazhou has entered into international trade in 2008, now is 7 years old on Alibaba.
Jiazhou has well cooperated with many clients in many countries and areas, such as Kenya, Nigeria, Malaysia, Vietnam, Bangladesh, Ghana, Madagascar, and Middle East Area. She also has popular market in China, received very good reputation.
Jiazhou shall make progress with clients and market. Her aim is to establish credibility and pursue specialized quality and service. Choose Jiazhou as business partner, you can get assured about the quality.
Q1. The material for making machine is SS210 or SS304? Can I ask for SS316 material?
A1: We never use SS210, material for beverage machines should be good.
Price for SS316 is much higher than SS304, if you could accept the price, it is ok surely.
Q2. How can I make sure the quality of the machine?
A2: We promise quality and have one-year guarantee, and you can come to inspect the machines.
Q3. My country has standards for the machines, they need to have ***certicate, do you have?
A3: We now have BV/ISO9001:2008 certificate. Please tell us your standard, we shall apply for that certificate.
If you are interested or any question, welcome to contact us.
