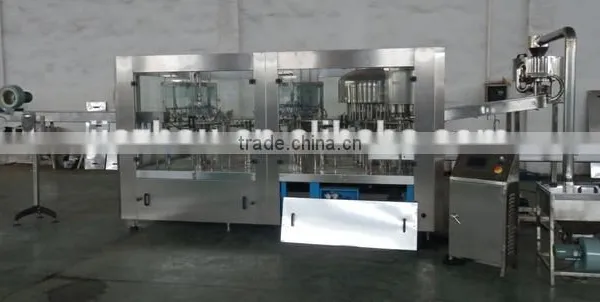

Automatic Monoblock 3-in-1 PET Bottle Filling Machine for Pure Water
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Price 3 in 1 Drinking Water Bottling EquipmentUS$ 5,000 - 15,000MOQ: 1 Unit -
Mineral Water Filling MachineNegotiableMOQ: 1 Set
-
4l Water Filling Machine, Mineral Water Filling Machine, Plastic PET Bottle Filling MachineNegotiableMOQ: 1 Unit
-
High Quality Pure Mineral Water Filling MachineUS$ 9,000 - 10,000MOQ: 1 Unit
-
Automatic 4L Water Bottle Washing Filling Capping MachineNegotiableMOQ: 1 Unit
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V50Hz
Power
6.57kw
Place of Origin
Jiangsu, China
Brand Name
Jiazhou Filling Machine
Model Number
CGF24-24-8
Weight
5500kg
Certification
CE,ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Automatic Bottle Filling Machine/Liquid Filling Machine

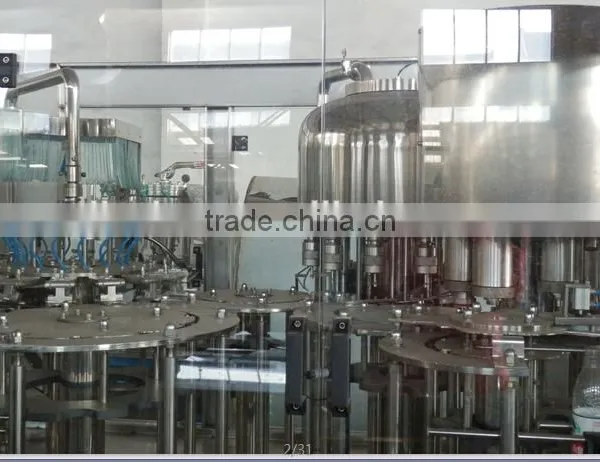

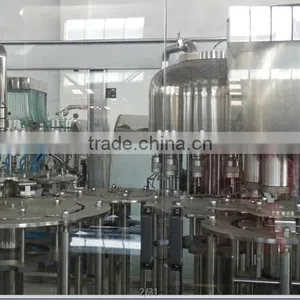

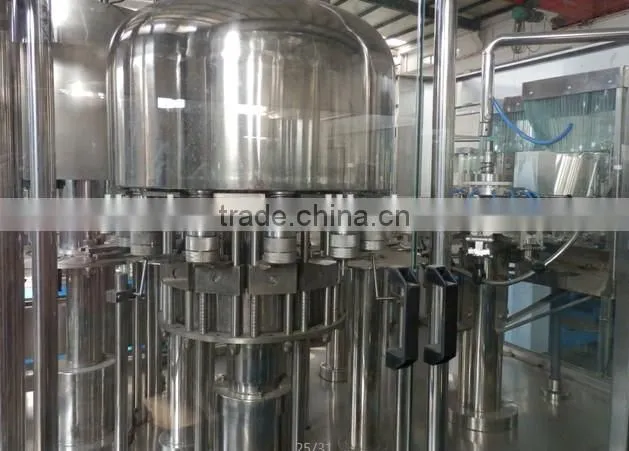

The main unit of automatic monoblock 3-in-1 PET bottle filling machine for pure water composes of bottom plate
frame, glass frame, bottle washing machine, bottling machine, capping machine, main motor drive, starwheel drive,
starwheel plate, cap arranging mechanism, lower cap tank, cap separating mechanism and electric control system.
The bottom plate frame is welded with rectangle pipe and steel plate, and the upper surface and sides are covered
with stainless steel plate with high strength and rigidity, light weight as the basic part for the entire equipment, the
bottom is installed with floor bolt for adjusting level and height; glass frame is used for closing the surrounding
environment of the main unit, the upper part applies transparent glass door for monitoring the equipment, glass
door is installes with protective device which can automatically stop the machine if it is activated. Then entire
machine features beautiful apperance, safe and reliable working.
Assistant parts mainly compose of back-flow can, bottle feeding flue and bottle discharging chain, additionally such
components as manual bottle feeding platform ( or bottle arranging machine), manual bottle feeding chain, automatic
cap feeding machine, lamp inspecting case, code spraying machine, labeling machine are also instaleed according to
client's requirements.
Technical parameter of liquid filling machine:
| Model | CGF14-12-5 | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-12 | CG60-60-15 |
| Capacity(bph) | 2000-3000 | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 |
| Filling precision | ±3 (liquid level) | |||||||
| Rinsing pressure | 0.3Mpa | |||||||
| Suitable bottle dimater | φ40-φ120mm | |||||||
| Suitable bottle height | 130-340mm | |||||||
| Suitable cap type | plastic screw cap, sport cap, aluminium cap etc | |||||||
| Motor power | 2.2kw | 2.2kw | 2.75kw | 3kw | 5.5kw | 7.5kw | 11kw | 15kw |
| Weight | 2300kg | 2500kg | 3500kg | 4500kg | 5500kg | 7500kg | 9800kg | 12800kg |
