A Professional Manufacturer 3-in-1 Unit Pure Water Filling Machine
(Affordable price, manufacturing all your need)
- bottle volume: 250ml~2000ml
- capacity: 2000~20000b/h
- SUS 304/316
- 1-year warranty for free
- one-stop solution can be offered

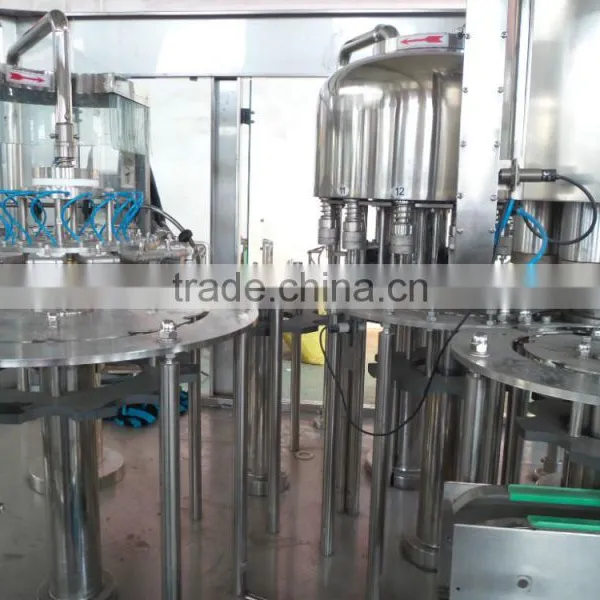

This drinking/pure water filling machine is designed for making all kinds of drinking/mineral/purified water in plastic bottle. The three functions of bottle rinser-filler-capper are composed in one unit of the machine which is in scientific and reasonable design, beautiful appearance, all ready functions, easy operation and maintenance.
utomatic CGF Bottled Miner Water Filling Machine
Bottled Miner Water Filling Machine's Main Technical Parameter
Model |
CGF16126 |
CGF18186 |
CGF24248 |
CGF323210 |
Heads of washing, filling, sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-10 |
Production capacity(b/h) |
2000-4000 |
4000-6000 |
8000-10000 |
12000-15000 |
Suitable bottle diameter |
Φ=40-80mm, H=150-280mm |
Φ=50-100mm, H=150-320mm |
Φ=50-100mm, H=150-320mm |
Φ=50-100mm, H=150-320mm |
Spraying pressure |
0.2-0.25Mpa |
0.2-0.25Mpa |
0.2-0.25Mpa ³ |
0.2-0.25Mpa |
Motor power |
4.23kw |
5.03kw |
6.57kw |
8.63kw |
Stainless steel |
SS304 |
SS304 |
SS304 |
SS304 |
Electric voltage |
380V50Hz |
380V50Hz |
380V50Hz |
380V50Hz |
PLC |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Frequency converters |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Touch screen |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Mitsubishi |
Circuit contactor |
Siemens |
Siemens |
Siemens |
Siemens |
Overall dimension mm |
2100*1500*2200 |
2450*1800*2200 |
2750*2180*2200 |
3500*2200*2250 |
Weight |
2000kg |
3500kg |
5500kg |
8000kg |
Main Configuration
1 |
Frequency inverter |
Japan Omron or Panasonic |
2 |
Main electric parts |
Siemens |
3 |
PLCD |
Japan Omron |
4 |
Photoelectric sensor |
Korea AUTONICS |
5 |
Approach / Proximity switch |
|
6 |
Fiber optic switch |
|
7 |
Contactor |
Siemens |
8 |
Touch screen |
Taiwan origin |
9 |
Main Motor |
Nanjing Kongda |
10 |
Speed Reducer |
Hangzhou Tianyu |
11 |
Pneumatics |
Taiwan Airtac |
12 |
Bottle feeding |
Air conveyor belt |
13 |
Rinsing |
Bottle-neck clamping type |
14 |
Capping |
Magnetic rotary type |

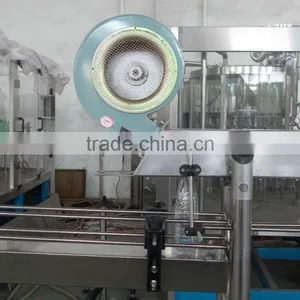

Bottled Miner Water Filling Machine's Washing

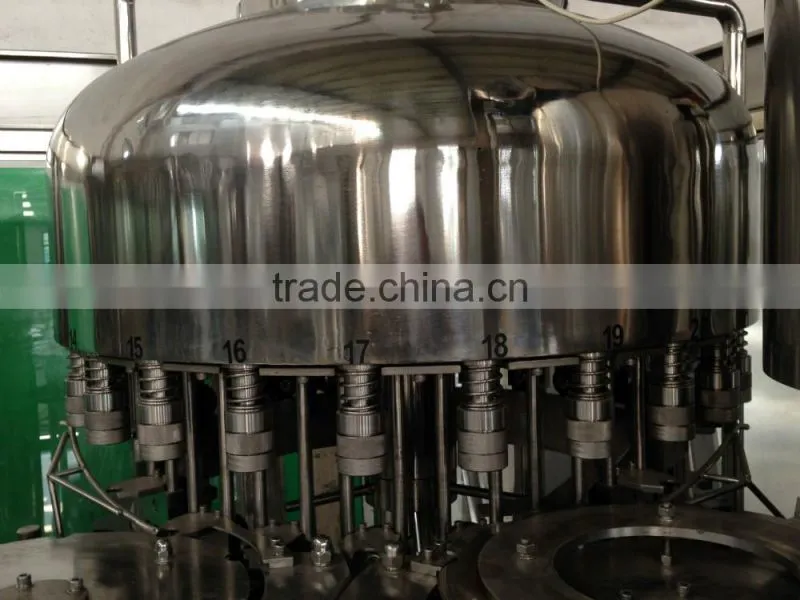

Bottled Miner Water Filling Machine's Filling

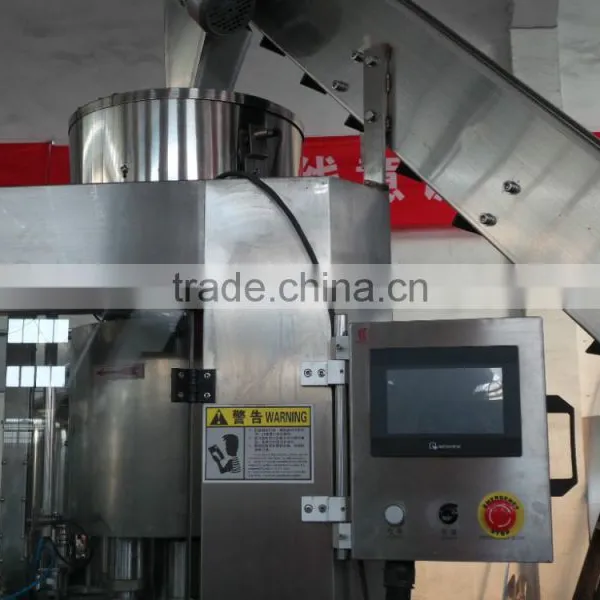

Bottled Miner Water Filling Machine's Capping
related production--ink jet printer
sleeves shrinking machine
PE film packing
WATER TREATMENT:
1. stretch film packaging to save container space
2. standard wooden case to protect machine's important part.
Company Information
Company Introduction
Zhangjiagang Jiazhou Machinery Co.,Ltd is a manufacturer in beverage machine field for about 15 years. She has her own factory which is founded in year of 1998. Her sale company Zhangjiagang Jiazhou Machinery Company Limited is set up in 2005. Jiazhou has entered into international trade in 2008, now is 7 years old on Alibaba.
Jiazhou has well cooperated with many clients in many countries and areas, such as Kenya, Nigeria, Malaysia, Vietnam, Bangladesh, Ghana, Madagascar, and Middle East Area. She also has popular market in China, received very good reputation.
Jiazhou shall make progress with clients and market. Her aim is to establish credibility and pursue specialized quality and service. Choose Jiazhou as business partner, you can get assured about the quality.
Our Service and Working Process
Pre- sales Phase: we have sales representative to communicate with our client to understand client needs and based on our experience, capacity to initiate the draft proposal for our client review. With the proposal review, analysis and improvement, we will finalize our proposal with our clients.
Production Phase: We have very strong filing machine business experience and downstream/upstream partnership. Under the criteria of customized quality, our good production scheduling will make sure our client filling machine will be delivered in time.
After-sales:We will documentation our client information for each sale and will continue effective communication even after deal. We will review the whole process to enhance our experience and make sure we can serve our client better and better.
Main market:
North America/South America/Southeast Asia/Africa/Mid East/South Asia
Main customers:
Mexico/ Brazil/ USA/ Egypt/Morocco/ Colombia/ Vietnam/Venezuela
FAQ
Q1. The material for making machine is SS210 or SS304? Can I ask for SS316 material?
A1: We never use SS210, material for beverage machines should be good.
Price for SS316 is much higher than SS304, if you could accept the price, it is ok surely.
Q2. How can I make sure the quality of the machine?
A2: We promise quality and have one-year guarantee, and you can come to inspect the machines.
Q3. My country has standards for the machines, they need to have ***certicate, do you have?
A3: We now have BV/ISO9001:2008 certificate. Please tell us your standard, we shall apply for that certificate.
