Full Automatic CGF Mineral Water Bottling Plant

Zhangjiagang Jiazhou Machinery Co., Ltd.
Full Automatic CGF Mineral Water Bottling Plant thumbnail-1
Full Automatic CGF Mineral Water Bottling Plant thumbnail-2
Full Automatic CGF Mineral Water Bottling Plant thumbnail-3
Full Automatic CGF Mineral Water Bottling Plant thumbnail-4

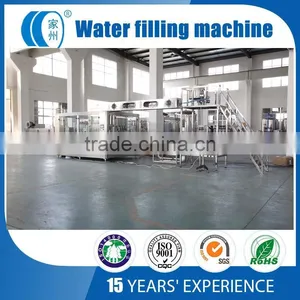

Full Automatic CGF Mineral Water Bottling Plant thumbnail-5
Full Automatic CGF Mineral Water Bottling Plant photo-1
Full Automatic CGF Mineral Water Bottling Plant photo-2

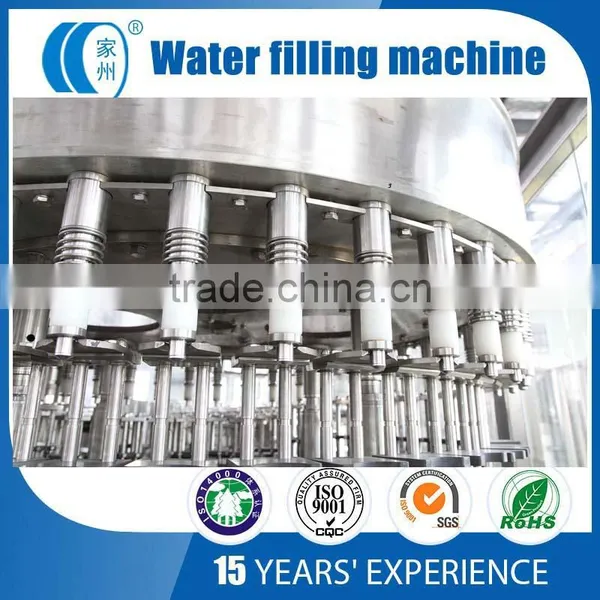

Full Automatic CGF Mineral Water Bottling Plant photo-3
Full Automatic CGF Mineral Water Bottling Plant photo-4

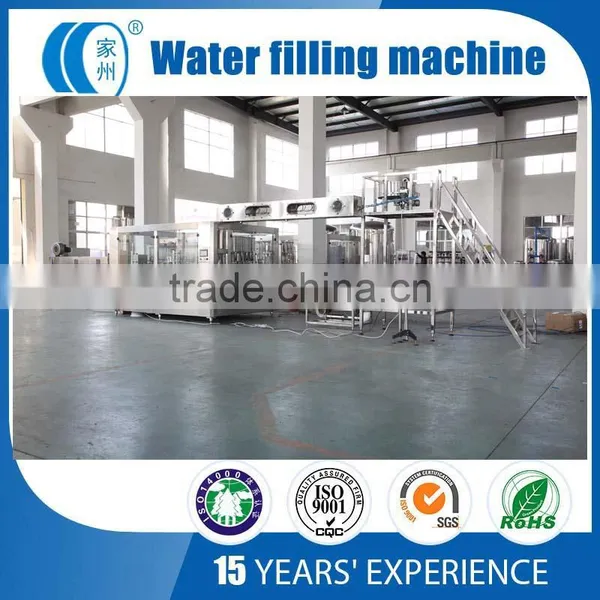

Full Automatic CGF Mineral Water Bottling Plant photo-5
US$ 5,000 - 8,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Water, Drinking Water
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for mineral water bottling plant
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Water, Drinking Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number CGF
Dimension(L*W*H) 2850*2700*2900mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionFull automatic CGF mineral water bottling plant

Characteristics

1,This drinking water filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping.

2,All the electrical elements use international famous brand products.

3,The parts which contact with the beverage are made of high quality stainless steel          SUS304.

4,It adopts human-machine interface touch-screen and PLC program control.

5,It has automatic trouble protected decice.

6,Our machine have the advantage of durable using,high stability,low failure,etc.

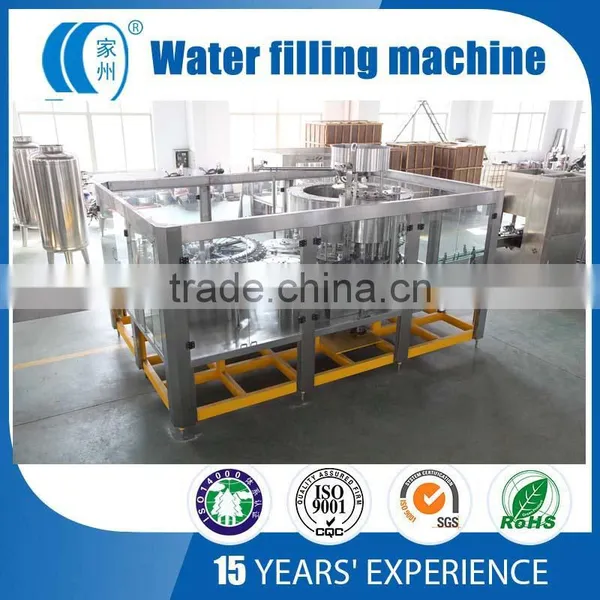

Product displayFull automatic CGF mineral water bottling plant



Full automatic CGF mineral water bottling plant



Full automatic CGF mineral water bottling plant



Product ParametersFull automatic CGF mineral water bottling plant
ModelCGF
18186		CGF
24248		CGF
323212		CGF
404015		CGF
505018		CGF
606020
Head of washing, filling, sealing18-18-624-24-832-32-840-40-1050-50-1860-60-20
Production capacity (bottle/hour)  3000-40005000-60007000-80009000-1000011000-1200015000
Suitable bottle diameter(mm)φ=50-100 H=150-310 330-1500mlφ=50-100 H=150-310 330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100  H=150-310  330-1500ml
Filling precision≤±5mm≤±5mm≤±5mm≤±5mm≤±5mm≤±5mm
Motor power3.84kw4.1kw5.6kw7.5kw9kw11kw
Filling pressure≤0.4≤0.4≤0.4≤0.4≤0.4≤0.4
Overall dimension     (mm)2400×1900
×2300		2800×2100
×2300		4200×2300
×2300		5000×2800
×2400		5900×3100
×2400		6500×3500
×2400
Weight(Kg)3000400050007500900011000
C/ompany informationZhangjiagang Jiazhou Machinery Co., Ltd.
Full automatic CGF mineral water bottling plant
O/ur advantageZhangjiagang Jiazhou Machinery Co., Ltd.
Full automatic CGF mineral water bottling plant
O/ur certificateZhangjiagang Jiazhou Machinery Co., Ltd.
Full automatic CGF mineral water bottling plant
N/etwork MarketingZhangjiagang Jiazhou Machinery Co., Ltd.
Full automatic CGF mineral water bottling plant
P/ackaging & shippingZhangjiagang Jiazhou Machinery Co., Ltd.
Full automatic CGF mineral water bottling plant
C/ontact usZhangjiagang Jiazhou Machinery Co., Ltd.
Full automatic CGF mineral water bottling plant
