Pure Water Filling Machine/Mineral Water Production Line

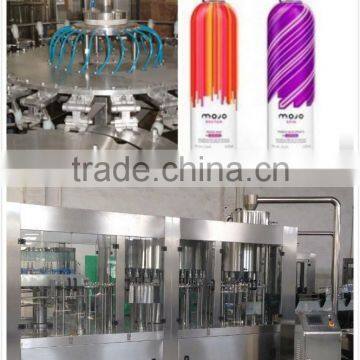

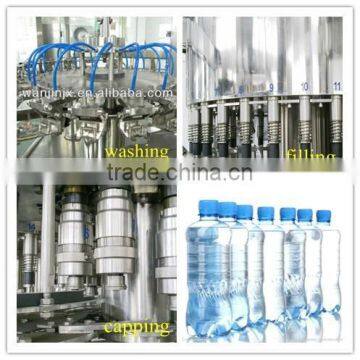

CGF Series Water Filling Machine
This series of equipment for PET bottled mineral water, purified water and other non-carbonated beverage production machine to achieve in a red bottle, filling and capping. Production 2000-24000 bottles / hour, to choose from. Introduced from Japan, Italy, the latest technology, the use of fixed surface pressure type filling principle, filling fast, stable liquid level control, no leaking. Spring-loaded pliers hand washing, empty tracks automatically with the 180 ° turn, inside and outside the two washing, rinsing efficiency. Screw lid with magnetic torque to achieve grasping cover, screw caps. Infinitely adjustable torque screw cap, with a constant torque rotary seal the plastic caps, without injury cover, seal tight and reliable.
Machine controlled by PLC computer program and human-machine interface touch screen button, with automatic control of liquid feed tank, no bottle no filling, no bottle no stamp and other functions, the use of variable speed drive, capacity figures adjusted conveniently
MoDel | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | |
Production Capacity | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5L) | |
Filling Precision | <=5mm(Liquid level) | ||||
Polyester Bottle Standard(mm) | Bottle Diameteφ40-φ80 | Bottle Diameter φ50-φ100 Height 150-320 | |||
Suitable Cap Shape | Plastic Screw Cap | ||||
Water Pressure of Washing Bottle(Mpa) | 0.18 | ||||
Water Consumption for Water Bottle(kg/h) | 800 | 1600 | 2500 | 3500 | |
Spraying Position | 5 | 5 | 6 | 12 | |
Dripping Bottle Position | 3 |
|
|
| |
Gas Source Pressure | Normal | ||||
Gas Consumption(m³/min) | 0.3 | 0.3 | 0.4 | 0.5 | |
Total Power(kw) | 4023 | 5.03 | 6.57 | 8.63 | |
Total Weight(kg) | 2000 | 3500 | 5500 | 8000 | |
Dimension(L*W*H)(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2250 | |
Pictures
