Small Capacity 8-8-3 Pure/mineral Water Filling Machine

Name: Small Capacity 8-8-3 Pure/mineral Water Filling Machine
Brand: JIAZHOU
SKU: 140470260
Availability: InStock

US$ 12,300 - 13,900 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Beverage

Packaging Type:

Bottles

Zhangjiagang Jiazhou Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Beverage

Packaging Type Bottles

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Power 1.5KW

Place of Origin Jiangsu, China

Brand Name JIAZHOU

Model Number CGF8-8-3

Dimension(L*W*H) 1880*1480*1800mm

Weight 2000kg

Certification ISO9001:9008

After-sales Service Provided Engineers available to service machinery overseas

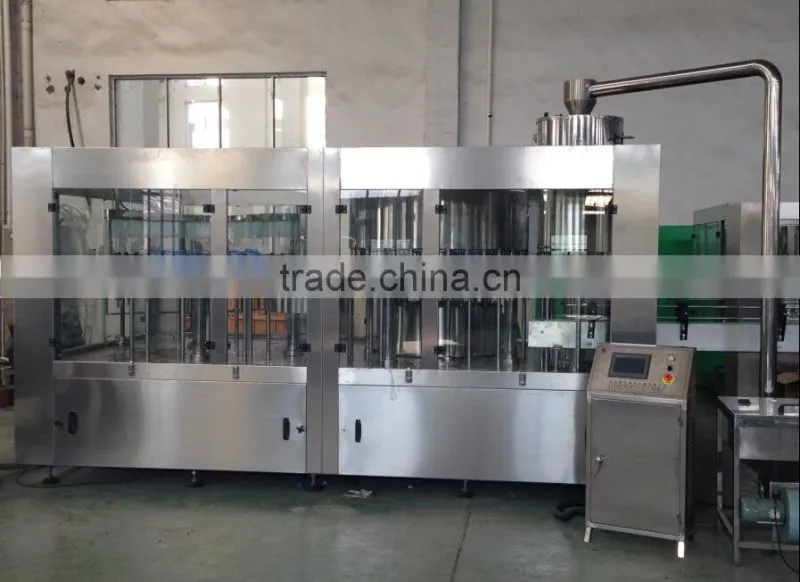

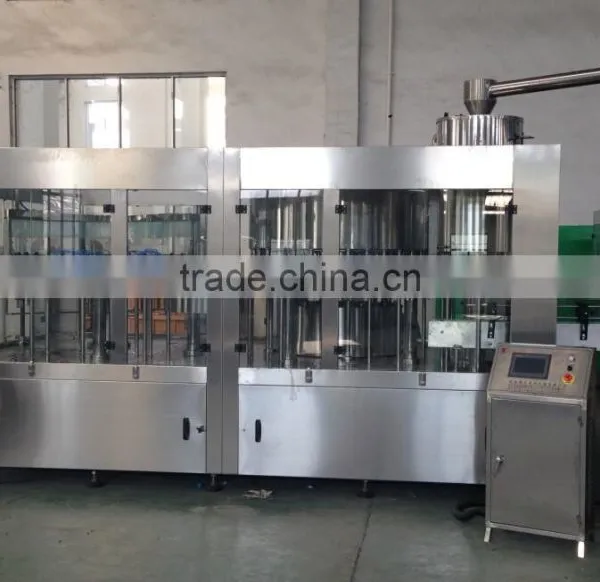

(8-8-3) Small capacity small water filling machine manufacturer

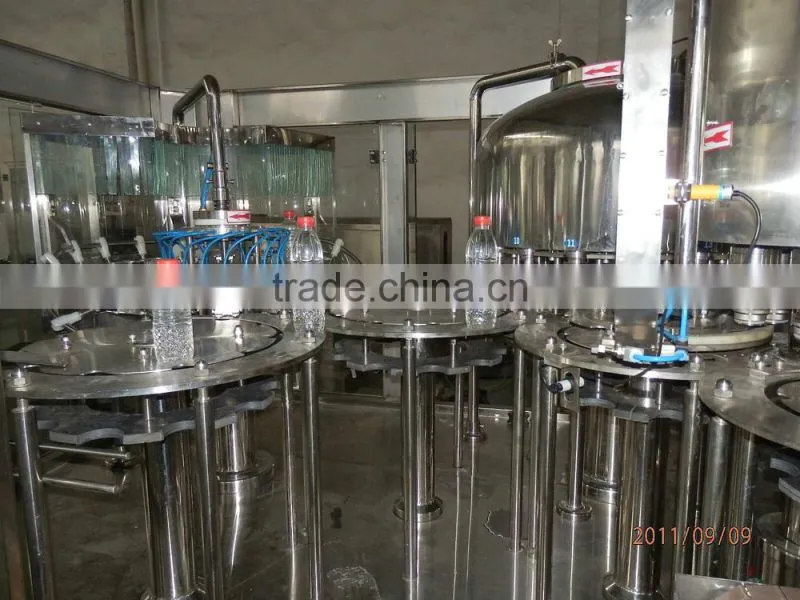

8-8-3 Washing-filling-capping body

Main Feature

This machine has a compact structure, easy to operate and highly automatic degree.
The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

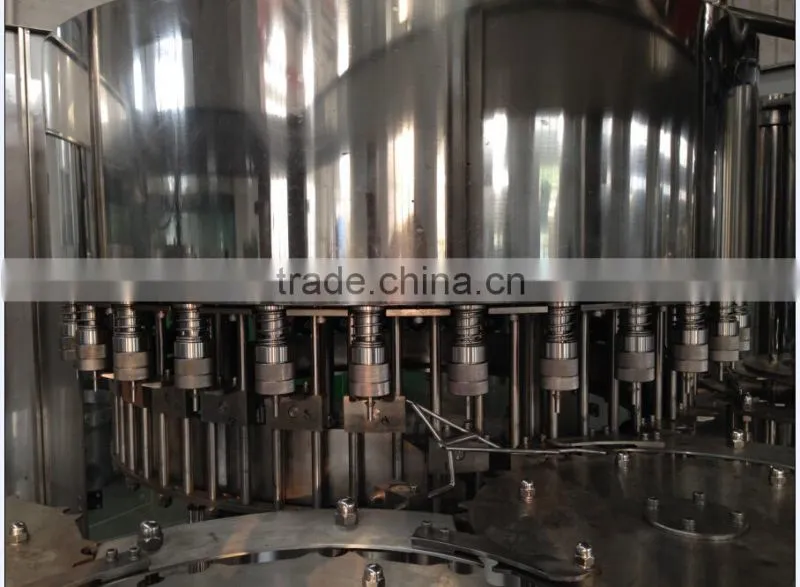

By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

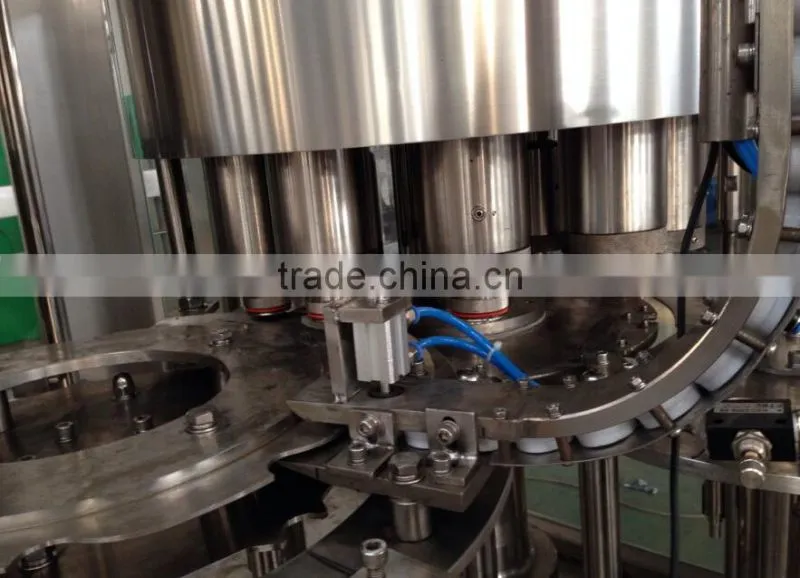

The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
Only by changing the star-wheel, can realize to fill the changed bottle shape.
The machine adopts perfect overload protective device can ensure the operator and machine safe.
The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
The electric components and pneumatic components are all introduced from world famous brand products.

8-8-3 main parameters

1.Electrical elements:
Pump	Nanfang pump
PLC	Mistubishi
Electromotor	Shanghai Motor
2.Suitable bottle:
Round or square plastic bottle
Bottle size
Bottle body:Φ90mm,	Bottle height H=150-320mm
Bottle neck diameter:Φ20-Φ35mm
Cap:	Plastic screw cap
Cap size:
DiameterΦ25-Φ35mm	Cap height=15-25mm
3.Main parameters:
Production capacity:	500ml,3000BPH
Position:	Washer8, filler8, capper3
Filling temperature:	Normal filling,gravity filling
Air pressure:	0.6mpa(self-prepare)
4.Motor powder:
Main motor: 1.5kw	Capper loading:0.09kw
Washing pump: 0.37kw	Filling pump: 0.37kw
Convoying motor:0.55kw	Air conveyor motor:0.75kw
