Automatic Mineral Water Bottling Manufacturing Line

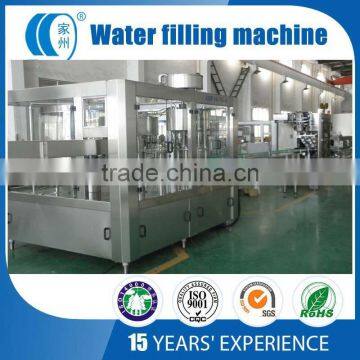

Automatic Mineral Water Bottling Manufacturing Line photo-1
Automatic Mineral Water Bottling Manufacturing Line photo-2
Automatic Mineral Water Bottling Manufacturing Line photo-3
Automatic Mineral Water Bottling Manufacturing Line photo-4
US$ 10,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Drinking Water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for Water bottling manufacturing line
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Other, Beverage, Drinking Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V
Power 11KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number CGF
Dimension(L*W*H) 5450*4500*2900
Weight 9T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionAutomatic Mineral Water bottling manufacturing line

Description

a. This pure water filling machine is mainly used for washing, filling and capping PET bottled non- carbonated drinks such as mineral water, pure water, stilled water, distilled water, etc.

b. Bottle washing, filling and capping are finished in one pure water machine.

c. The contact time is shorten between material and the outside, avoid the second time pollution

d. CGF series pure water filling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster .

e. The main pure water filling machine adopts advanced PLC control technology. The main electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.



Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.



Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.



Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.





Product displayAutomatic Mineral Water bottling manufacturing line

Automatic Mineral Water bottling manufacturing line



Automatic Mineral Water bottling manufacturing line



Automatic Mineral Water bottling manufacturing line

Product ParametersAutomatic Mineral Water bottling manufacturing line

Type

CGF16/12/6

CGF16/16/5

CGF18/18/6

CGF24/24/8

CGF32/32/10

CGF40/40/12

Washing heads

14

16

18

24

32

40

Filling heads

12

16

18

24

32

40

Capping heads

4

5

6

8

10

12

Capacity

Base on 500ml

4000bph

6000bph

8000bph

10000bph

14000bph

18000bph

 Automatic Mineral Water bottling manufacturing line
