Advanced Technology Pure Water Production Line Price

Zhangjiagang Jiazhou Machinery Co., Ltd.
Advanced Technology Pure Water Production Line Price thumbnail-1
Advanced Technology Pure Water Production Line Price thumbnail-2
Advanced Technology Pure Water Production Line Price thumbnail-3
Advanced Technology Pure Water Production Line Price photo-1
Advanced Technology Pure Water Production Line Price photo-2
Advanced Technology Pure Water Production Line Price photo-3
US$ 5,000 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Water, Drinking Water
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for water production line
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, Water, Drinking Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number CGF
Dimension(L*W*H) 2900*2850*3000mm
Weight 2.5T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionAdvanced technology pure water production line price

Please kindly send us your requirements:

1, bottle vlolume ( Our machines are suitable for 0.2~2.0L Bottle)

2, bottle materail (machines for glass bottle and plastic bottle are different)

3, how many bottles(based om 500ml bottle) per hour you want to produce ?

4, do you need this water filling machines only or whole water production line ( A to Z)

Specification of Automatic Bottle Water Filling Machine / Mineral Water Production Line

1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working. Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.
2. Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
3. No Bottle No Filling, no caps no capping, no caps auto stops. When bottle jam auto stop, machine accident auto stop. Open the window when machine running, machine auto paused. Heavy duty stainless steel filling pump & rinsing pump. Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.
4. Adopted first class component from Mitsubishi, OMRON, SIEMEN, With PLC, invertors control, touch screen, sensor, switch and other electric parts
5. Machine and cable arrangement designed according to CE standard and all safety standard.
Advantages for Automatic Bottle Water Machine / Mineral Water Production Line
A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens. (pure water filling machine)

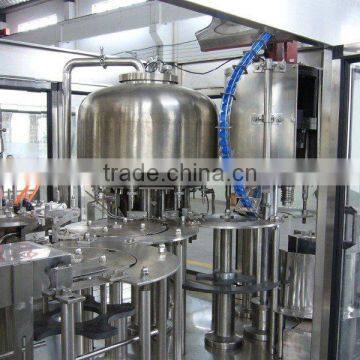

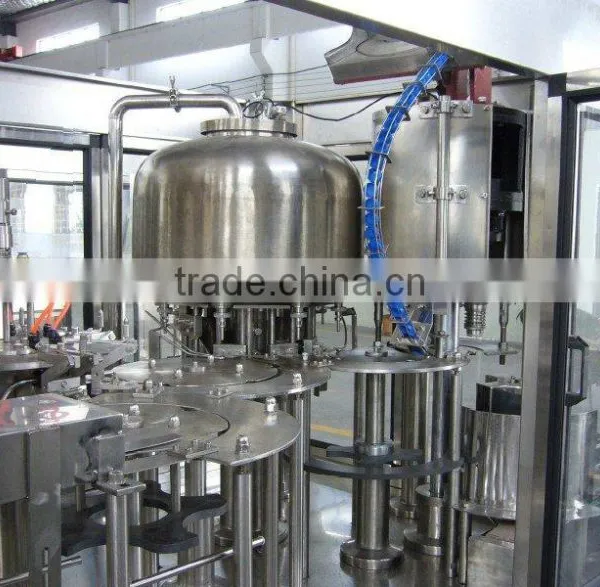

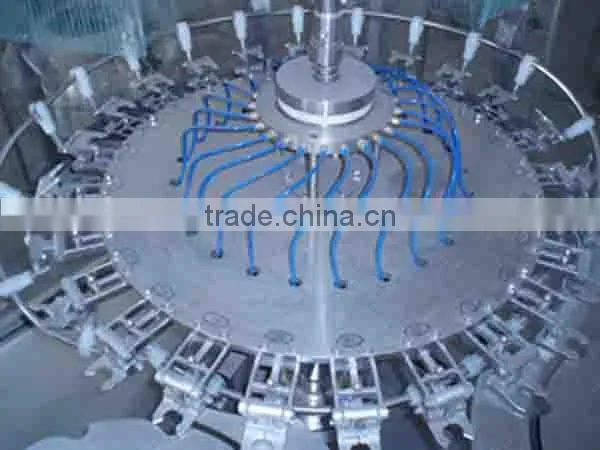

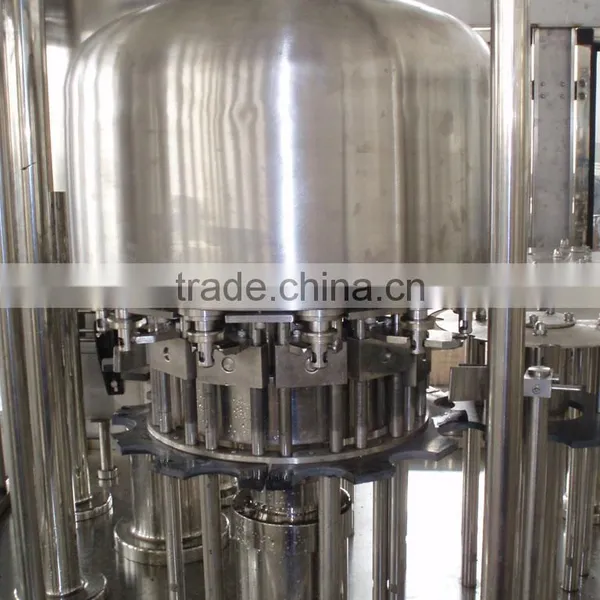

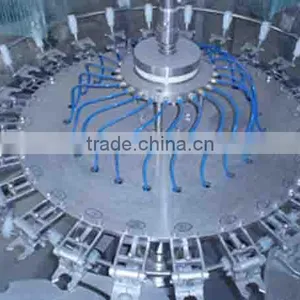

Product displayAdvanced technology pure water production line price

Advanced technology pure water production line price



Advanced technology pure water production line price



Advanced technology pure water production line price

Product ParametersAdvanced technology pure water production line price
ModelCGF
18186		CGF
24248		CGF
323212		CGF
404015		CGF
505018		CGF
606020
Head of washing, filling, sealing18-18-624-24-832-32-840-40-1050-50-1860-60-20
Production capacity (bottle/hour)  3000-40005000-60007000-80009000-1000011000-1200015000
Suitable bottle diameter(mm)φ=50-100 H=150-310 330-1500mlφ=50-100 H=150-310 330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100  H=150-310  330-1500ml
Filling precision≤±5mm≤±5mm≤±5mm≤±5mm≤±5mm≤±5mm
Motor power3.84kw4.1kw5.6kw7.5kw9kw11kw
Filling pressure≤0.4≤0.4≤0.4≤0.4≤0.4≤0.4
Overall dimension     (mm)2400×1900
×2300		2800×2100
×2300		4200×2300
×2300		5000×2800
×2400		5900×3100
×2400		6500×3500
×2400
Weight(Kg)3000400050007500900011000
C/ompany informationZhangjiagang Jiazhou Machinery Co., Ltd.
Advanced technology pure water production line price
O/ur advantageZhangjiagang Jiazhou Machinery Co., Ltd.
Advanced technology pure water production line price
O/ur certificateZhangjiagang Jiazhou Machinery Co., Ltd.
Advanced technology pure water production line price
N/etwork MarketingZhangjiagang Jiazhou Machinery Co., Ltd.
Advanced technology pure water production line price
P/ackaging & shippingZhangjiagang Jiazhou Machinery Co., Ltd.
Advanced technology pure water production line price
C/ontact usZhangjiagang Jiazhou Machinery Co., Ltd.
Advanced technology pure water production line price
