New Type of 0.10mm Edm Brass Wire

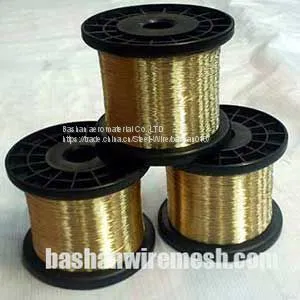

New Type of 0.10mm Edm Brass Wire thumbnail-1
New Type of 0.10mm Edm Brass Wire thumbnail-2
New Type of 0.10mm Edm Brass Wire thumbnail-3
New Type of 0.10mm Edm Brass Wire thumbnail-4
New Type of 0.10mm Edm Brass Wire thumbnail-5
New Type of 0.10mm Edm Brass Wire photo-1
New Type of 0.10mm Edm Brass Wire photo-2

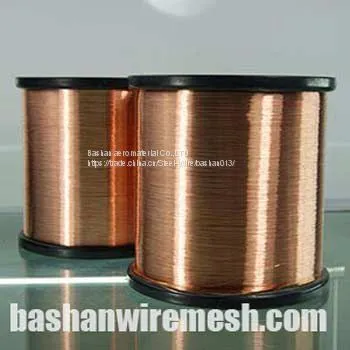

New Type of 0.10mm Edm Brass Wire photo-3
New Type of 0.10mm Edm Brass Wire photo-4

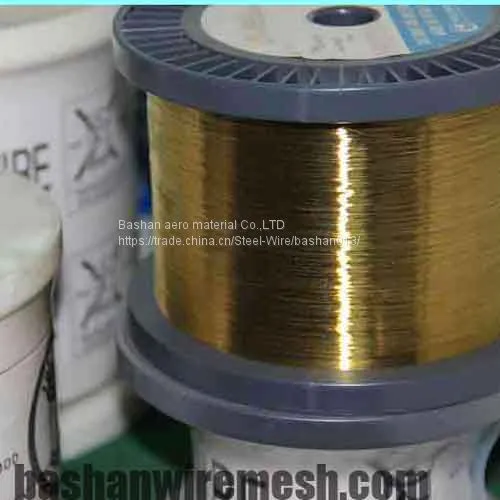

New Type of 0.10mm Edm Brass Wire photo-5
US$ 7 - 7.1 MOQ: 200 Kilograms
Key Specifications
Get Latest Price
Brand Name:
bashan
Place of Origin:
China
Model Number:
0.10mm
Contact Supplier Request Quote Chat Now
Bashan Aero Material Co.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name bashan
Place of Origin China
Model Number 0.10mm
Type Brass Wire
Application cutting mould as electrode
Ultimate Strength (≥ MPa) 980
Alloy Or Not Is Alloy
Grade H80
Wire Gauge 0.30mm,0.25mm,0.20mm,0.15mm,
Cu (Min) 62%
Product Description

New type of 0.10mm edm brass wire

1.Grade: brass

2.Model Number:0.10mm

3. Alloy Or Not:Is Alloy

4. Place of Origin:Henan, China (Mainland)

5.Brand Name:Bashan

Description

New type of 0.10mm edm brass wire

Product Name
New type of 0.10mm edm brass wire
Material
Cu60%,Zn40% or Cu63%,Zn37
 Wire diameter
0.30mm, 0.25mm, 0.20mm,0.15mm,0.10mm
Weight/Spool
3kgs/5kgs/7kgs/8kgs/15kgs/20
Tensile strength:
1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2
Packing
Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
Used
cutting mould as electrod

Specification

New type of 0.10mm edm brass wire

Condition
Diameter(mm)
Tolerance(mm)
Tensile Strength (N/mm²)
Type of Spool
(Standard Weight)
       Hard
0.10
±0.001
≥980
DIN125(3kg,3.5kg
0.15
±0.001
≥980
0.20
±0.001
≥980
DIN125(3kg,3.5kg)

p5(5kg)

DIN160(7kg,8kg)

DIN200(15kg,16kg)
0.25
±0.001
≥980
0.30
±0.001
≥980
    Semi-hard
0.25
±0.001
480~520
0.30
±0.001
         Soft
0.25
±0.001
380~420
0.30
±0.001

Exhibition

Features

New type of 0.10mm edm brass wire

1.High dimentional accurac
2.Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.We test each spool for curling and torsion and pride ourselves on the stable automatic wire threading performance or our product.
5.Stable mechanical properties

6..Ultra-smooth surface

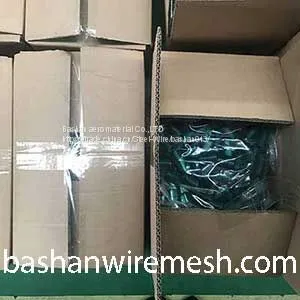

Packing & Delivery


New type of 0.10mm edm brass wire

Excellent quality packaging is part of the product, three protection, BS maintains excellent product quality.
1.A heavy paper dust protection: endometrial advantage.
2.Double protection: seal for PVC precision plastic mold.
3.Three protection: professional shockproof corrugated box

Packing Details
*Packing: Vacuum packing, sealed with PVC cellophane, moisture proof, quakeproof, and corrosion resistance.
Processing & Delivery Time

* Common products in one week.

* Special products according to Contract.

MOQ

*  100 Kilogram/Kilograms

* Payment terms:  T/T, L/C , Paypal,        West Union etc.
*  Trade term:  EXW/ FOB/ CIF.

New type of 0.10mm edm brass wire

Material
Type
D1
D2
d
W1
W2
Spool/box
Spool W (k)
Volum/box
ABS
DIN125
125
80
20
125
100
4
0.2
0.254X0.254X0.127=0.008M3
P3
130
80
20
110
90
4
0.2
0.264X0.224X0.132=0.008M3
P5
160
90
20
114
90
4
0.33
0.324X0.232X0.18=0.014M3
DIN160
160
100
22
160
128
2
0.35
0.324X0.162X0.18=0.009M3
DIN200
200
125
22
200
160
1
0.66

0.22X0.22X0.22=0.01M3


Product Tags: edm brass wire , brass wire
