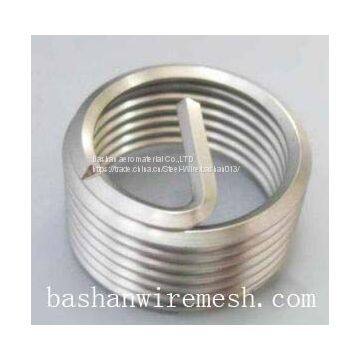

Silver plated M3X0.5 wire thread insert

Name: Silver plated M3X0.5 wire thread insert
Brand: bashan
Price: USD $0.04 - 0.05 / Piece

FOB Price

USD $0.04 - $0.05 / Piece

500 Pieces(Min.Order)

Supply Ability 3000000 Piece / Pieces per Month
Port Tianjing Qingdao
Payment Terms:T/T L/C Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

bashan

Place of Origin:

China

Model Number:

M3X0.5

Product Description

Description

Silver plated M3X0.5 wire thread insert

Silver plated M3X0.5 wire thread insert
1. Grade:ss304 2. Size:M12*1
3. Length: 1D=12mm, 1.5D=18mm, 2D=24mm,
4. Standard: MERTRIC/UNC/UNF/
5.Place of Origin: Henan, China (Mainland)
6.Brand Name: Bashan

1.Free run type: M2X0.4~M48X1.5mm.
2.Screw-locking type: M2.5X0.45~M24X2mm.

Product Name	Silver plated M3X0.5 wire thread insert
Material	stainless steel 304
Length	1D=3mm, 1.5D=4.5mm, 2D=6mm, 2.5D=7.5,3D=9mn
Color	original/red/black/
Standard	MERTRIC/UNC/UNF/
Circle	4.2K, 6.8K, 9.4K,12K,14.6K
Coating	plates the titanium/cadmium/galvanization
Weight/1000pcs	0.07KG, 0.1KG, 0.14KG,0.17KG,0.21KG
Type	free-running insert
Outside diameter	3.8-4
Drill diameter	3.1mm
install tool size	size:M3X0.5
Break tool size	size:M3X0.5
Unload tool size	size:M3X0.5
Used	building industry machinery, construcuion,military

Specification

Silver plated M3X0.5 wire thread insert

Specification d×p		Nominal length L×d		W	Dz		d0
d	p	×d	L1		min	max
M3	0.5	1d	3.00	3.9	3.80	4.00	3.1
		1.5d	4.50	6.3
		2d	6.00	8.7
		2.5d	7.50	11.1
		3d	9.00	13.5

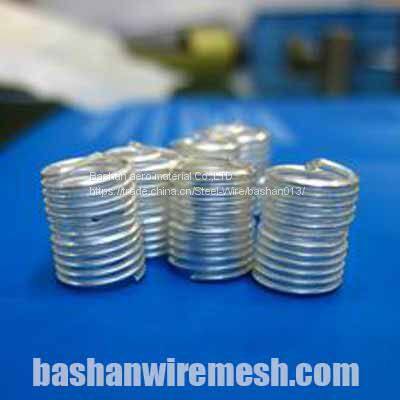

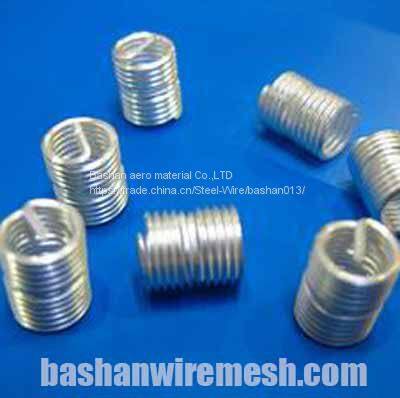

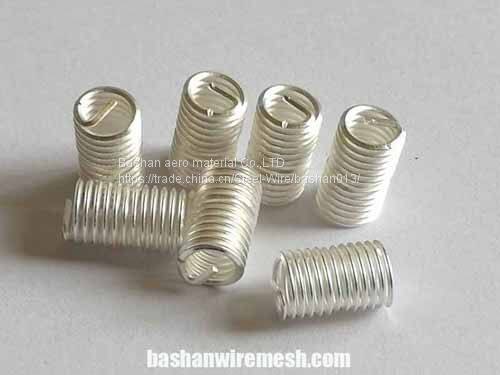

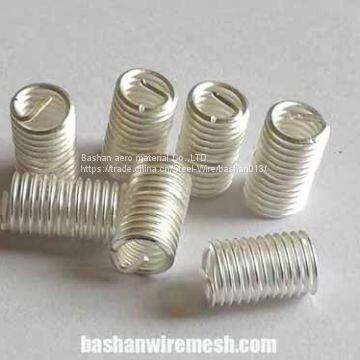

Product show

Having more than 50 years of experiences in this field, and with background of military technology.

We can supply both Inch system and Metric system insert to meet customers' need, according to DIN standard.

There are two forms: free-run type and screw-locking type.

Installation Steps

Stainless Steel Free Running screw thread coil

1.drilling 2.tapping 3.put thread in wrench 4.installing

5.breaking 6.finished 7.putting bolt in

Produce progress

1.Rolling wire 2.Winding 3.clean 4.quality control 5.packing

Packing Details

* Inner: Plastic bag

Out: Carton
* Pallet / Wooden Crate.

Delivery

Stainless Steel Free Running screw thread coil

Company

Xinxiang Bashan Aero Material Co., Ltd.

In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

Contact

Contact :Jessy Duan

XINXIANG BASHAN AERO MATERIAL CO.,LTD

Tel:+86 373 3091998

Fax:+86 373 3091996

Mob:(whatsup):+86 15737343772

Mail: bashan@vip.126.com

Skype:1351666536@qq.com

Web:

Address:Daoqing Road No.5,Xinxiang City,Henan Province,China.
