HOT Sale M36X3 Heli/coil Type Screw Thread Insert

Bashan Aero Material Co.,LTD

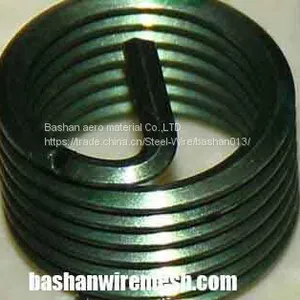

HOT Sale M36X3 Heli/coil Type Screw Thread Insert thumbnail-1

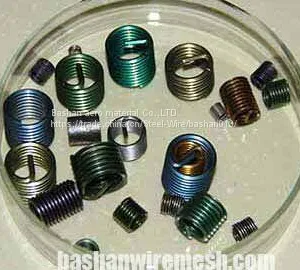

HOT Sale M36X3 Heli/coil Type Screw Thread Insert thumbnail-2
HOT Sale M36X3 Heli/coil Type Screw Thread Insert thumbnail-3

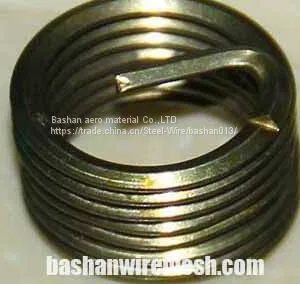

HOT Sale M36X3 Heli/coil Type Screw Thread Insert thumbnail-4
HOT Sale M36X3 Heli/coil Type Screw Thread Insert photo-1
HOT Sale M36X3 Heli/coil Type Screw Thread Insert photo-2

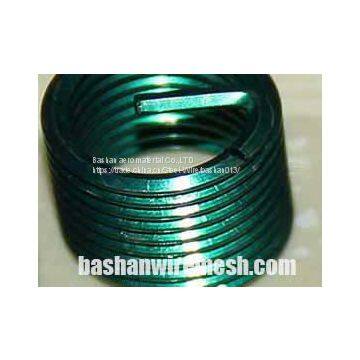

HOT Sale M36X3 Heli/coil Type Screw Thread Insert photo-3
HOT Sale M36X3 Heli/coil Type Screw Thread Insert photo-4
US$ 0.04 - 0.8 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
bashan
Place of Origin:
China
Model Number:
M36X3
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name bashan
Place of Origin China
Model Number M36X3
Material:Stainless SteelCoating:Plates The Titanium/cadmium/galvanization
Color:Red,green, Yellow,originalModel Number:M36X3
Used:Building, Automobile Industry, Furniture, Sanitary, Electronics, Traffic.Thread:Coarse, Fine
Type:Free Running InsertStandard:Metric
Place Of Origin:Henan, China (Mainland)Brand Name:Bashan


Description
HOT sale M36X3 heli/coil type screw thread insert

HOT sale M36*3 strip feed reel thread insert

1.Size: M36*3
2.Place of Origin:Henan, China (Mainland)
3.Brand Name:bashan
4. Certification: Passed ISO9001:2008 quality certificate

Passed ISO/TS16949:2009 certificate
Passed GJB9001A-2001 military quality certificate.

5. Length: 0.5D=18mm, 0.75D=27mm, 1D=36mm, 1.5D=54mm

6. Standard: MERTRIC/UNC/UNF/

Description
HOT sale M36*3 strip feed reel thread insert
Product NameHOT sale M36*3 strip feed reel thread insert
Materialstainless steel 304
Length0.75D=12mm, 1D=16mm, 1.5D=24mm,2D=32mm
Colororiginal/red/black/purple/gloden
StandardMERTRIC/UNC/UNF/
Circle4.4K, 7.1K, 9.9K, 15.4K
Coatingplates the titanium/cadmium/galvanization
Weight/1000pcs29.72KG, 44.59KG, 59.45KG, 89.17KG
Typefree-running insert,screw-lock insert
Outside diameter42.1—42.6
Drill diameter36.8mm
install tool sizeSize:M36*3
Break tool sizeSize:M36*3
Unload tool sizeSize:M36*3
Usedbuilding industry machinery, construcuion


Specification1.Free run type: M2X0.4~M60X4mm.
2.Screw-locking type: M2X0.4~M60X4mm.
Specification
d×p
Nominal length
L×d
W
Dz
d0
dp×dL1minmax



36



3		0.5d18.04.4



42.10



42.60



36.8
0.75d27.007.2
1d36.09.9
1.5d54.015.3
2d72.020.5

MaterialGradeTemperature Under UsedTensile Strength Under Room TemperatureSurface

Stainless Steel
0Cr18Ni9425°C
short time
315°C
long time


>1400Mpa		No coated
Coat lubricant on the surface
Coat Cr
Coat Ag
1Cr18Ni9Ti
1Cr18Ni9


Alloy

Inconelx750
Nimonic90

750°C
short time
550°C
long time


>1400Mpa


No coated
Coat Ag


Products show
HOT sale M36X3 heli/coil type screw thread insertHOT sale M36X3 heli/coil type screw thread insert
HOT sale M36X3 heli/coil type screw thread insert
Features:
1.Abrasion resistant
2.Corrosion resistant
3.Heat-stable
4.Saving material
5.Increasing the bearing capacity and fatigue resistant of the insert connecting part
Installation tool


HOT sale M36X3 heli/coil type screw thread insert

Installation Steps
1.drilling 2.tapping 3.put thread in wrench 4.installing
5.breaking 6.finished 7.putting bolt in
HOT sale M36X3 heli/coil type screw thread insert

Packaging & Delivery

Packaging Details:
HOT sale M36X3 heli/coil type screw thread insert
inner: plastic bag
outer: paper box or wooden case,depending on the weight
Delivery Detail:
HOT sale M36X3 heli/coil type screw thread insert
according to the customer's requirement


Our Certifications

1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93


 Our company
HOT sale M36X3 heli/coil type screw thread insert

Xinxiang Bashan Aero Material Co., Ltd., affiliated to China Aviation Industry Corporation (AVIC), is a specialized manufacturer with a history more than 62 years. Our main products are metal wire, wire cloth, test sieve, filter element, filter, steel thread insert, steel reed, metal sintered fiber, edm brass wire, screener and other related products. Our company has independent import and export rights. With plant area covering about 50,000 square meters, we employ more than 200 managerial and technical personnels and 800 skilled workers. Since 1986, we have been exporting wire mesh for buyers in USA. Meanwhile, we carry out a strict quality management system in accordance with ISO9001,TS16949,ISO 14001. Bashan has a wide range of products including all kinds of metal wire, wire cloth, filter element, thread insert, screener, etc. There are over hundreds specifications of wire mesh we can supply and we can offer almost everything which is related with wire and mesh
