Factory Price Self Tapping Thread Insert /screw Thread Coils for Aluminum

Factory Price Self Tapping Thread Insert /screw Thread Coils for Aluminum thumbnail-1
Factory Price Self Tapping Thread Insert /screw Thread Coils for Aluminum thumbnail-2
Factory Price Self Tapping Thread Insert /screw Thread Coils for Aluminum thumbnail-3
Factory Price Self Tapping Thread Insert /screw Thread Coils for Aluminum photo-1

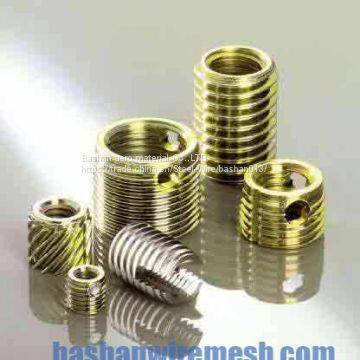

Factory Price Self Tapping Thread Insert /screw Thread Coils for Aluminum photo-2

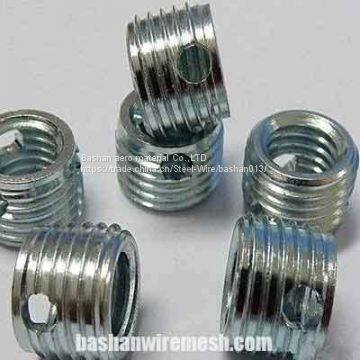

Factory Price Self Tapping Thread Insert /screw Thread Coils for Aluminum photo-3
US$ 0.5 - 0.8 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
bashan
Place of Origin:
China
Model Number:
M4X0.7
Contact Supplier Request Quote Chat Now
Bashan Aero Material Co.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjing Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name bashan
Place of Origin China
Model Number M4X0.7
Material: Stainless Steel Coating: Ag,Cr
Color: Red,green, Yellow,original Model Number: M4X0.7
Used: Building, Automobile Industry, Furniture, Sanitary, Electronics, Traffic. Thread: Coarse, Fine
Type: Free Running Insert Standard: Metric
Place Of Origin: Henan, China (Mainland) Brand Name: Bashan


Description

Factory price self tapping thread insert /screw thread coils for aluminum

Product Description

Factory price self tapping thread insert for aluminum

1.Size: M4x0.7

2.Standard:metric

3.Place of Origin:Henan, China (Mainland)

4.Brand Name:Bashan

Specification
Factory price self tapping thread insert for aluminum
Specification
d×p
Nominal length
L×d
W
 Dz
d0
d p ×d L1 min max



8



1.25
 1d 8.00 4.7



9.85



10.10



8.3
1.5d 12.00 7.4
2d 16.00 10.6
2.5d 20.00 13.5
3d 24.00 16.4
Product Name Factory price self tapping thread insert for aluminum
Material stainless steel,carbon steel
Color original,red,green,yellow
Coated Ag,Cr
Standard metric
Type grooved thread insert
Used widely used in the automobile industry, car industry, shipbuilding industry, household appliances, construction machinery And office machinery, electronic products.

parameter

Factory price self tapping thread insert for aluminum

Type 302 (grooved) length(mm) External thread The reference hole diameter (mm) Drilling depth

(mm)
Plastic cement Aluminium alloy cast iron
M2-0.4 6 M4.5-0.5 4.0-4.1 4.1-4.2 4.2-4.3 8
M2.5-0.45 6 M4.5-0.5 4.0-4.1 4.1-4.2 4.2-4.3 8
M3-0.5 6 M5-0.5 4.5-4.6 4.6-4.7 4.7-4.8 8
M3.5-0.6 8 M6-0.75 5.3-5.4 5.5-5.6 5.6-5.7 10
M4-0.7 8 M6.5-0.75 5.8-5.9 6.0-6.1 6.1-6.2 10
M5-0.8 10 M8-1.0 7.1-7.2 7.3-7.5 7.5-7.6 13
M6-1.0 12 M9-1.0 8.1-8.2 8.3-8.5 8.5-8.6 15
M6-1.0 14 M10-1.5 9.0-9.2 9.2-9.3 9.3-9.4 17
M8-1.25 15 M12-1.5 10.8-11.0 11-11.2 11.2-11.4 18

Material Grade Temperature Under Used Tensile Strength Under Room Temperature Surface

Stainless Steel
 0Cr18Ni9 425°C
short time
315°C
long time


>1400Mpa		 No coated
Coat lubricant on the surface
Coat Cr
Coat Ag
1Cr18Ni9Ti
1Cr18Ni9


Alloy

Inconelx750
Nimonic90

750°C
short time
550°C
long time


>1400Mpa


No coated
Coat Ag

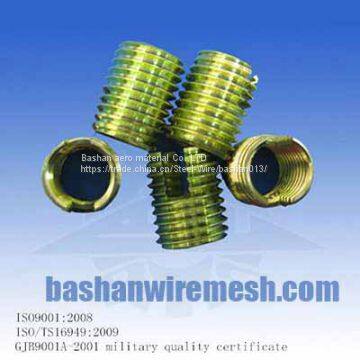

Products show
Factory price self tapping thread insert /screw thread coils for aluminum
Factory price self tapping thread insert for aluminum
Features:
1.Abrasion resistant
2.Corrosion resistant
3.Heat-stable
4.Saving material
5.Increasing the bearing capacity and fatigue resistant of the insert connecting part

Factory price self tapping thread insert /screw thread coils for aluminum
Factory price self tapping thread insert for aluminum
Self tapping thread insert is also called tapping braces, is a new type of strengthening fastener thread strength, self tapping screw sleeve there are internal and external thread.


Installation tool

Factory price self tapping thread insert for aluminum

Factory price self tapping thread insert /screw thread coils for aluminum



Installation Steps

Factory price self tapping thread insert for aluminum

1.drilling 2.tapping 3.put thread in wrench 4.installing

5.breaking 6.finished 7.putting bolt in

Factory price self tapping thread insert /screw thread coils for aluminum

Packaging & Delivery

Packaging Details:
Factory price self tapping thread insert /screw thread coils for aluminum
inner: plastic bag
outer: paper box or wooden case,depending on the weight
Delivery Detail:
Factory price self tapping thread insert /screw thread coils for aluminum
according to the customer's requirement


Our Certifications

1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93


 Our company
Factory price self tapping thread insert /screw thread coils for aluminum

Xinxiang Bashan Aero Material Co., Ltd., affiliated to China Aviation Industry Corporation (AVIC), is a specialized manufacturer with a history more than 62 years. Our main products are metal wire, wire cloth, test sieve, filter element, filter, steel thread insert, steel reed, metal sintered fiber, edm brass wire, screener and other related products. Our company has independent import and export rights. With plant area covering about 50,000 square meters, we employ more than 200 managerial and technical personnels and 800 skilled workers. Since 1986, we have been exporting wire mesh for buyers in USA. Meanwhile, we carry out a strict quality management system in accordance with ISO9001,TS16949,ISO 14001. Bashan has a wide range of products including all kinds of metal wire, wire cloth, filter element, thread insert, screener, etc. There are over hundreds specifications of wire mesh we can supply and we can offer almost everything which is related with wire and mesh
